*세라믹 파사드 3d 프린팅 Studio RAP Designs a 3-D Printed Ceramic Facade that Echoes Amsterdam's Architectural Heritage

Studio RAP Designs a 3-D Printed Ceramic Facade that Echoes Amsterdam's Architectural Heritage

역사적인 건축물과 첨단 건축 기술이 조화롭게 공존할 수 있을지에 대한 의구심이 있었다면 네덜란드 건축사무소 스튜디오 RAP의 이 프로젝트가 그 의구심을 말끔히 해소해 줍니다. 이 스튜디오는 맞춤형 3D 프린팅 기술을 사용하여 암스테르담의 상징적인 고급 쇼핑 거리인 후프트스트라트에 있는 부티크의 외관을 전통과 혁신이 완벽하게 조화를 이루는 건축적 랜드마크로 탈바꿈시켰습니다.

실루엣은 단순하지만 디테일은 대담하게 조각적인 이 파사드는 의류 뜨개질 공예에서 영감을 받은 파도처럼 물결치는 패턴을 형성하는 맞춤형 입체 세라믹 타일로 구성되어 있습니다. 이 프로젝트의 혁신적인 건축 기술도 놀랍지만, 스튜디오의 새로운 디자인 언어가 도시의 건축 유산을 반영하여 역사적인 배경과 조화롭게 어우러지는 방식이 진정으로 돋보입니다. 스튜디오 랩은 건축 디자인의 경계를 넓히기 위해 수년에 걸쳐 독특한 디지털 제작 프로세스를 개발했습니다.

여기에는 자체 개발한 디지털 디자인 알고리즘과 결합하여 파사드의 복잡한 3D 프린팅 세라믹 타일 배열을 만드는 첨단 로봇 시스템 제작이 포함됩니다. 재료 선택은 네덜란드 국립박물관인 국립미술관의 유명한 도자기 컬렉션에서 영감을 얻었으며, 타일의 질감과 복잡한 형태는 니트 직물의 주름, 실과 실 사이, 스티치 패턴에서 힌트를 얻었습니다. 재료 선택은 국립 국립 박물관의 유명한 도자기 컬렉션에서 영감을 얻었으며, 국립 박물관의 도시 패브릭은 원래 파사드의 실루엣, 특히 특징적인 삼각형 구성을 보존하고 세라믹 타일의 크기와 색상을 주변 건물과 동기화하기 위해 노력했습니다. 길가에는 펄 화이트에 은은한 노란색이 가미된 대형 타일이 거리의 전형적인 상점을 연상시키며, 위층은 세 가지 색조의 빨간색으로 덮여 있습니다. 크기가 더 작은 붉은 색 타일은 전통적인 벽돌의 크기와 일치하며, 레이저 커팅된 스테인리스 스틸 카세트는 전통적인 그라우팅을 모방하여 배치되었습니다.translate by Deeple

반응형

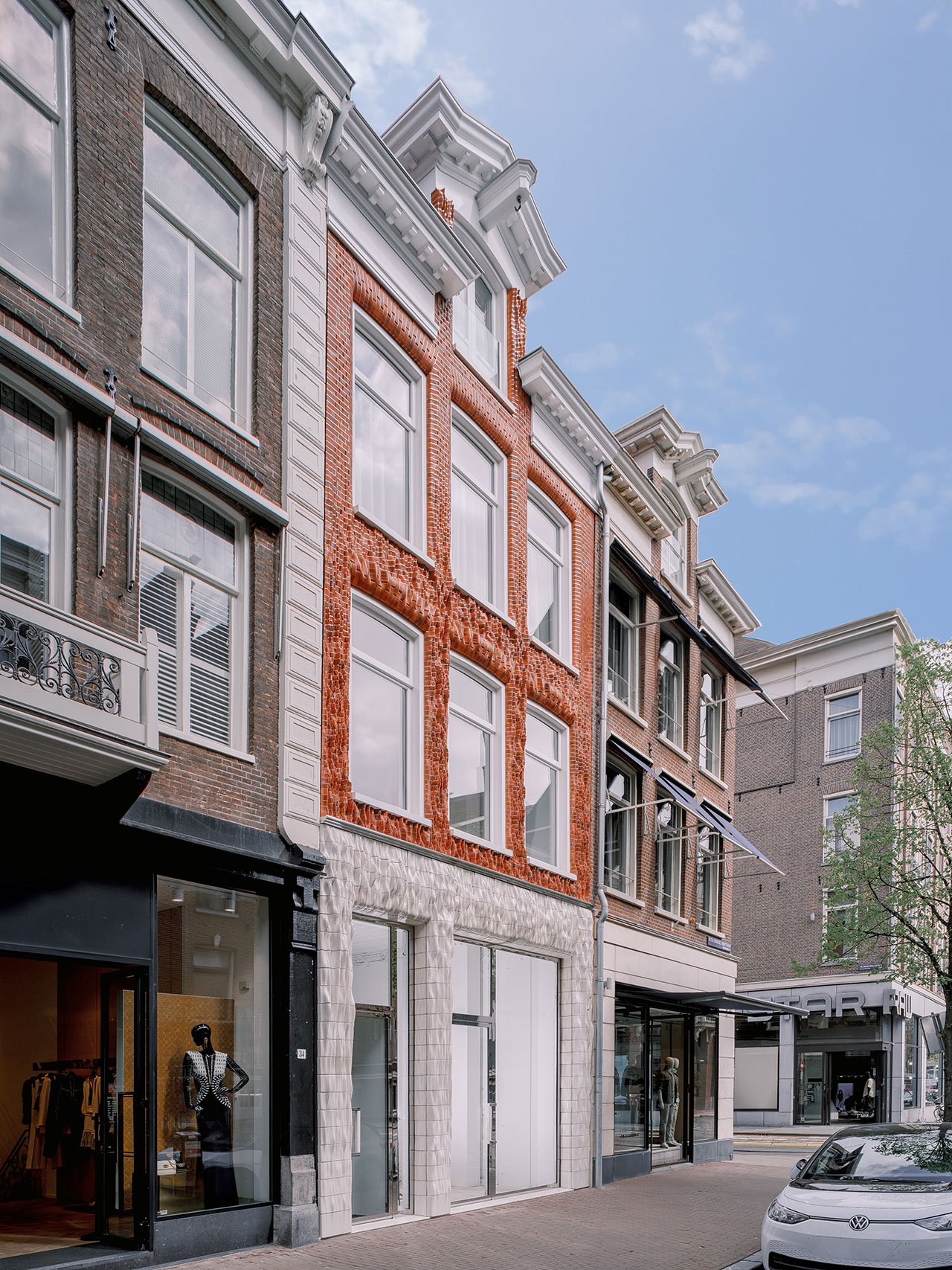

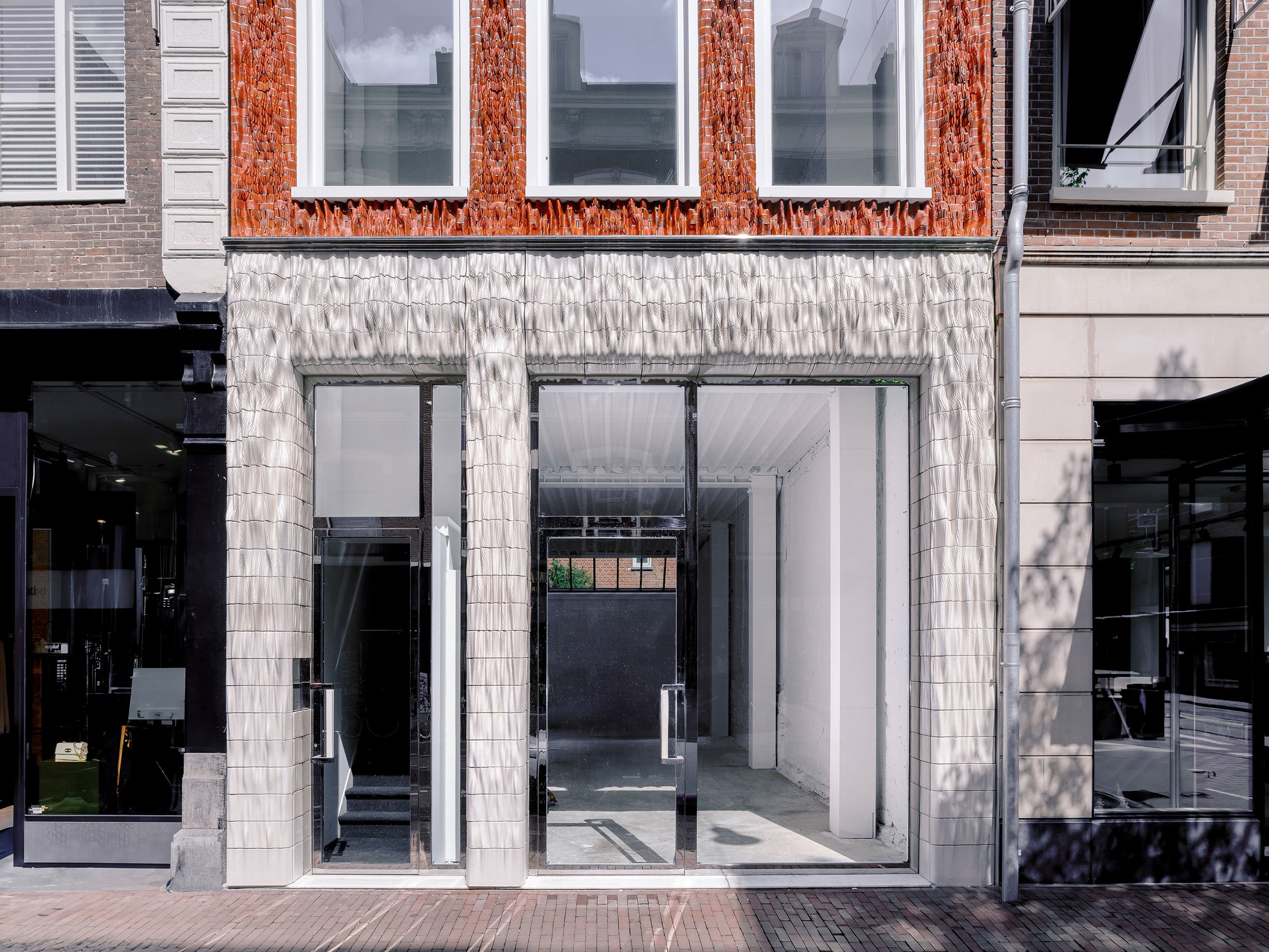

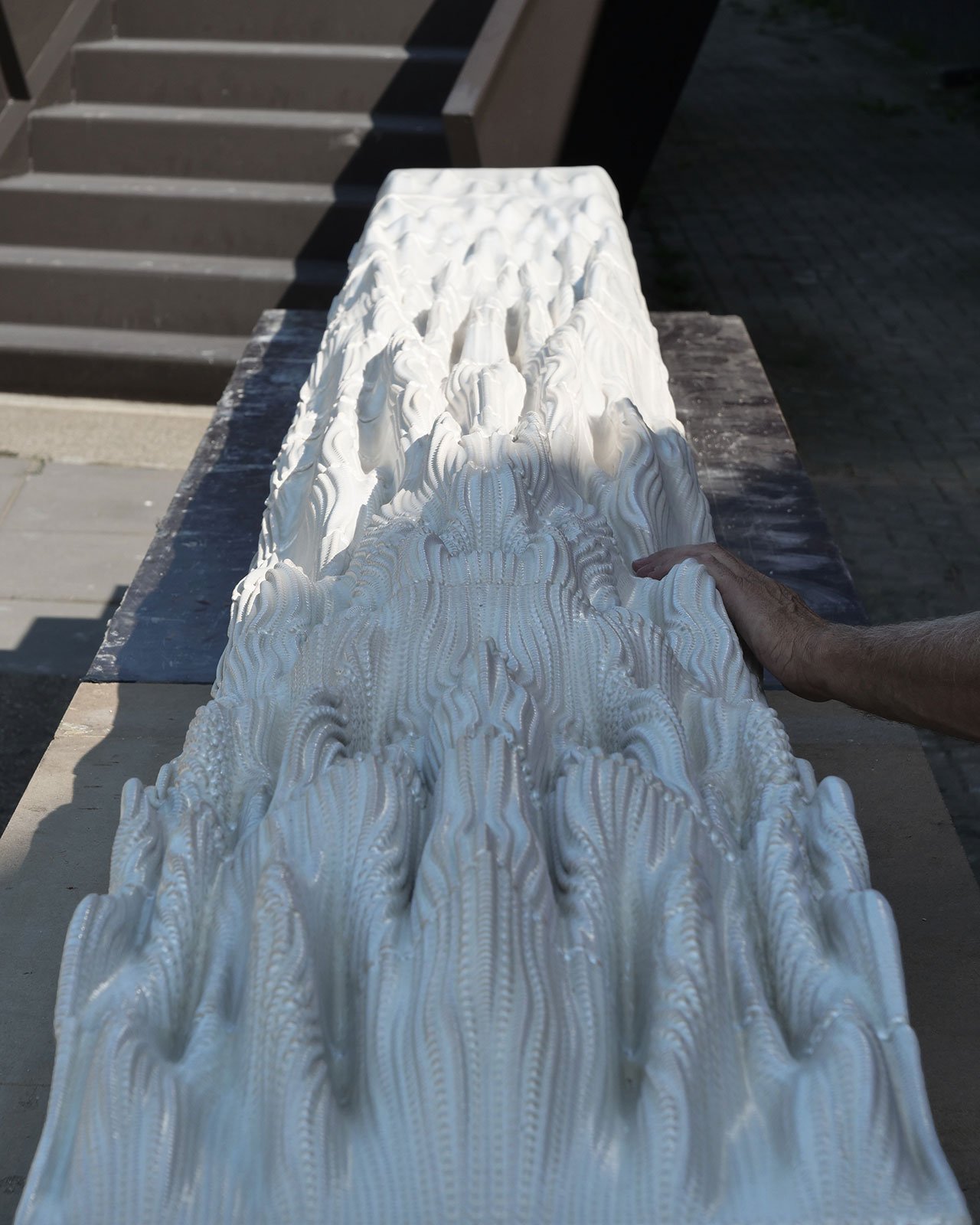

If there were any doubts that historic architecture can harmoniously coexist with advanced construction technologies, this project by Dutch architecture practice Studio RAP dispels them in spectacular fashion. Using its custom-built 3D printing technology, the studio transformed the façade of a boutique on Amsterdam’s P.C. Hooftstraat, the city’s emblematic high end shopping street, into an architectural landmark seamlessly blending tradition and innovation. Simple in silhouette yet boldly sculptural in detail, the façade comprises an array of bespoke, three-dimensional ceramic tiles forming wave-like, rippling patterns inspired by the craft of knitting garments. Radically innovative in construction, the project’s technological advancements are remarkable, but it truly stands out for the way the studio’s brand-new design language harmoniously blends with the historic setting by echoing the city’s architectural heritage.

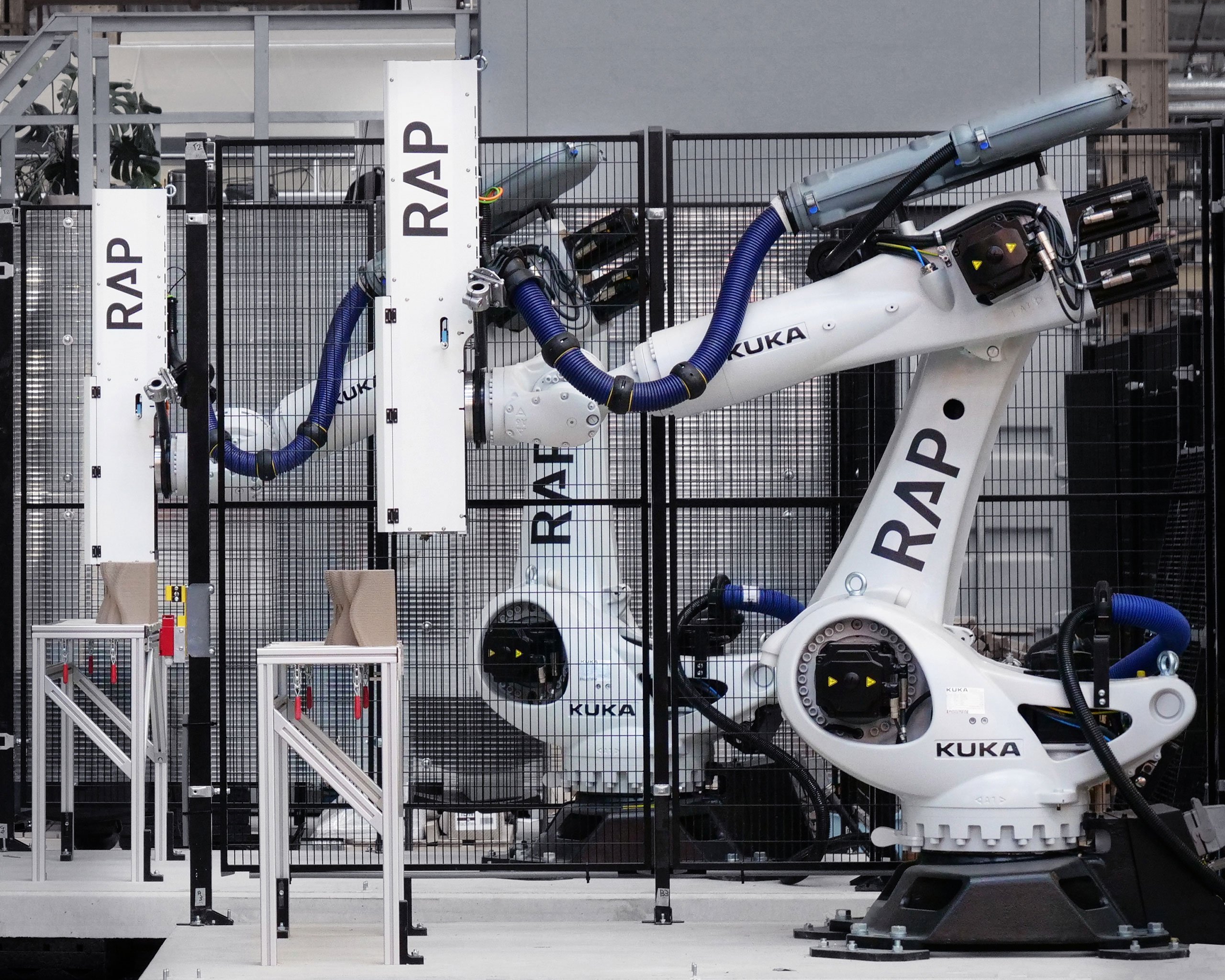

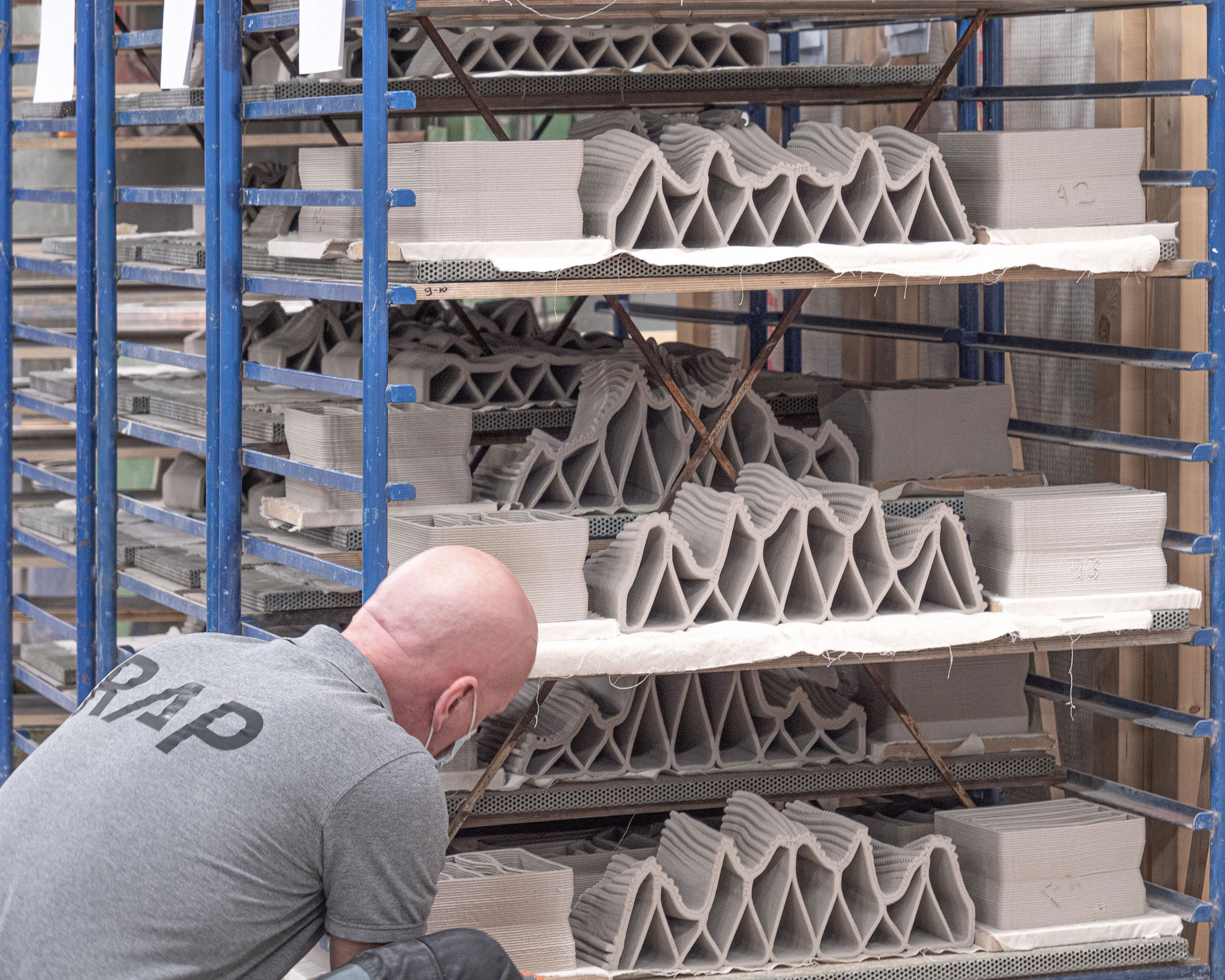

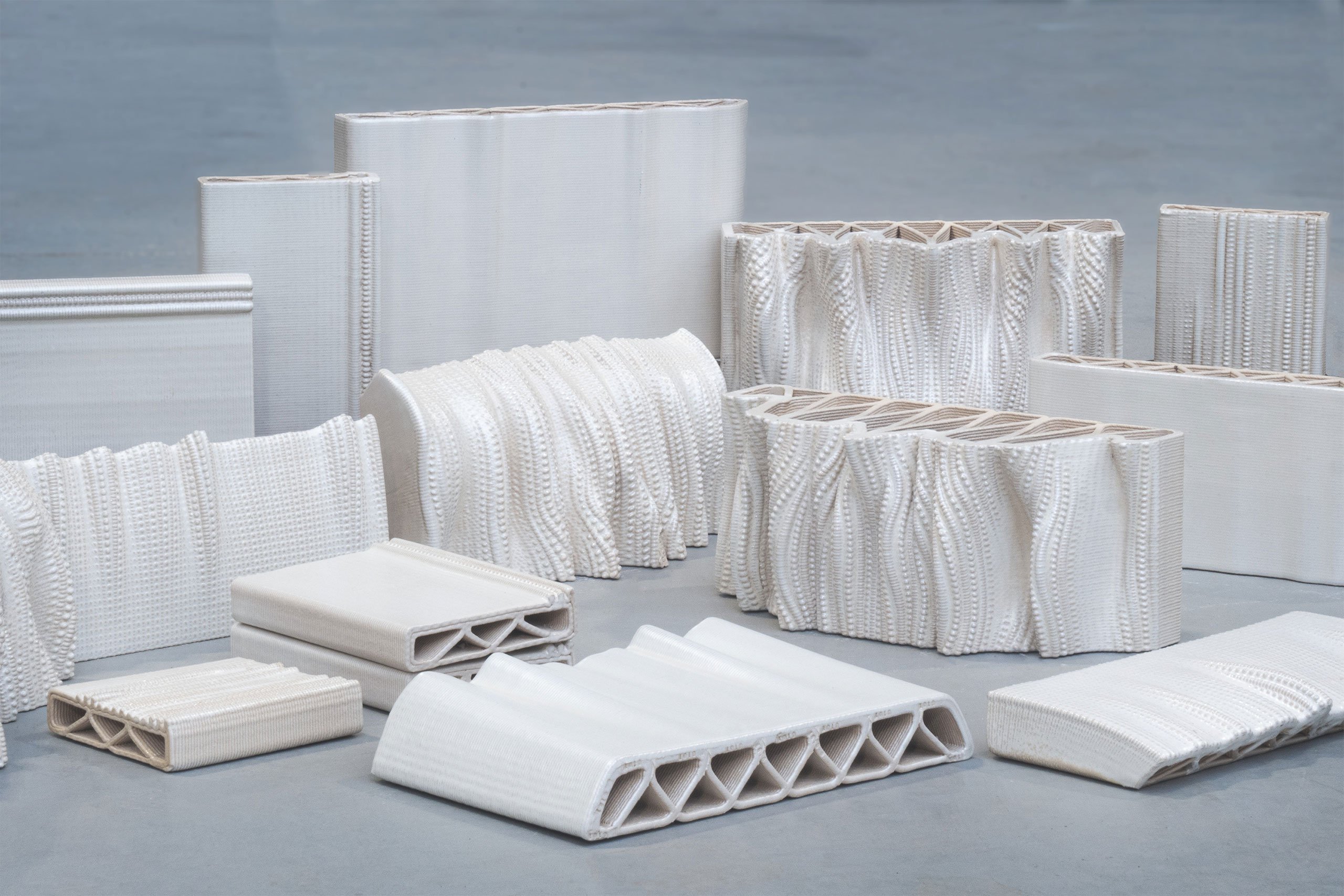

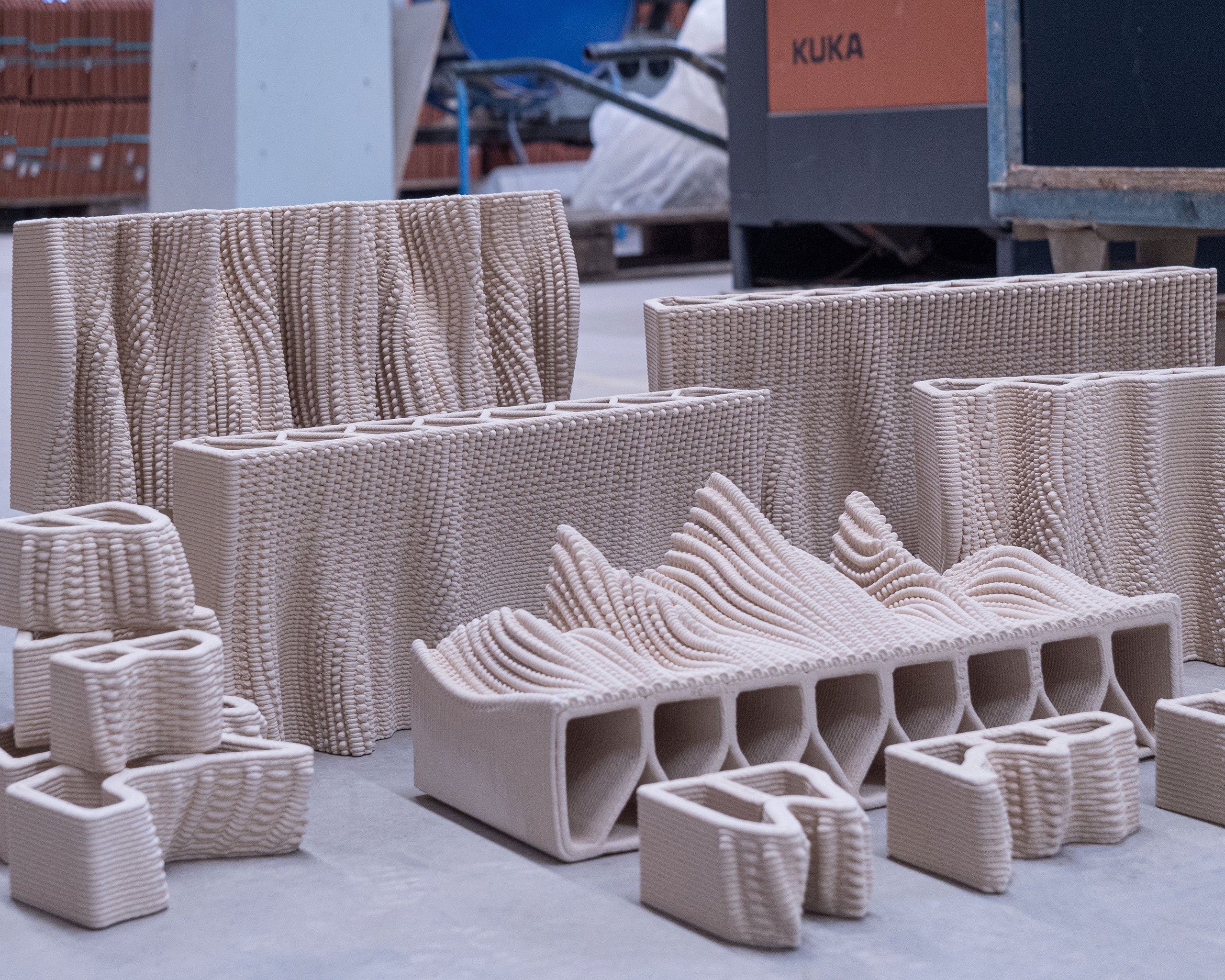

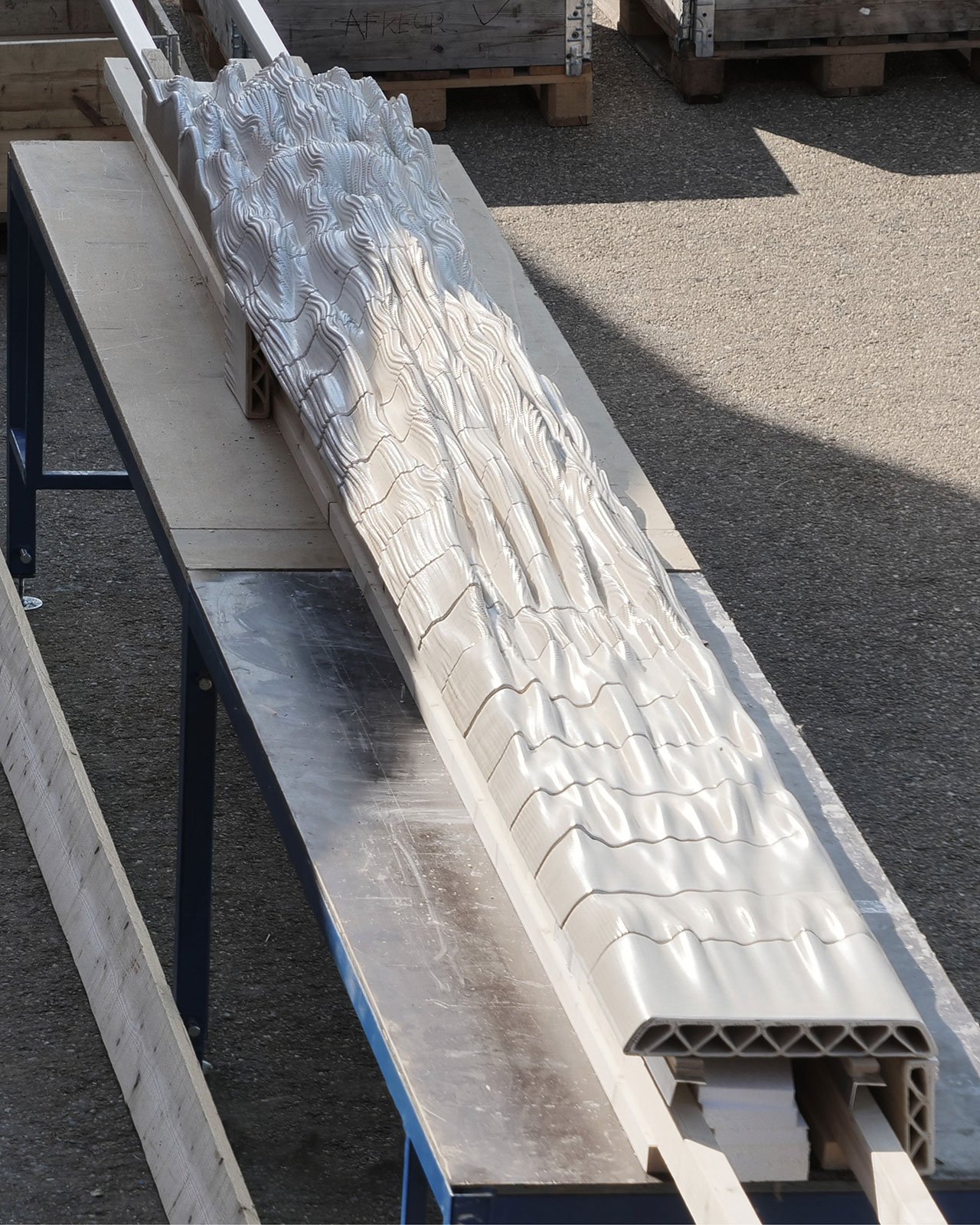

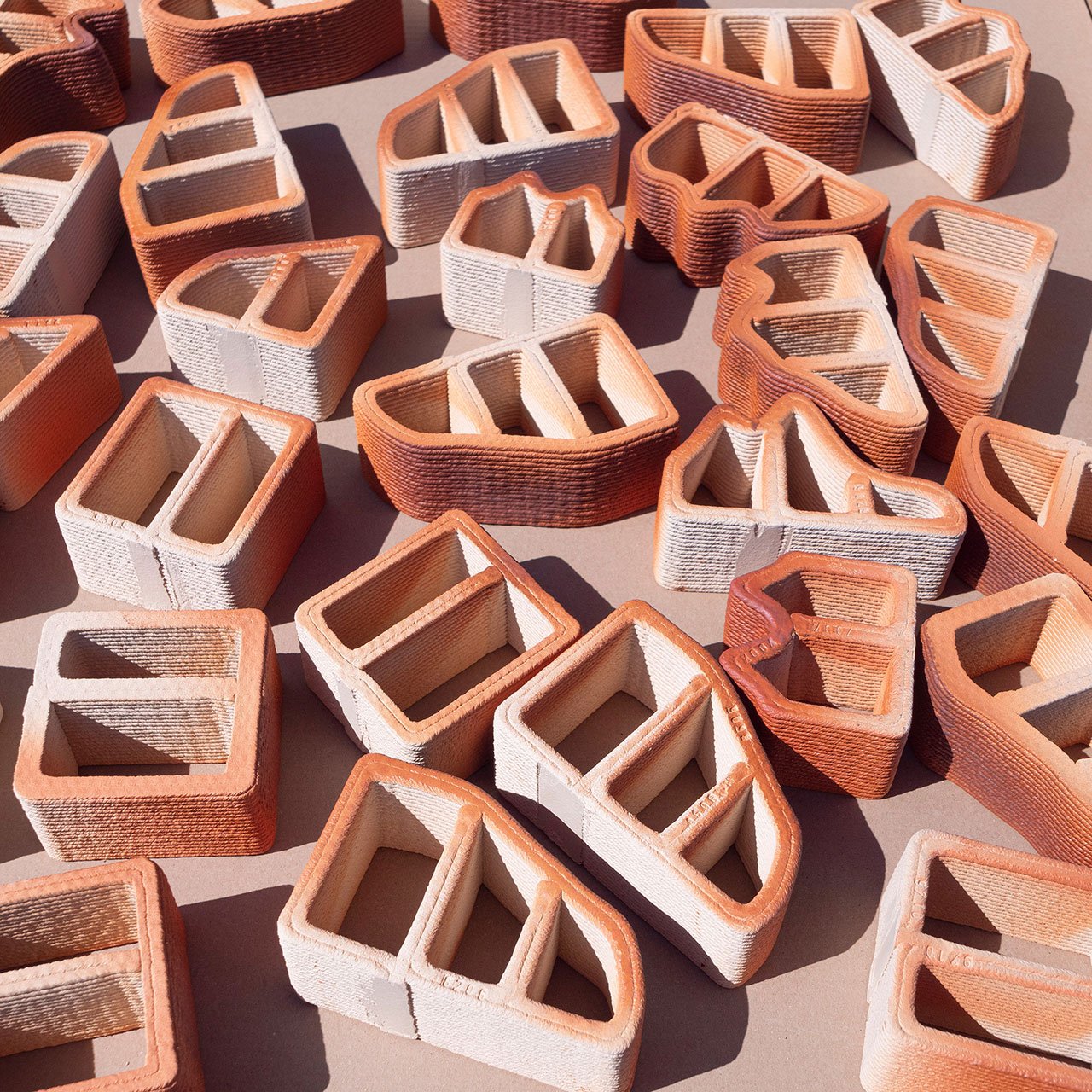

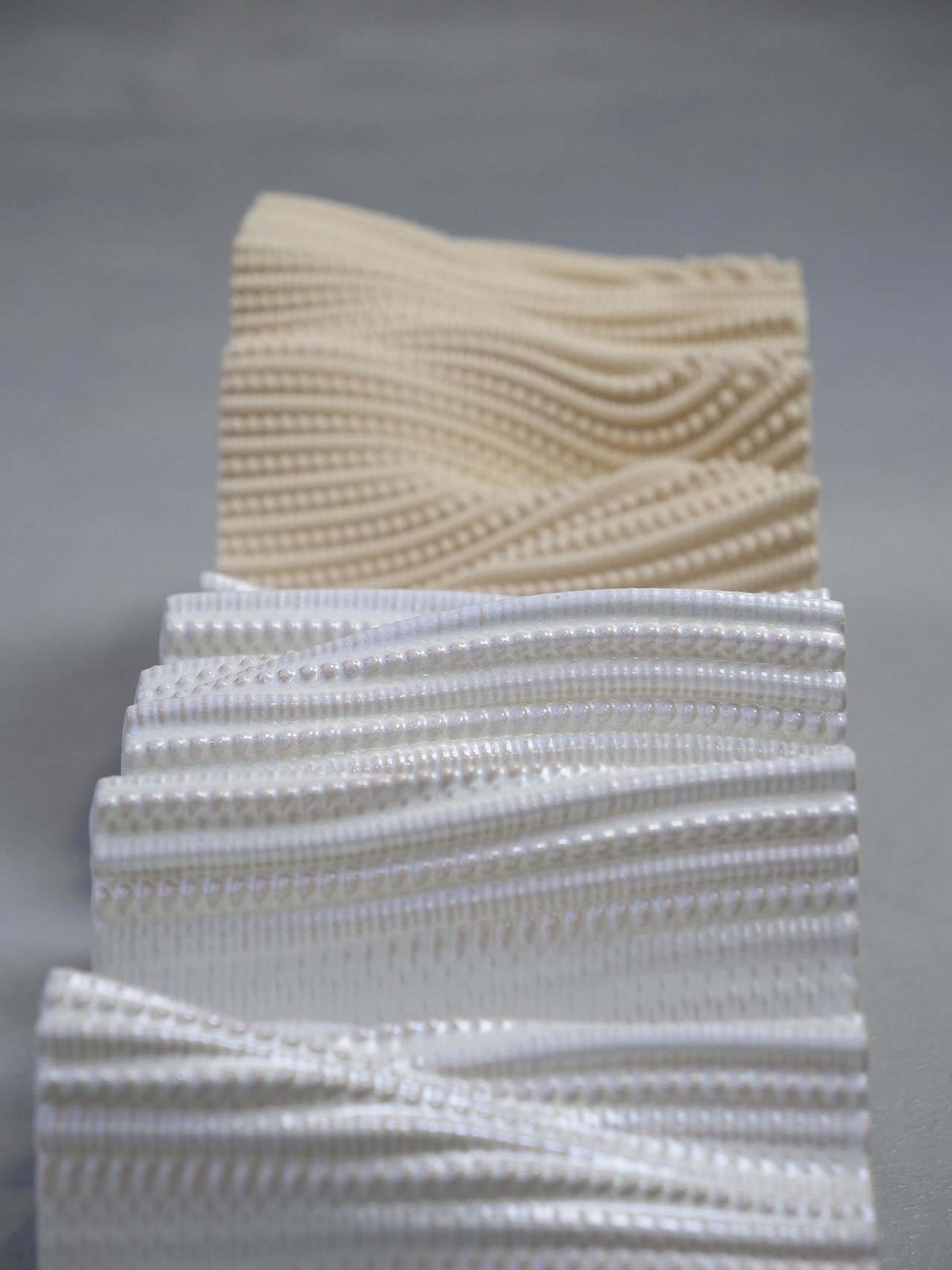

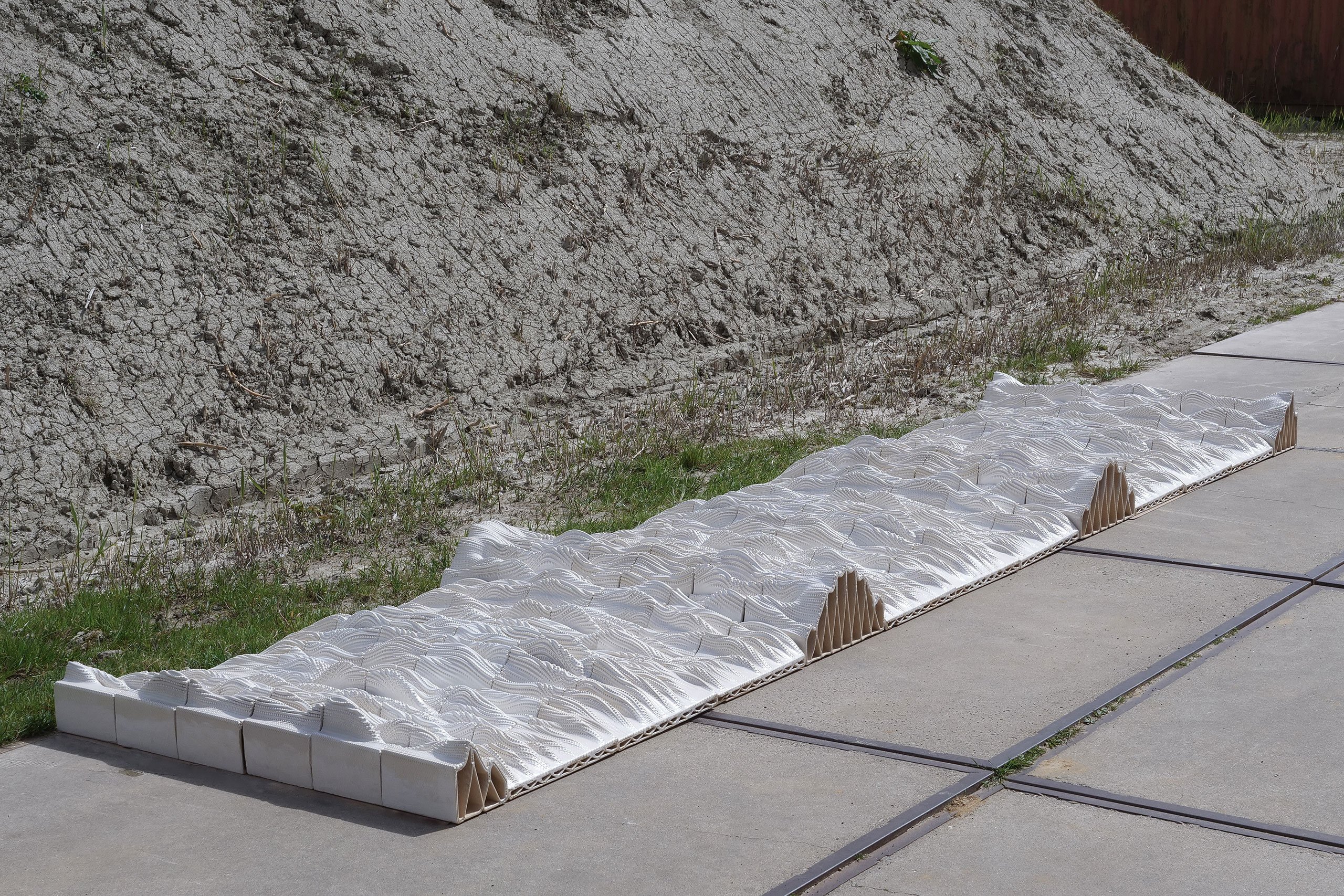

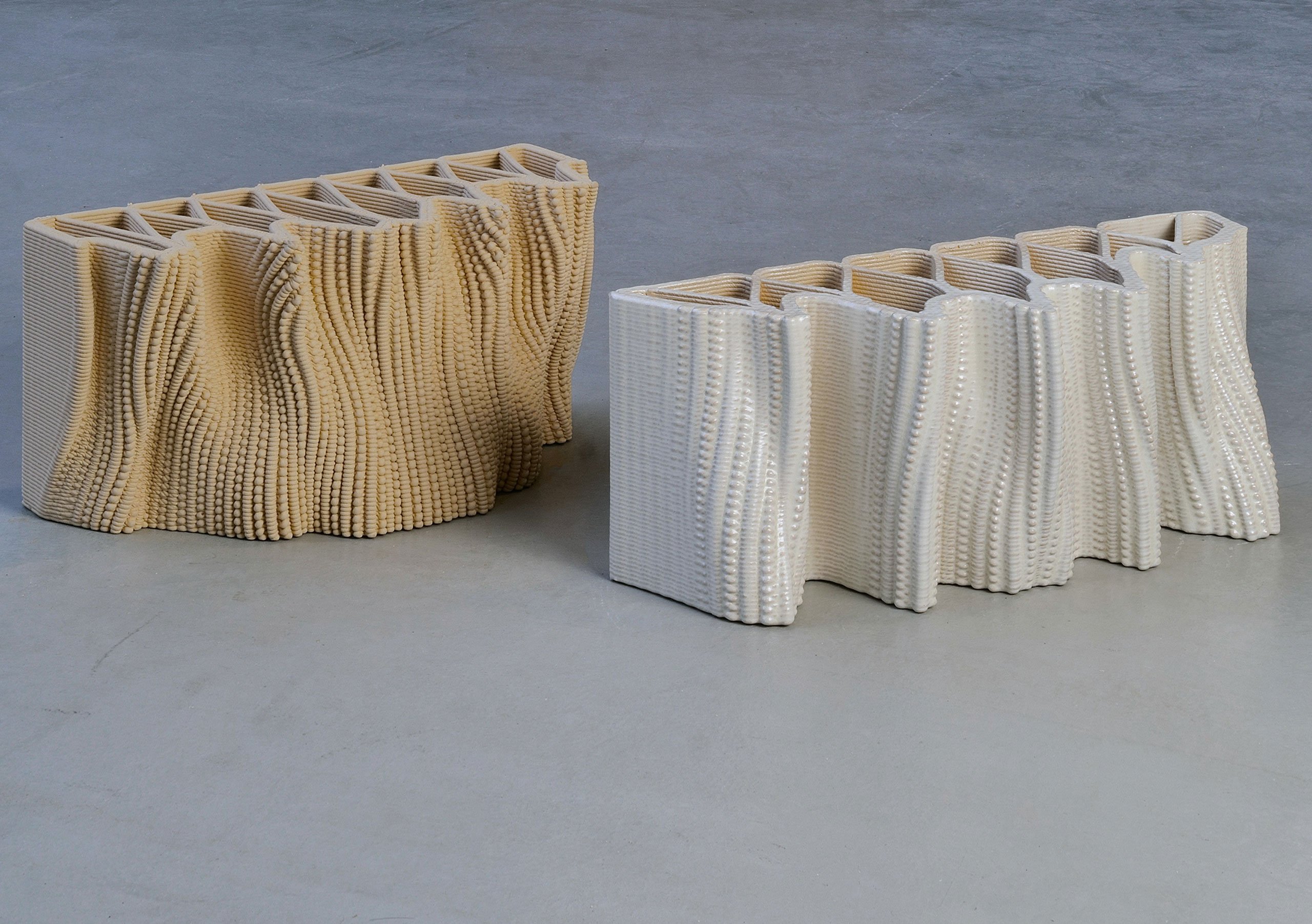

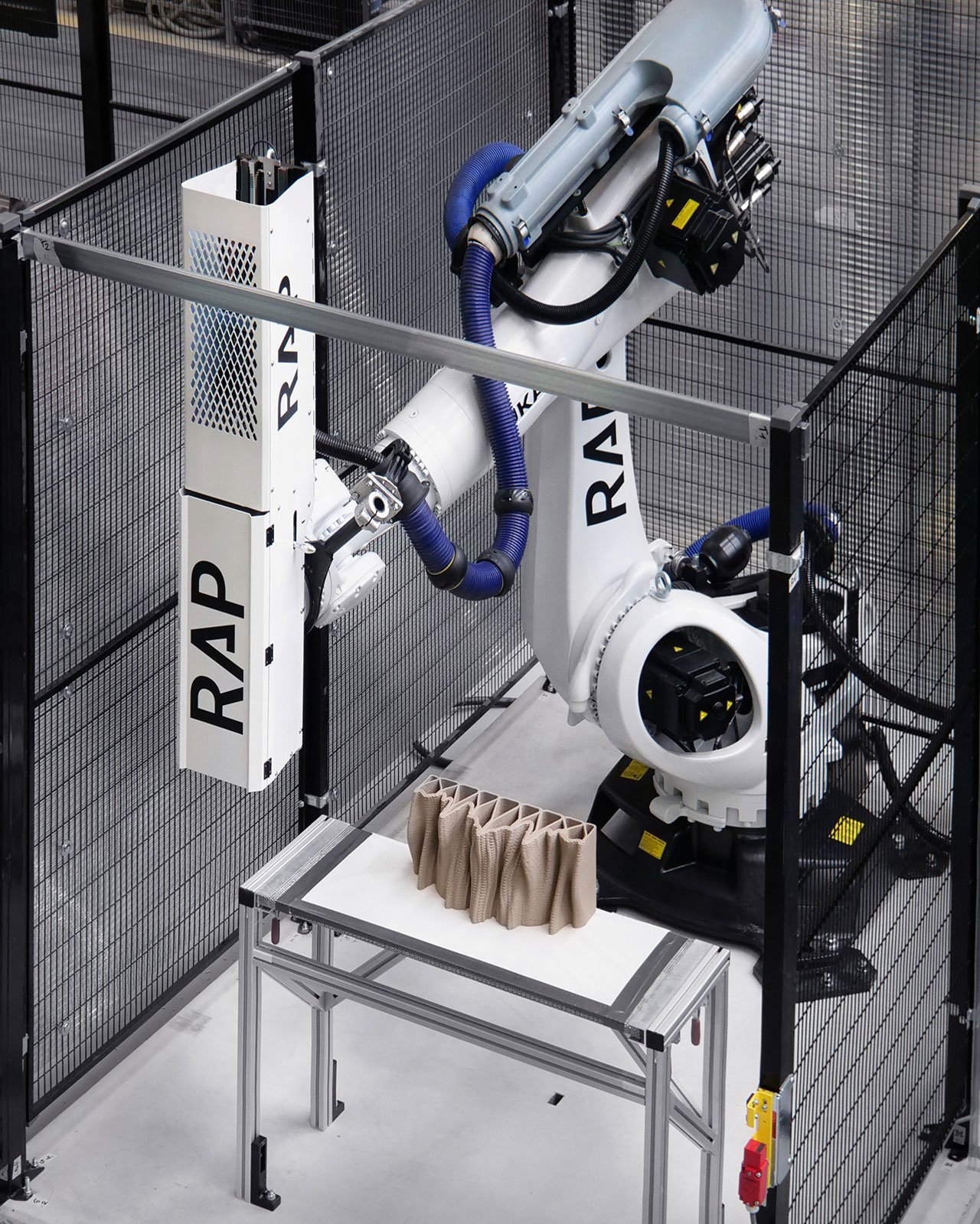

In line with its commitment to pushing the boundaries of architectural design, Studio RAP has developed a unique digital fabrication process over several years. This includes the creation of advanced robotic systems which they combined with in-house developed digital design algorithms to create the façade’s intricate array of 3D printed ceramic tiles. The choice of material was inspired by the celebrated ceramic collection of the Rijksmuseum, the national museum of the Netherlands, while the tiles' textural qualities and complex morphology take cues from the creases, inter-looping yarns, and stitch patterns of knitted textiles.

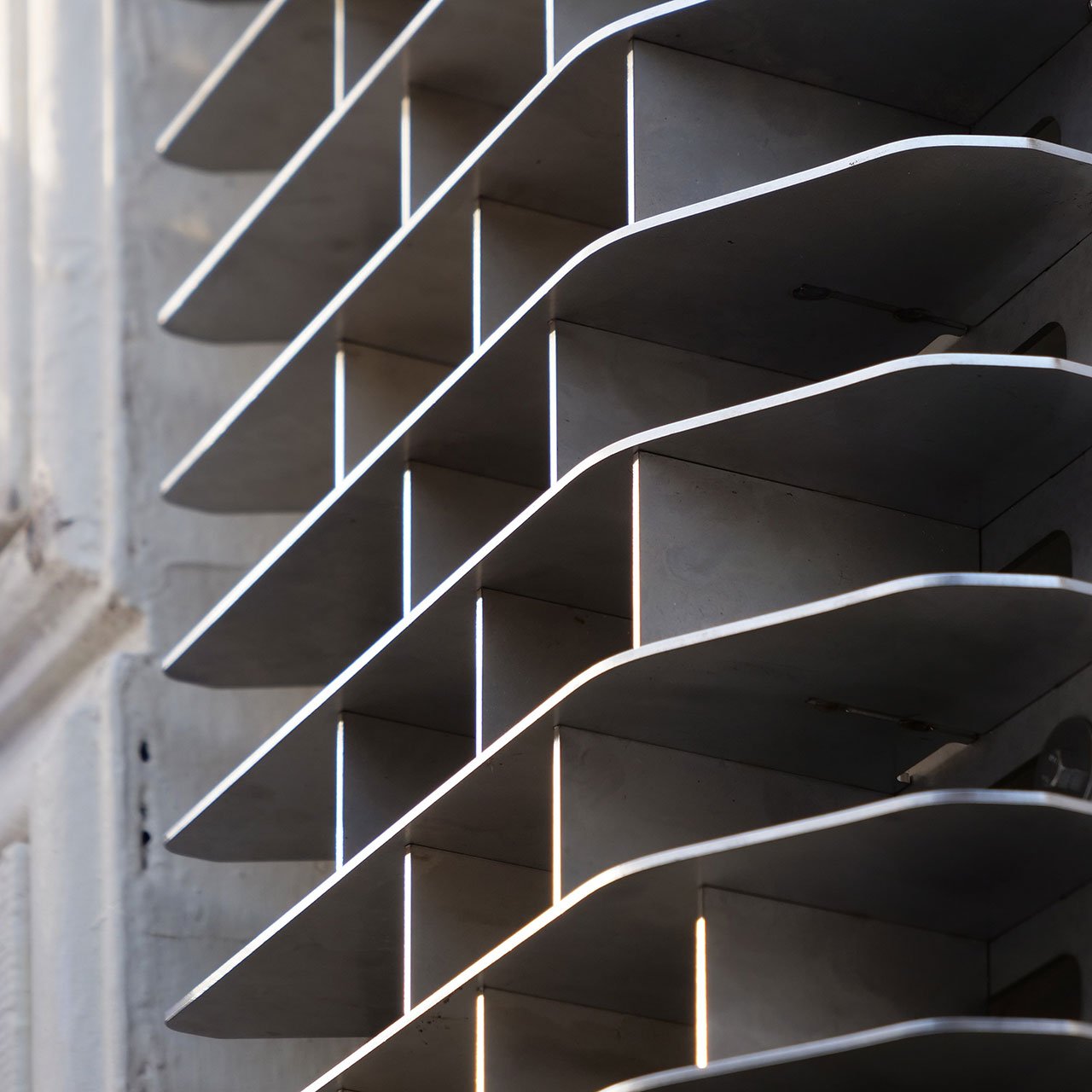

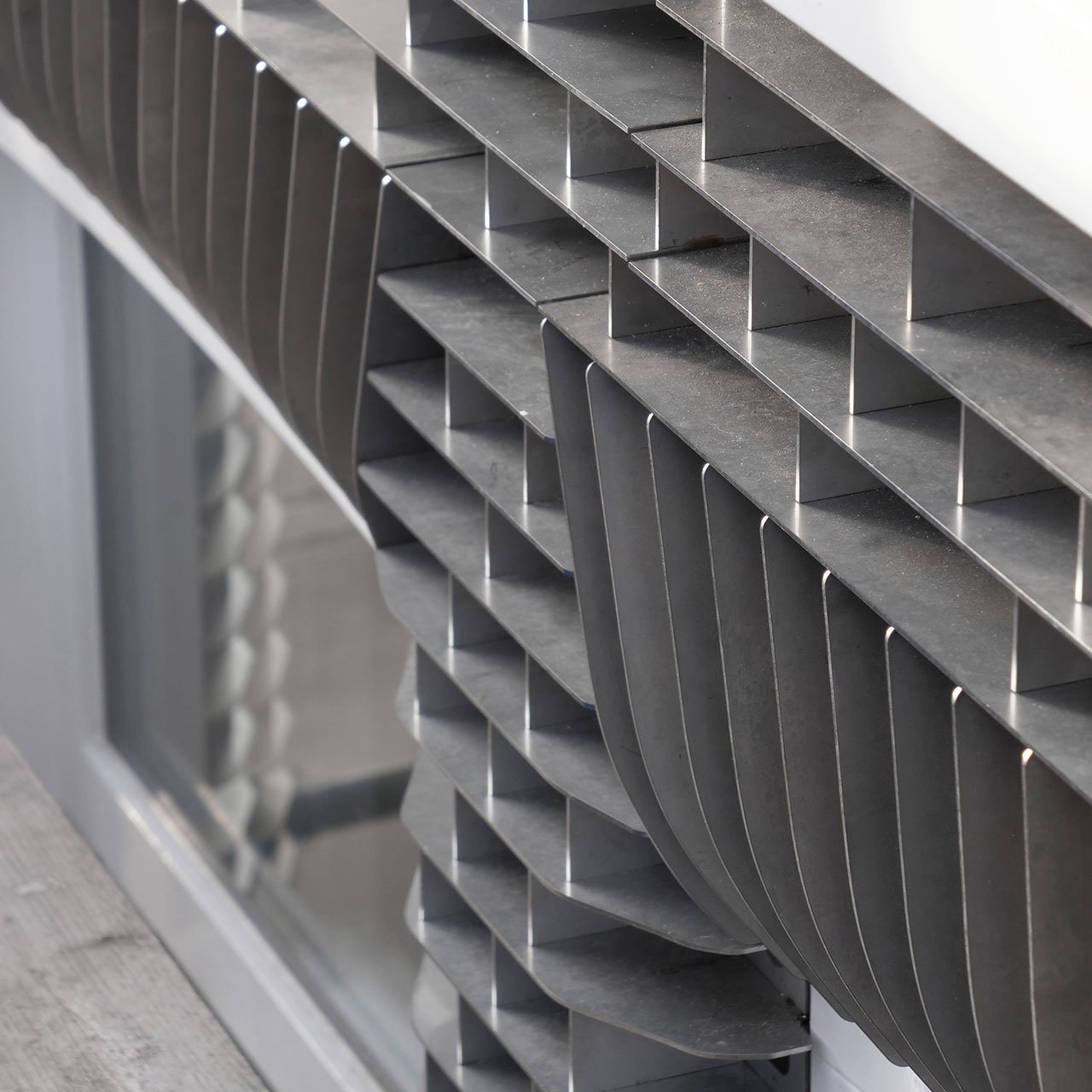

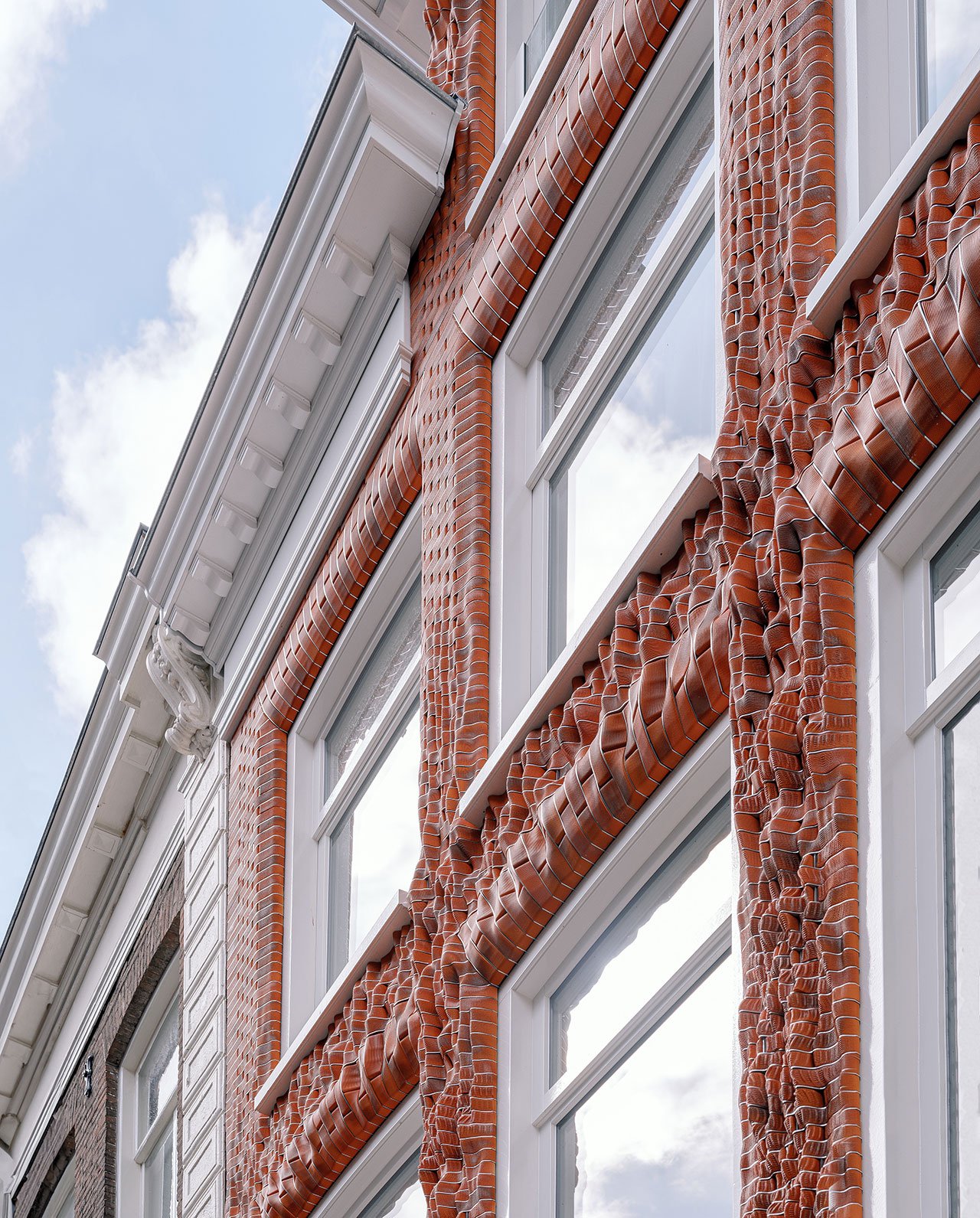

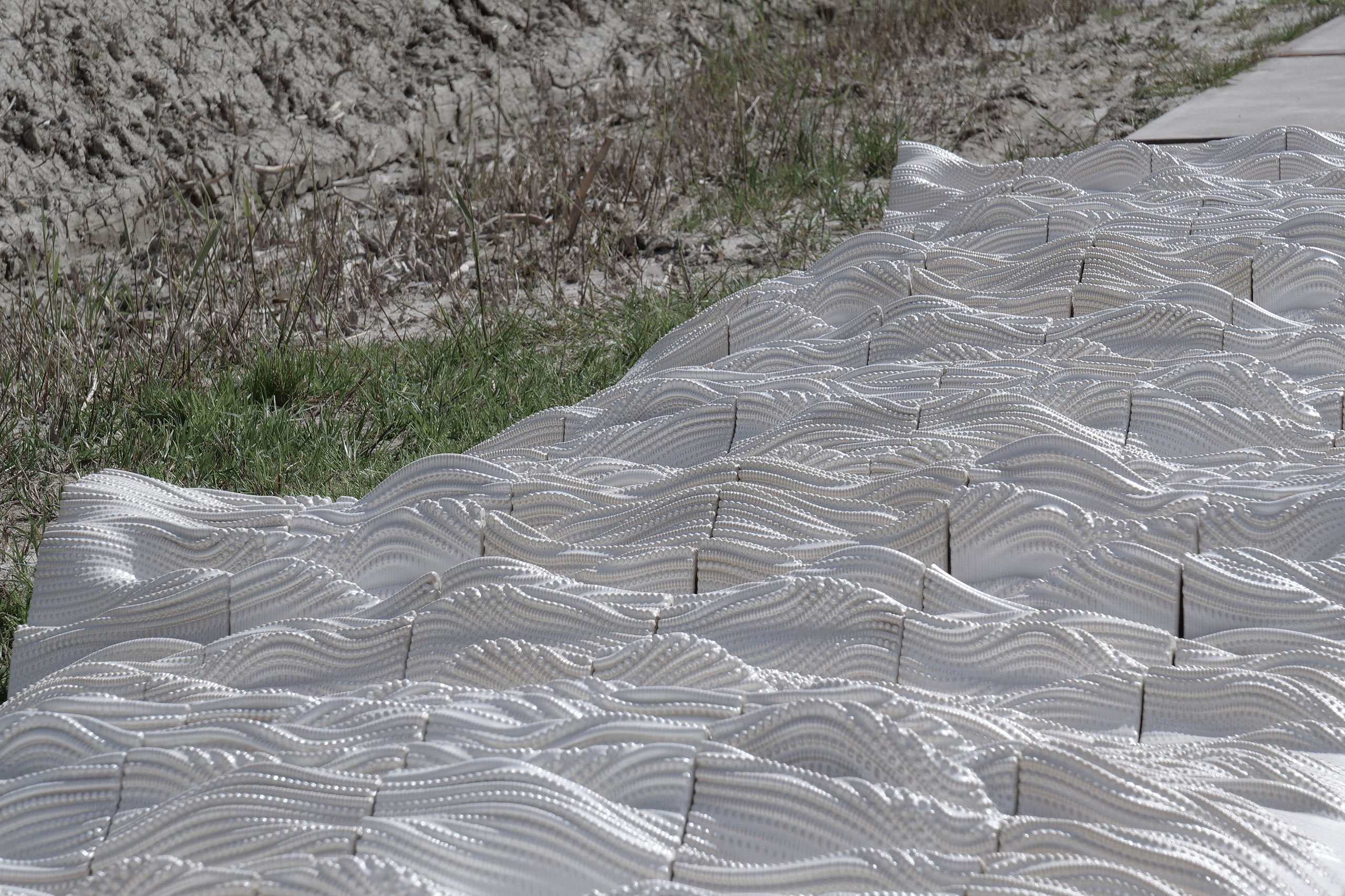

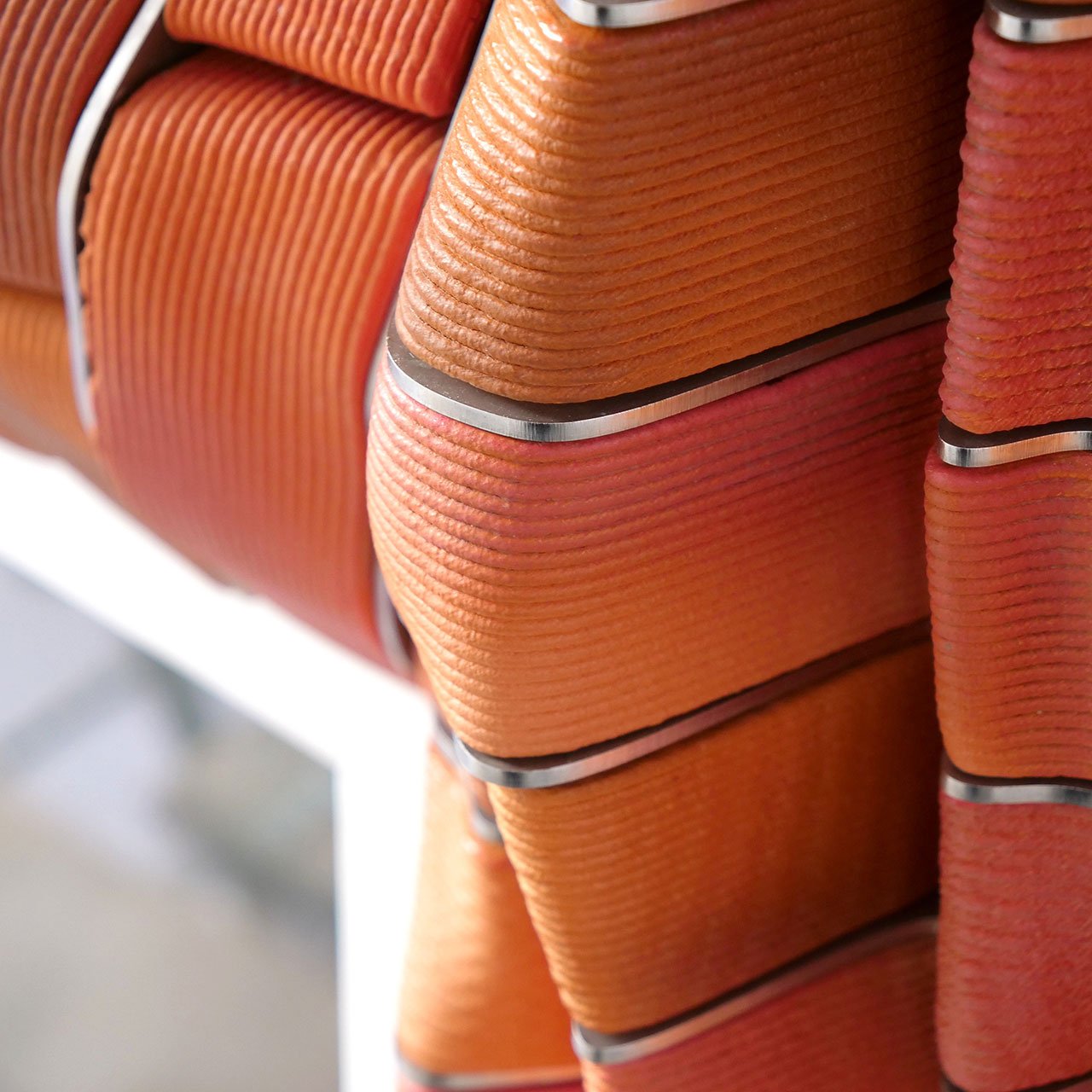

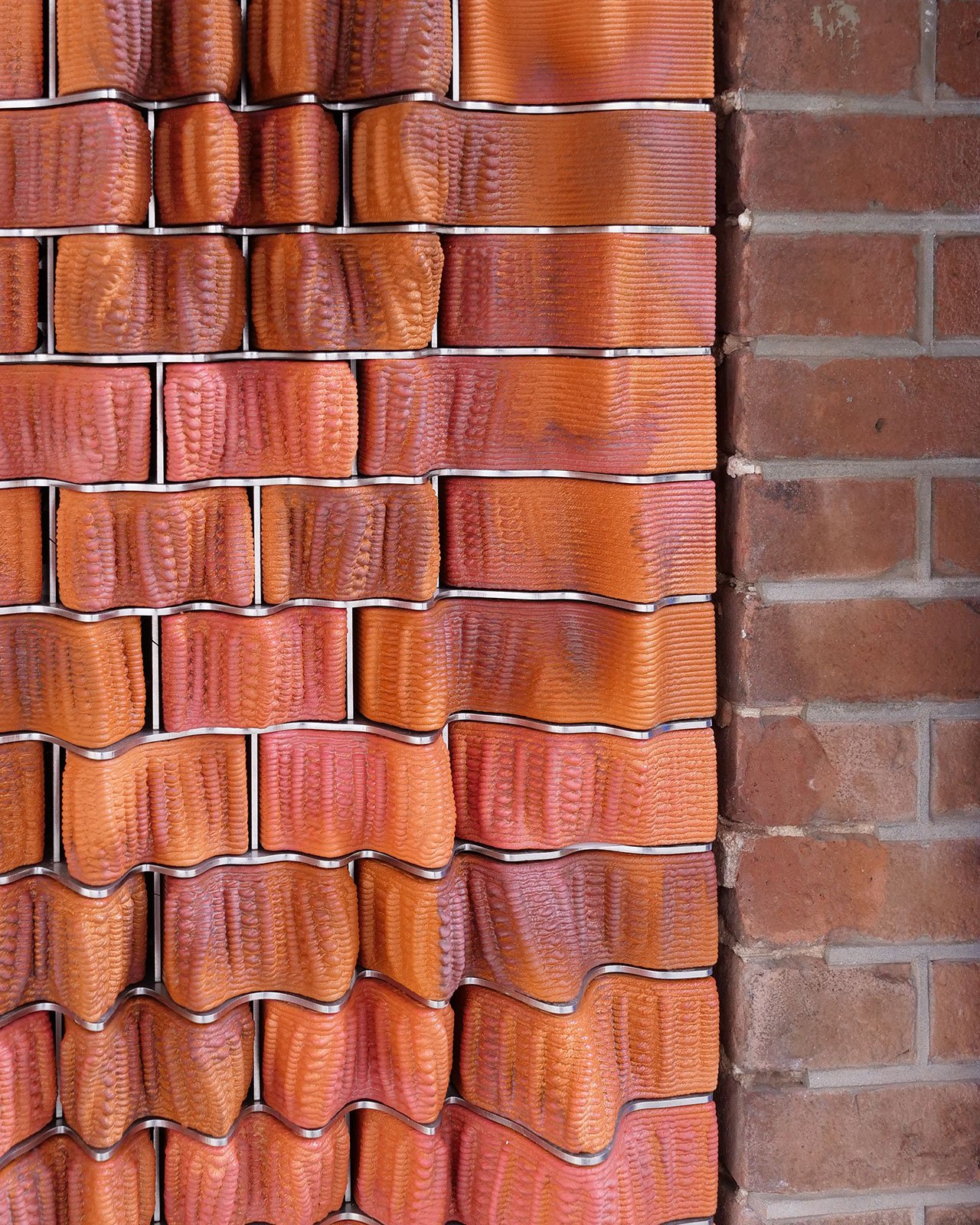

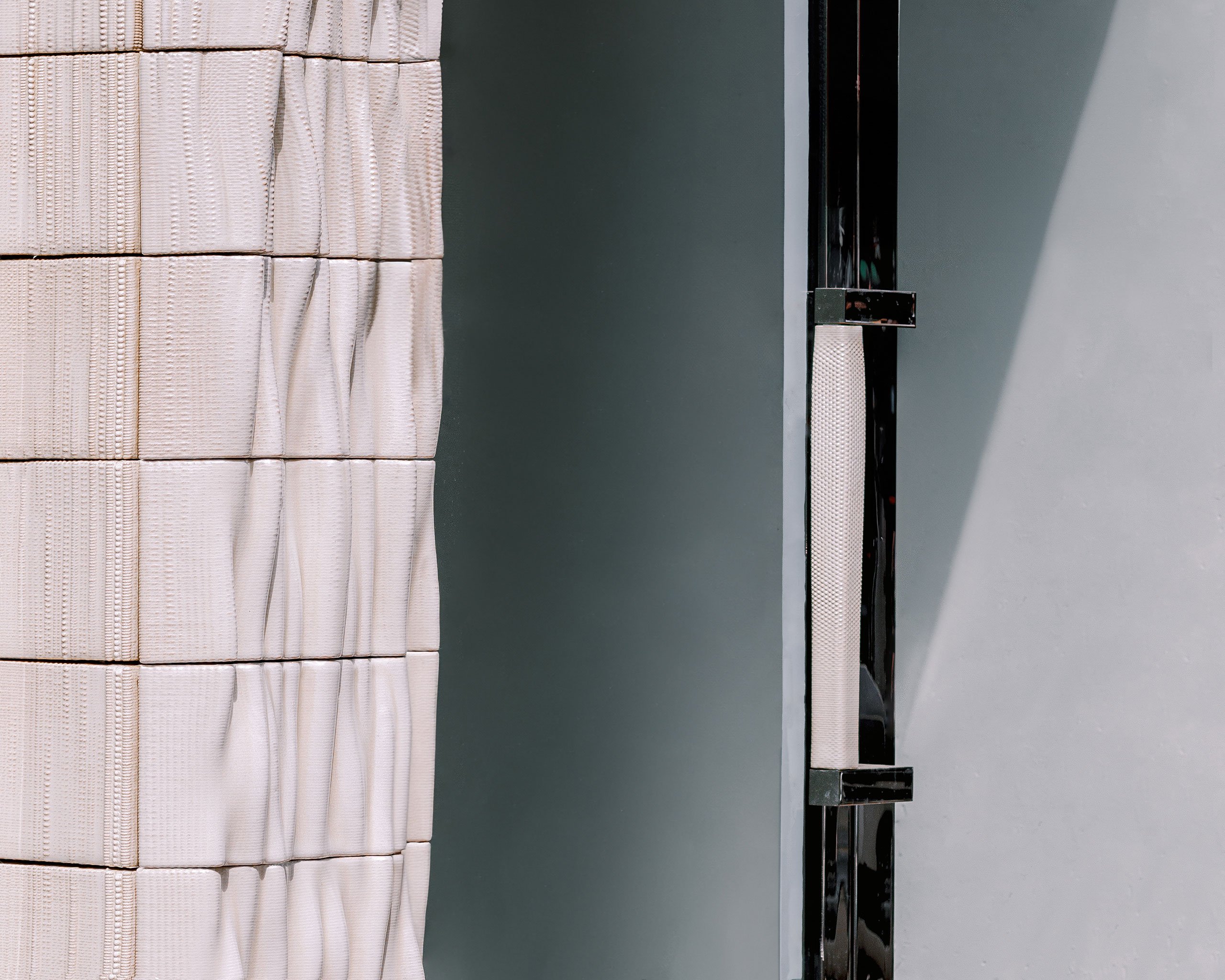

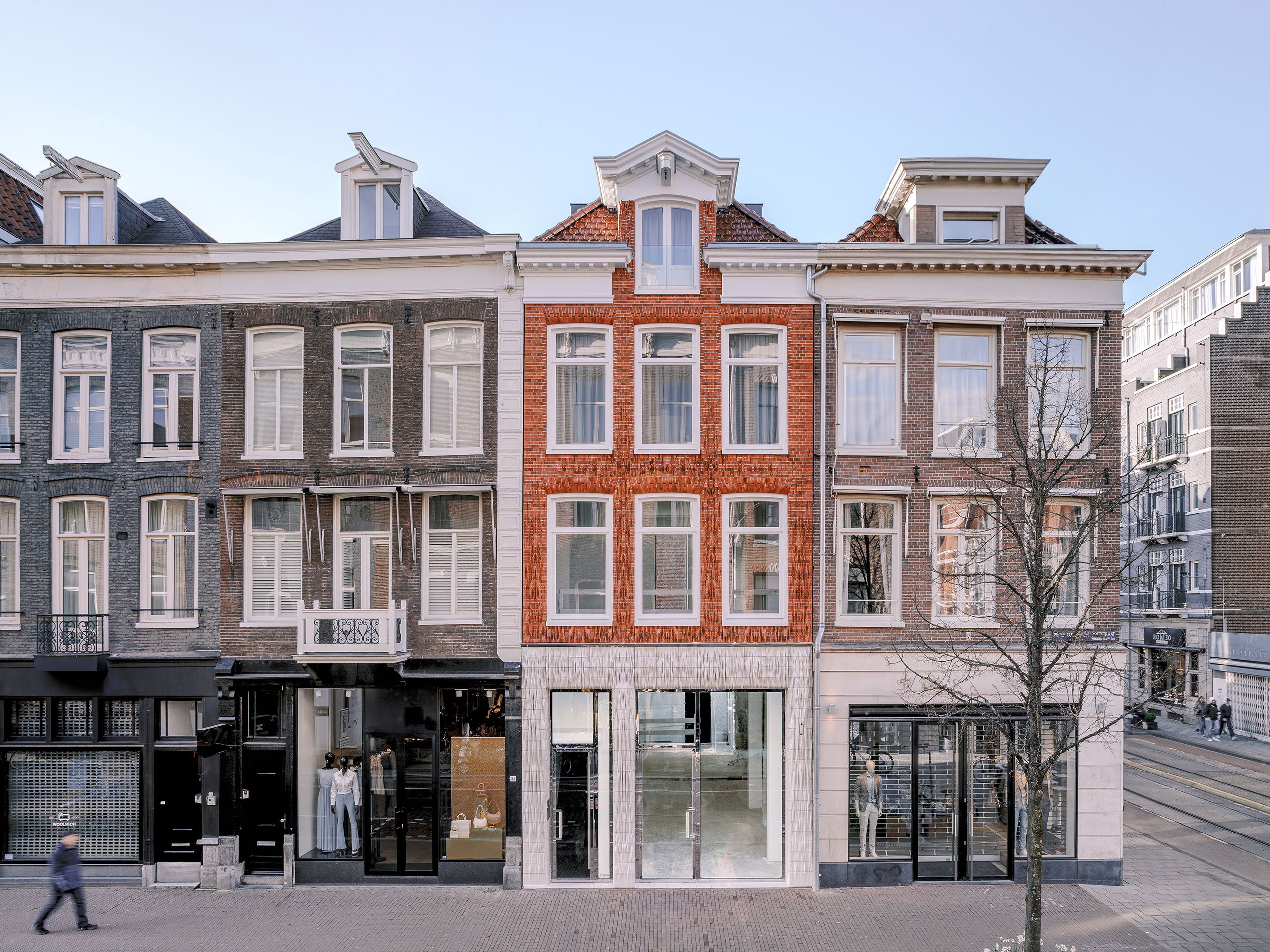

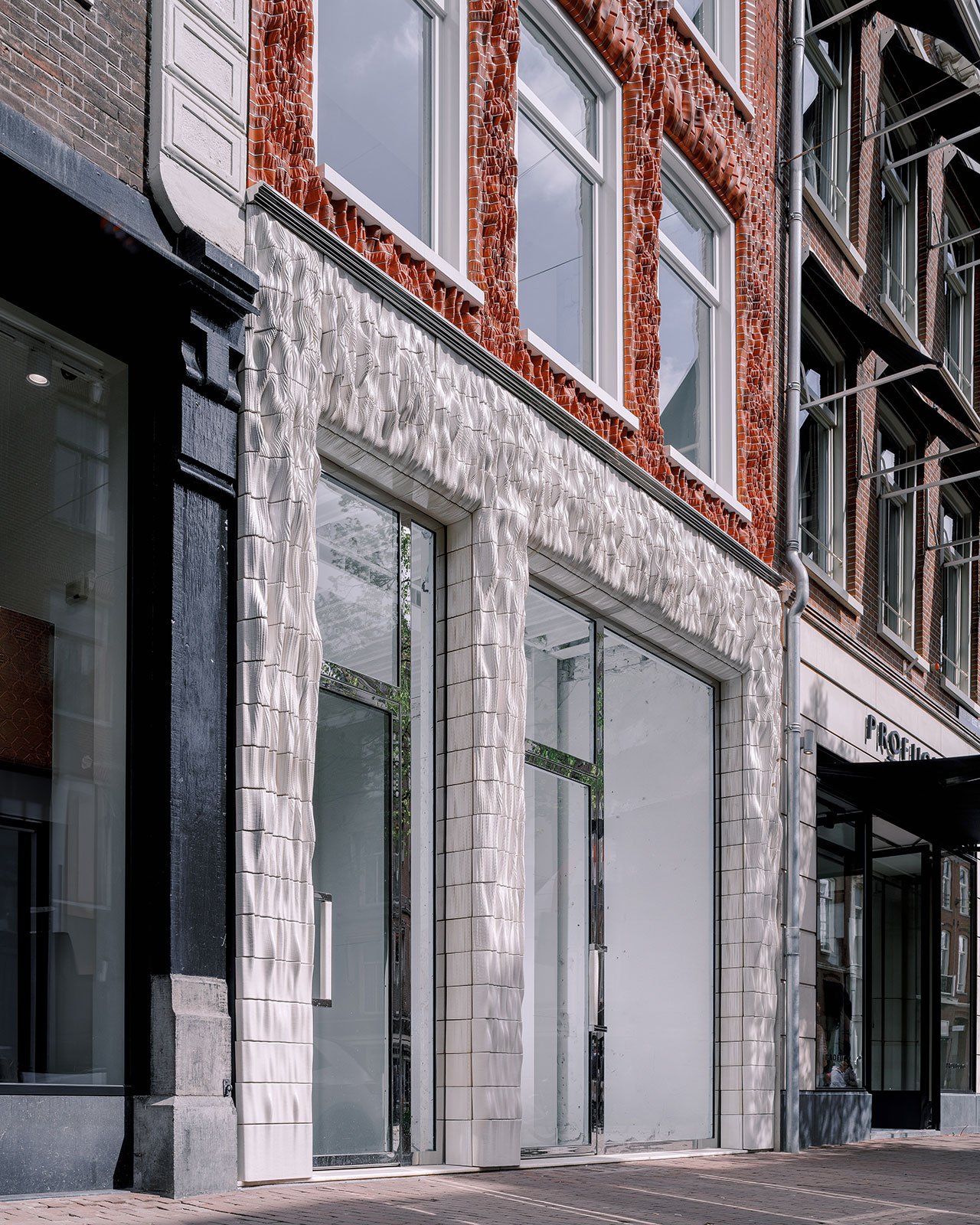

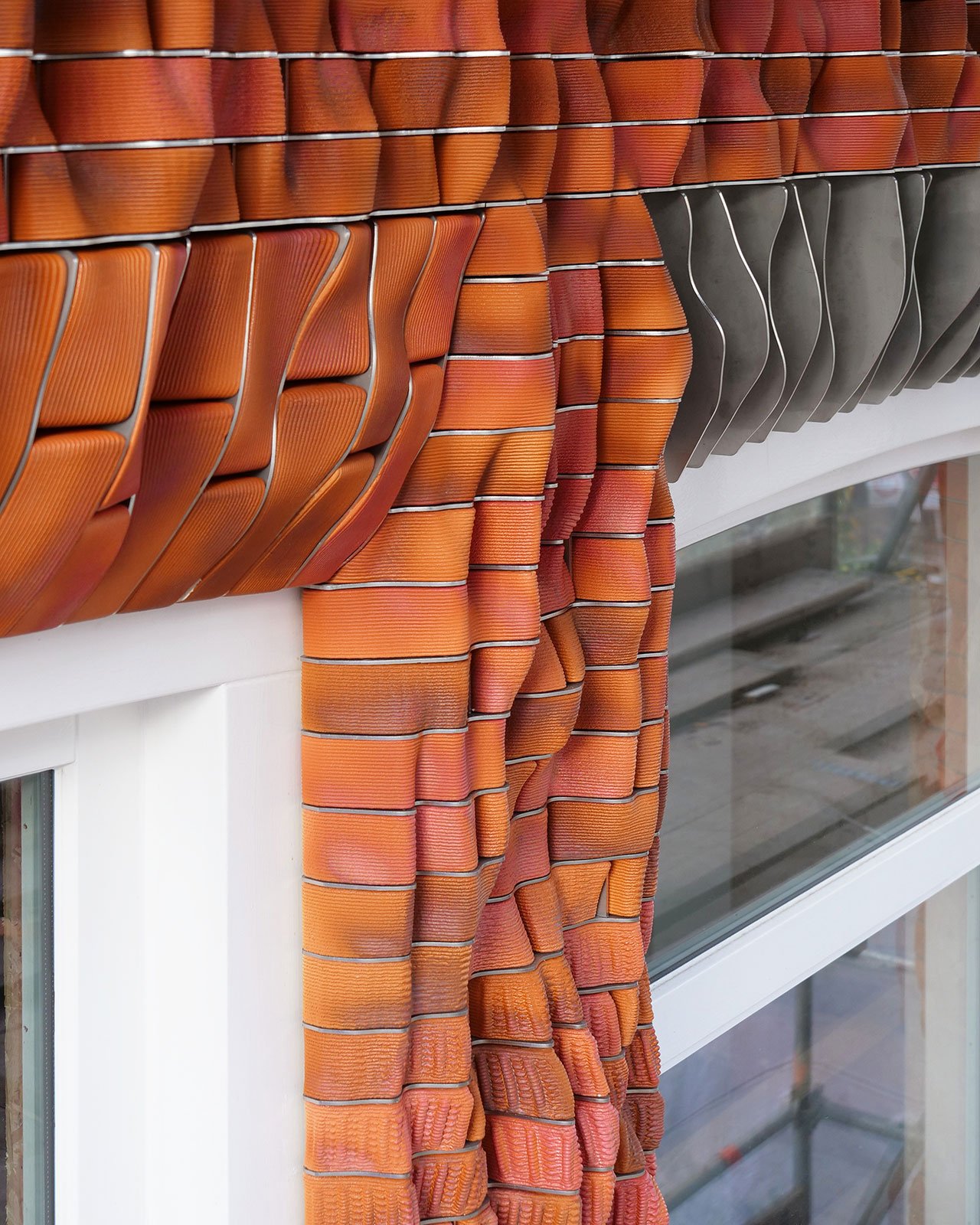

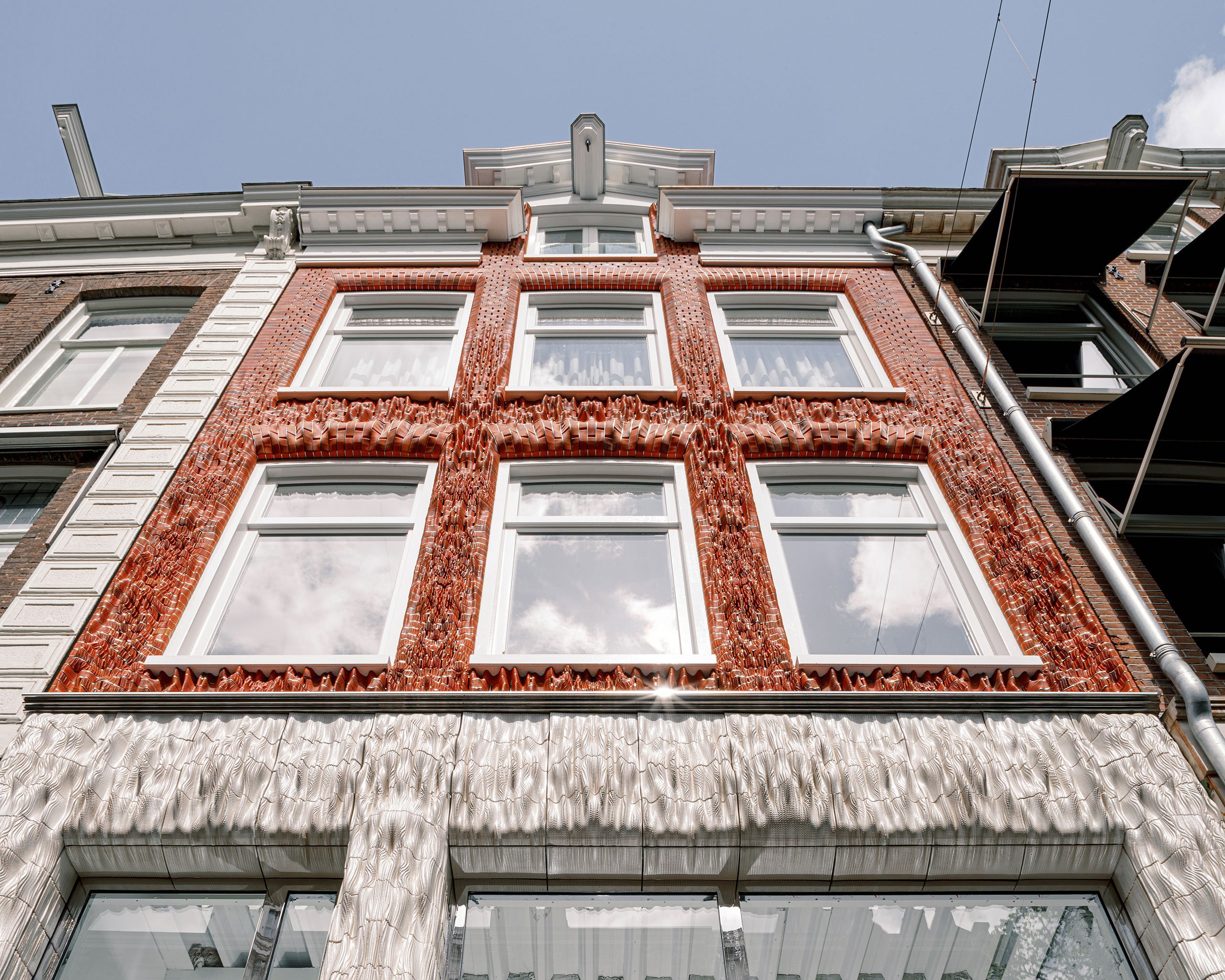

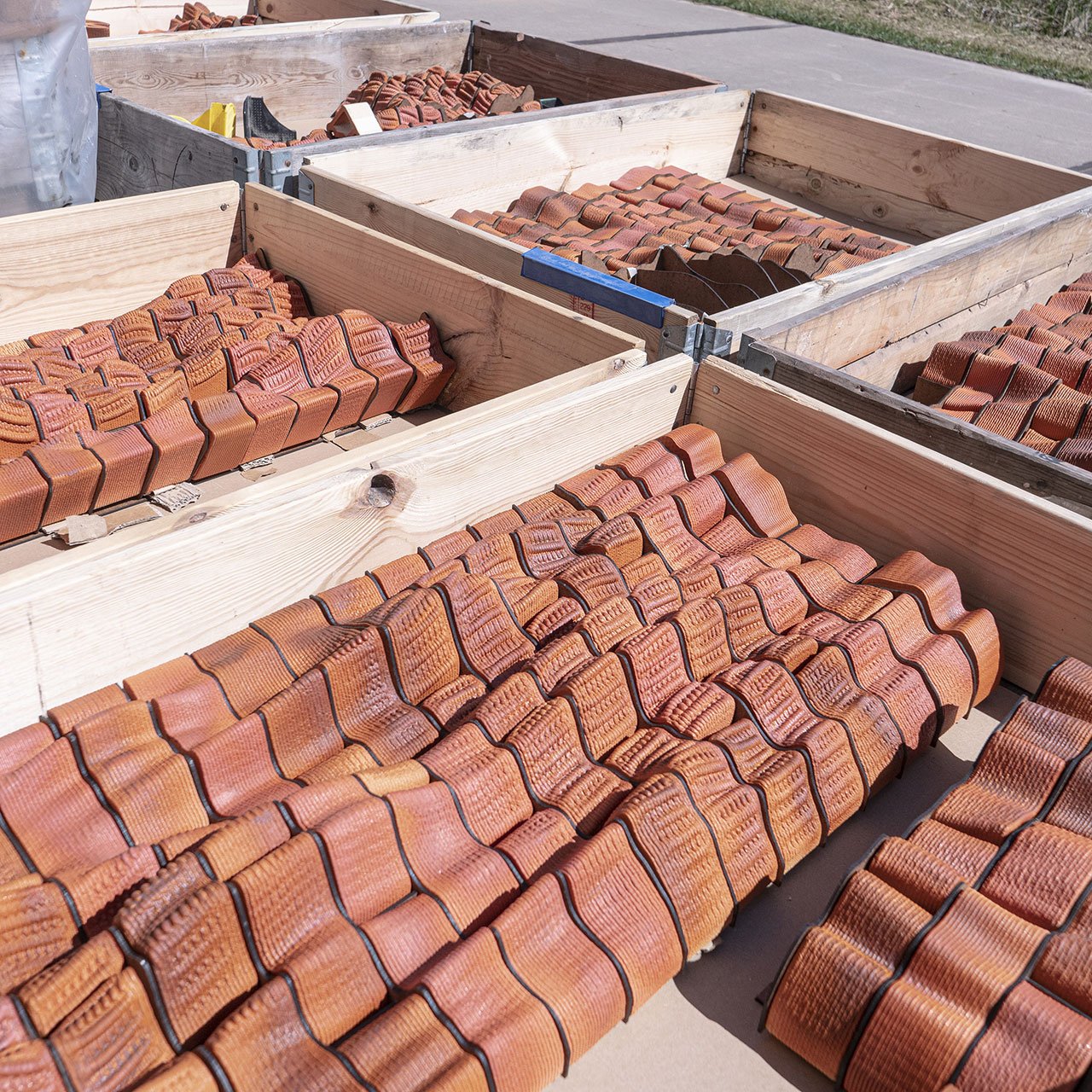

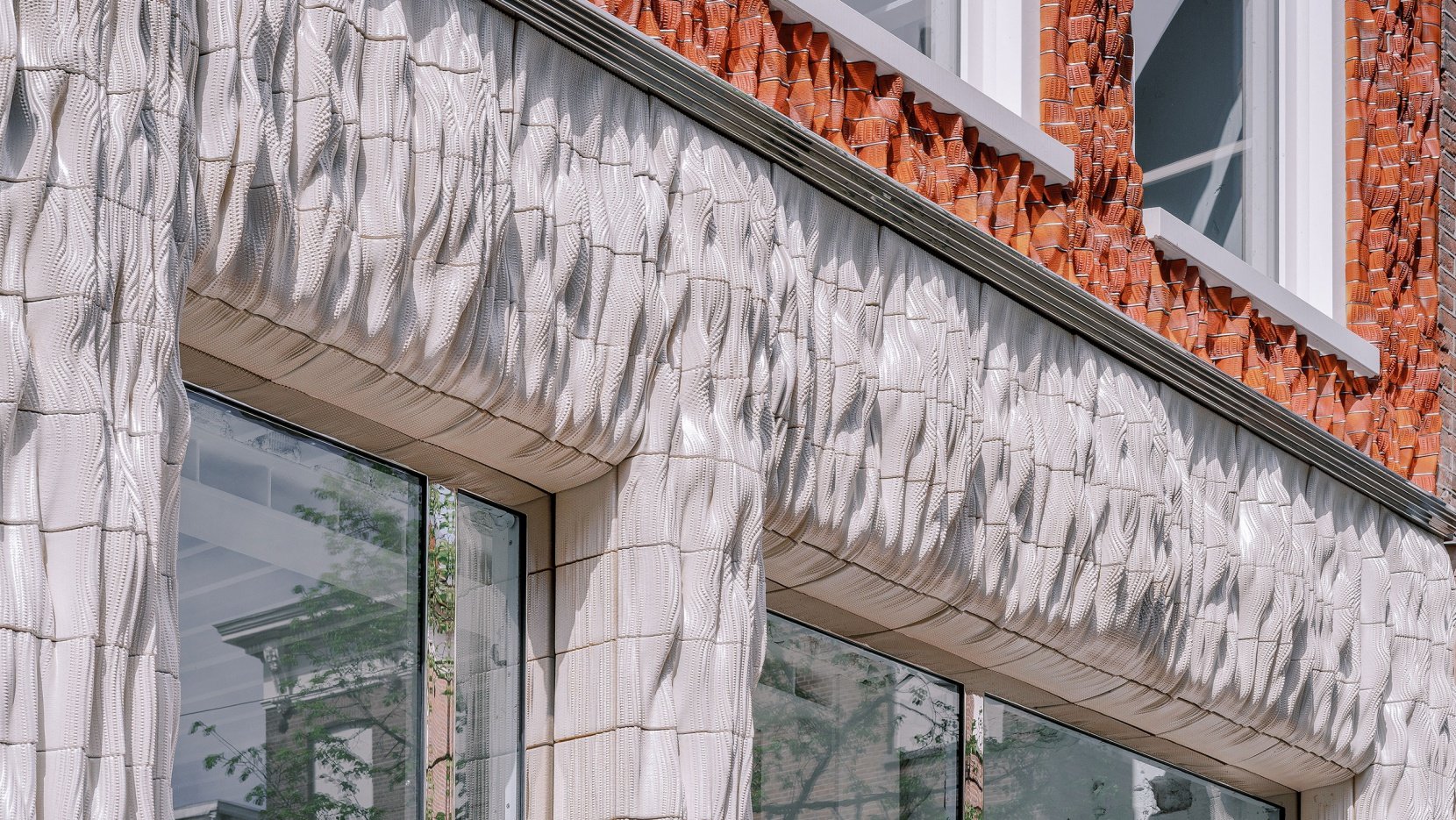

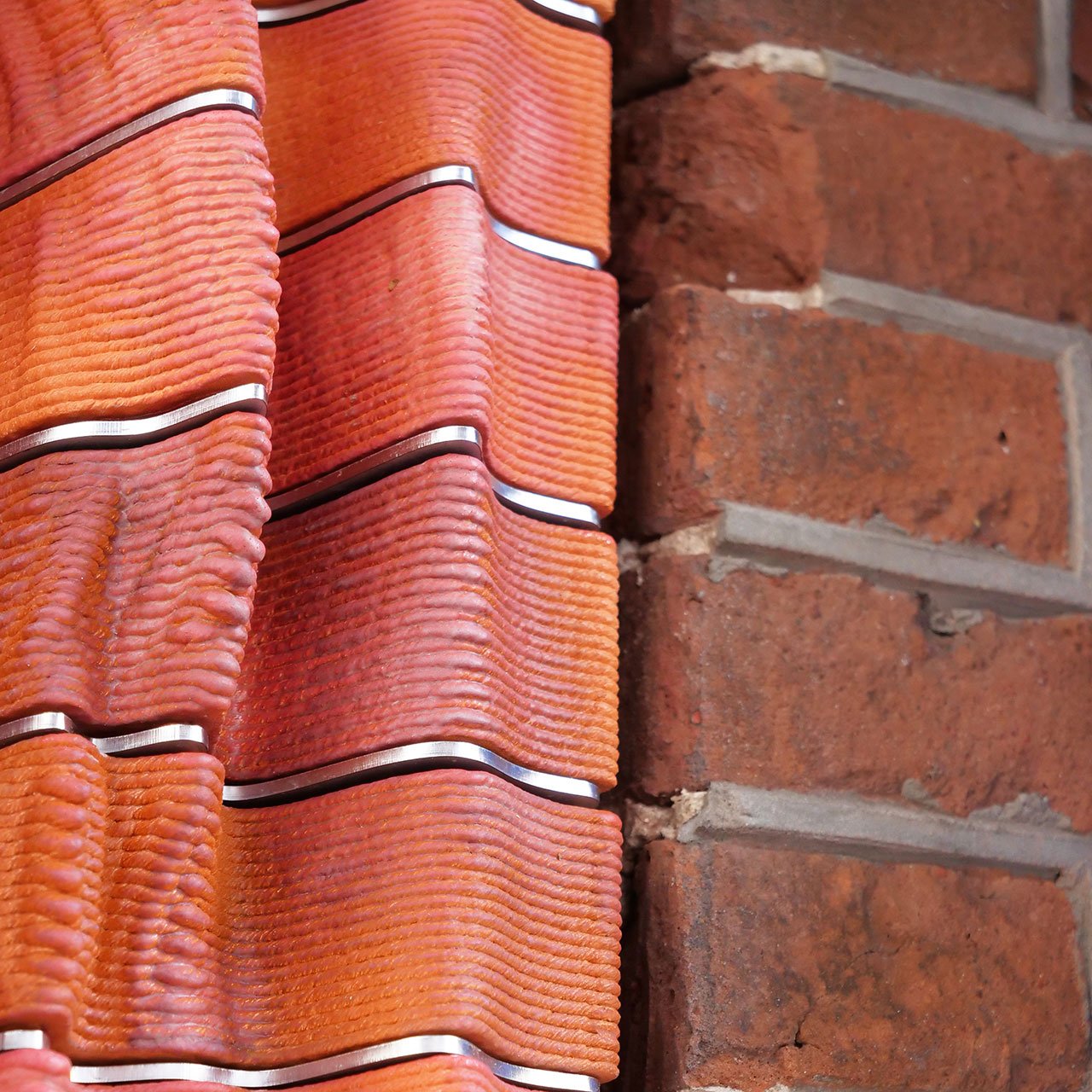

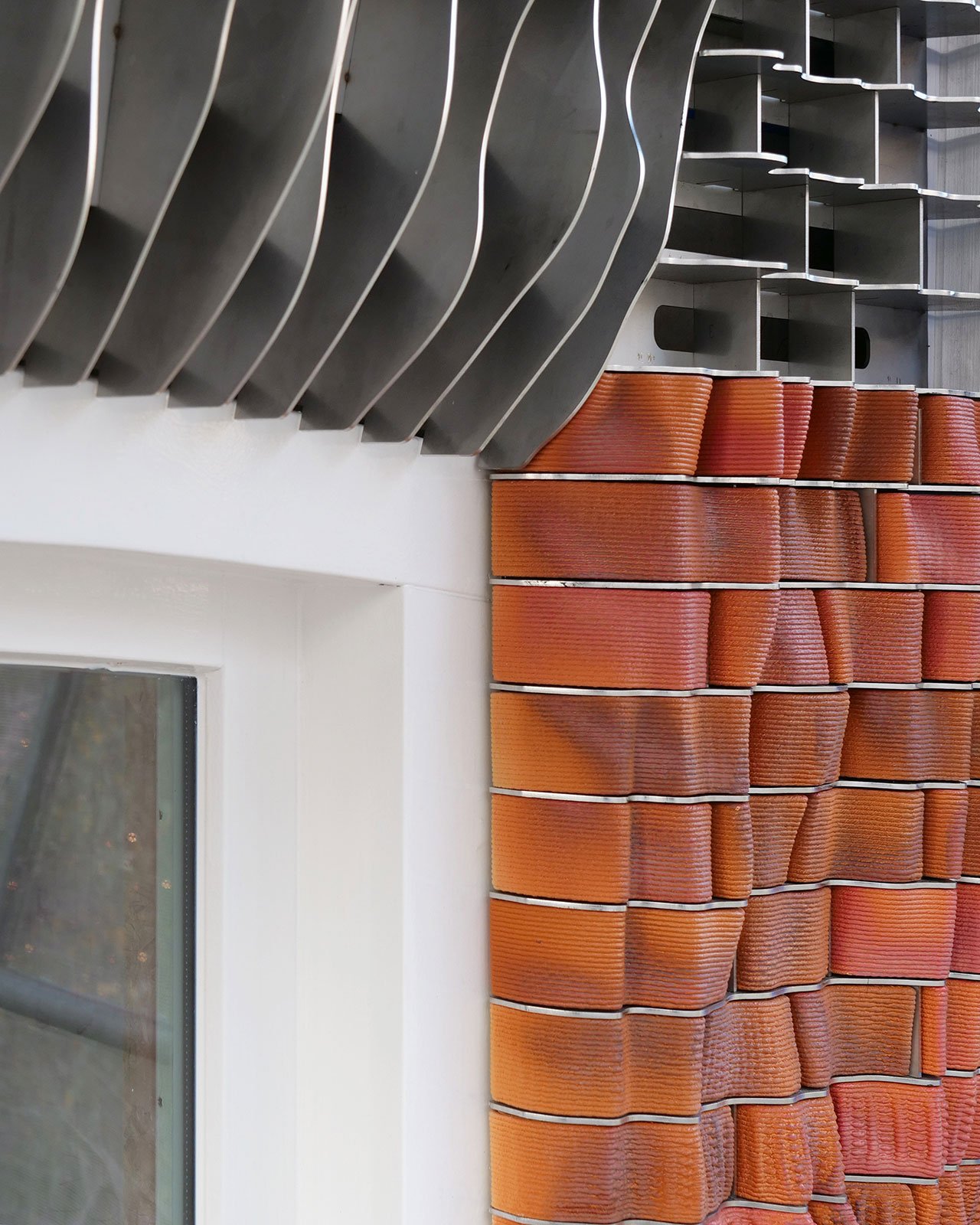

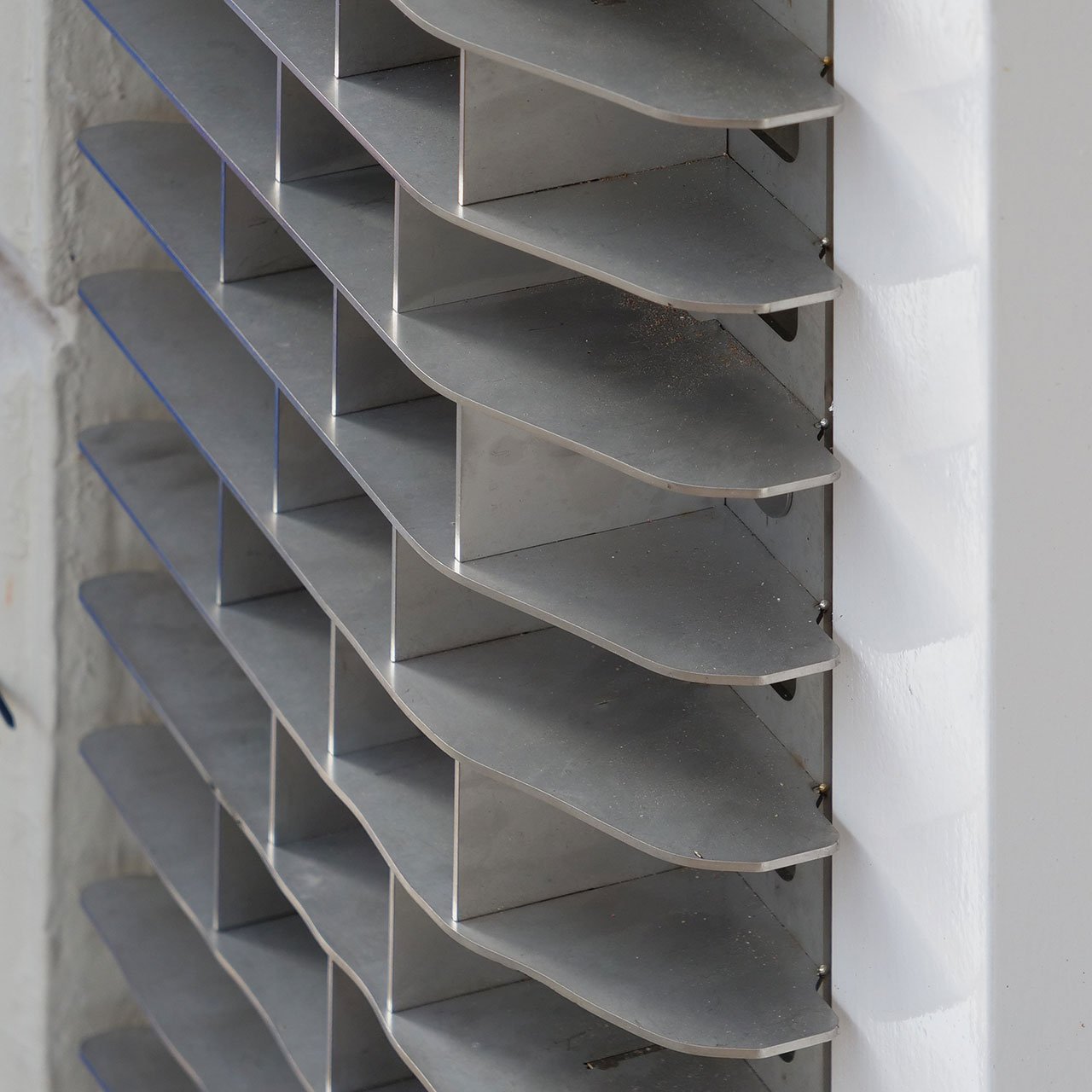

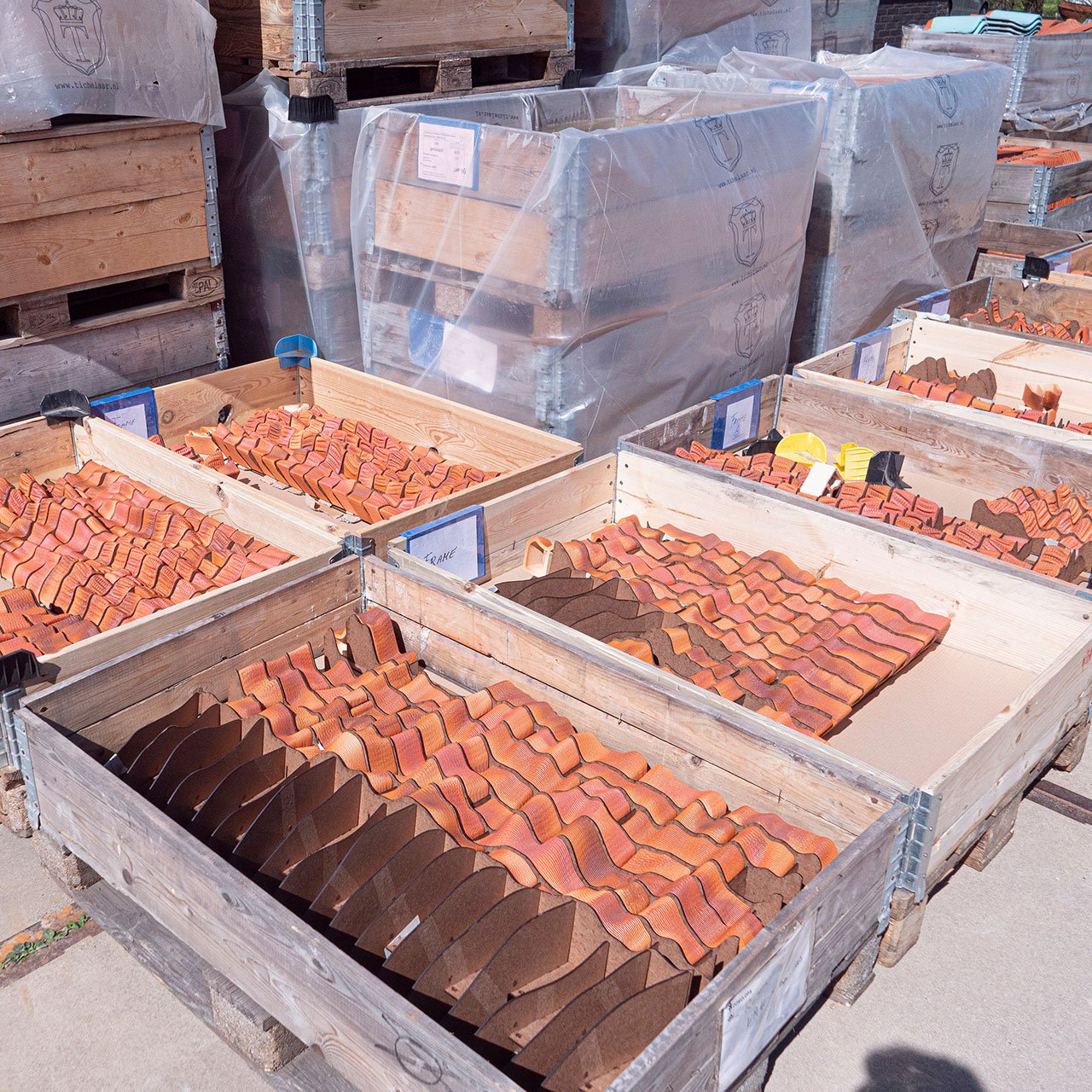

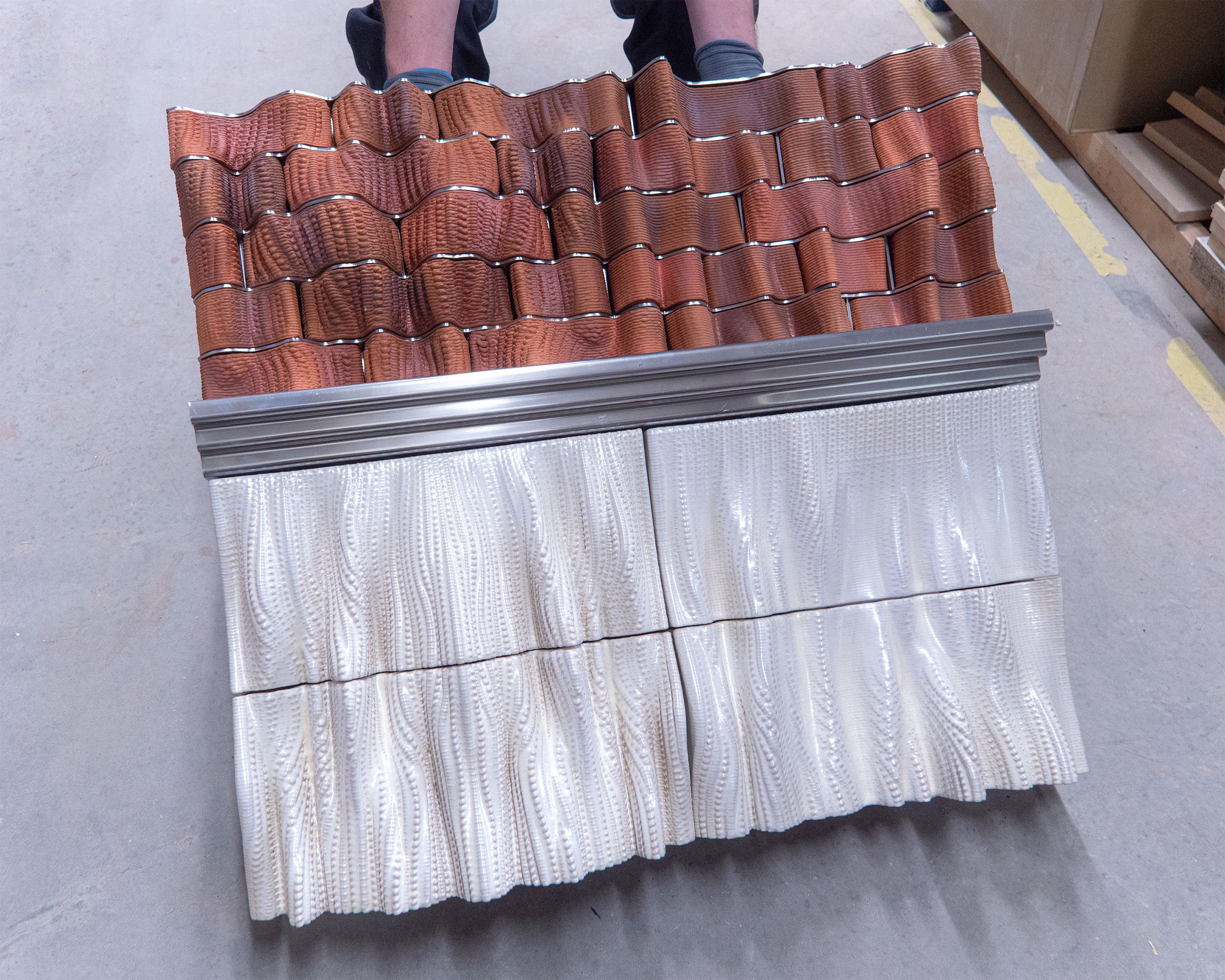

The choice of material was inspired by the celebrated ceramic collection of the Rijksmuseum, the national museum d urban fabric was preserving the original façade’s silhouette, notably the characteristic tripartite configuration, and synchronizing the size and colour of the ceramic tiles with neighbouring buildings. At street level, larger tiles glazed in pearl white with a subtle touch of yellow echo the street’s typical storefronts, while the upper levels are swathed in three shades of red. Smaller in size, the red-hued tiles match the dimensions of traditional brickwork, with the laser-cut stainless steel cassettes they are placed in emulating traditional grouting.

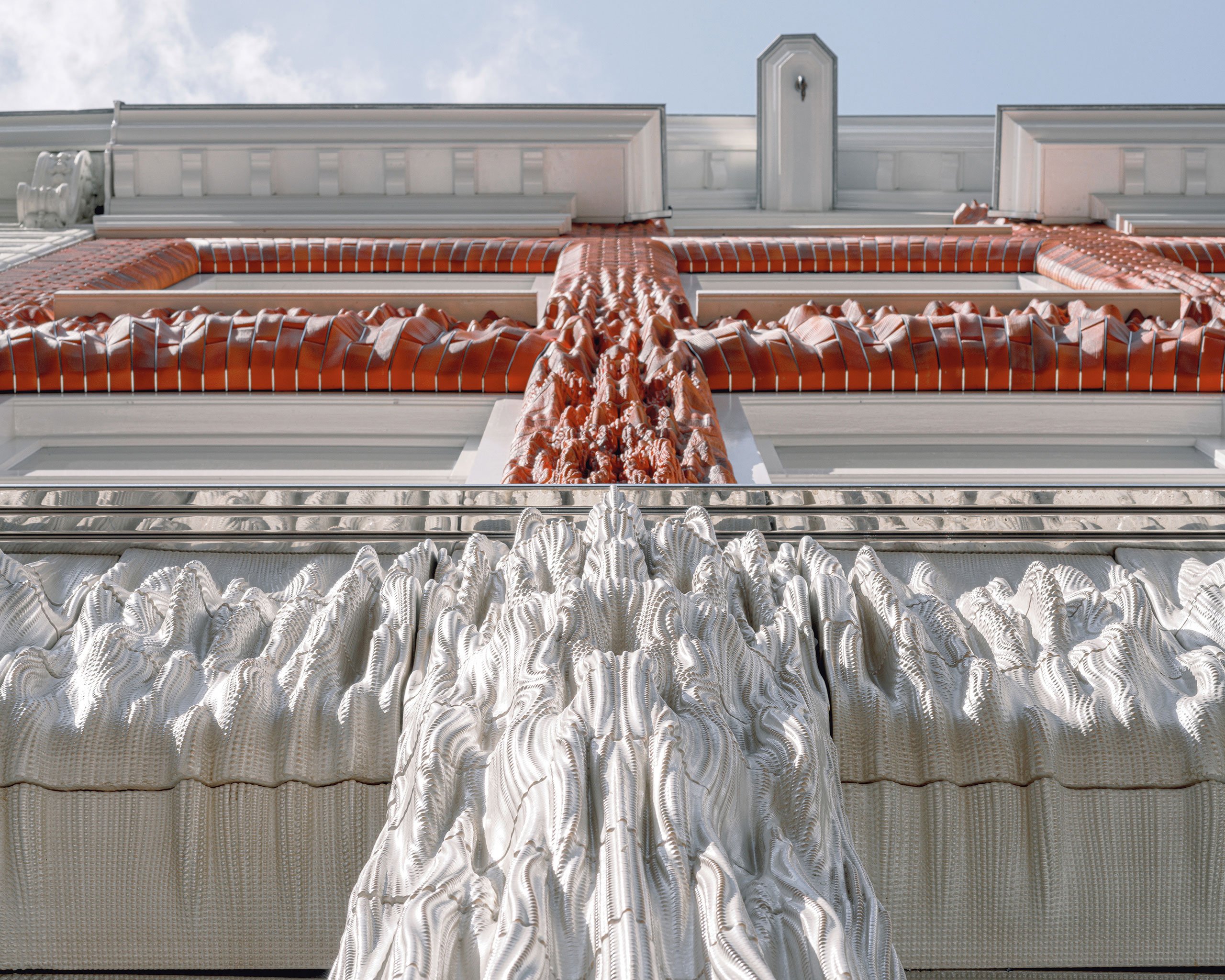

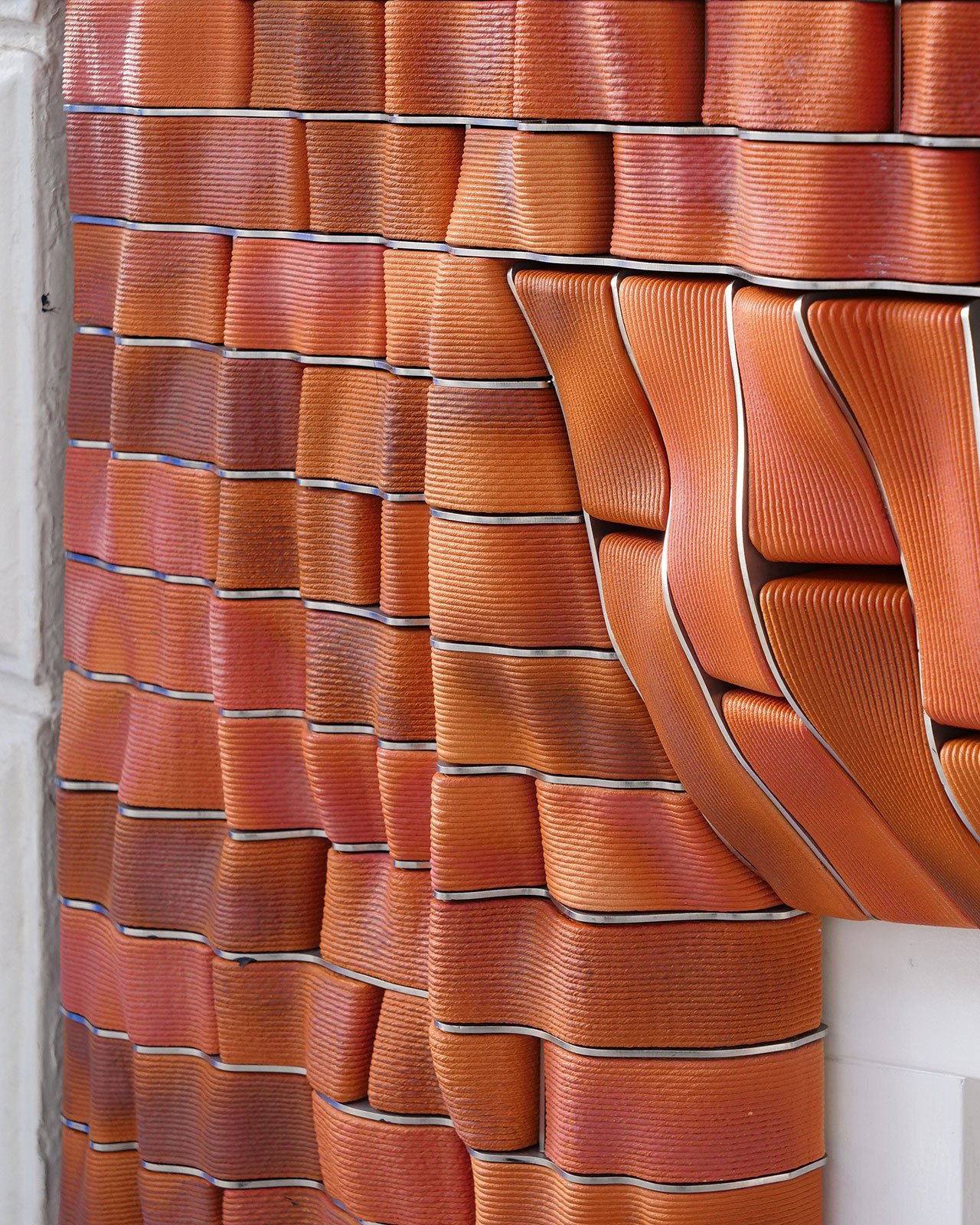

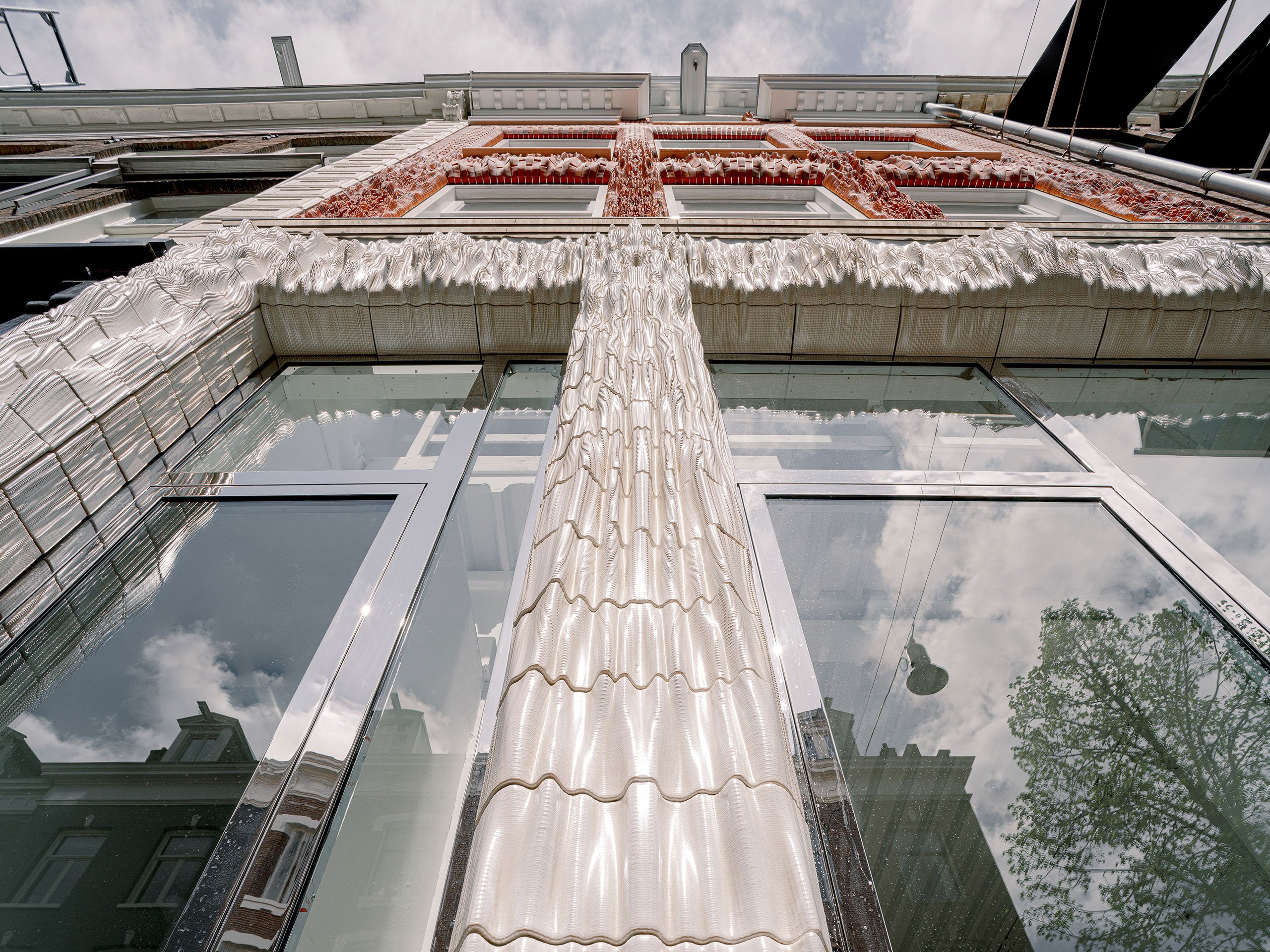

Both sections feature visually expressive areas with pronounced three dimensional forms that gradually transition to flush alignment towards the ground and the second storey. The organic, wave-like quality of these areas changes as passers-by approach the design from different angles, further enhancing the project’s sculptural sensibility and underlining its organic connection with the city.
