[ BGP Arquitectura + AT 103 ] “Ave Fenix” fire station

Architects: BGP Arquitectura / AT 103
Location: Colonia Juarez, Mexico City, Mexico
Architects: Bernardo Gomez-Pimienta, Julio Amezcua, Francisco Pardo y Hugo Sanchez
Coordinator: Hermenegildo Acoltzin
Collaborators: Jessica Barba, Margarita Flores, Daniel Ramirez, Jorge Vazquez, Tiberino Wallentin
Design Year: 2005
Construction Year: 2006
Services: GLM Ingenieria S.A. de C.V.
Contractor: SARE S.A.
Digital Model: Axel Fridman, Tristan Dieguez
Model: Miguel Rios, Victor Hugo Flores
Constructed Area: 2,400 sqm
Photographs: BGP Arquitectura

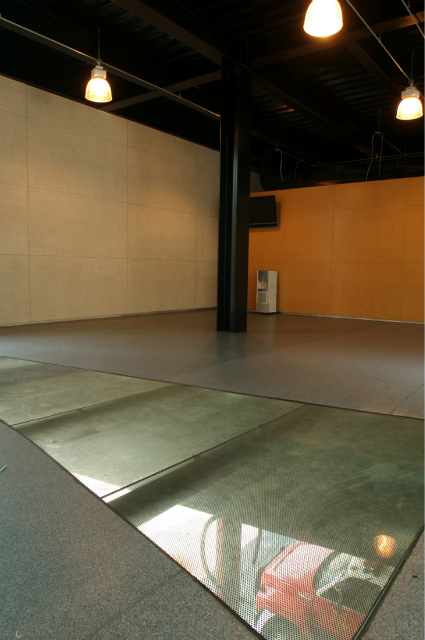

The program includes, in addition to the Firemen station itself, a space of consultation and training center open to the public, both activities must be executed separately and never the presence of the visitor should interfere in the work of the firemen.

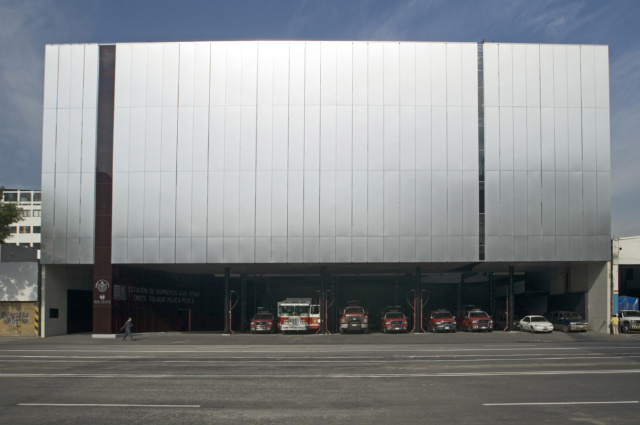

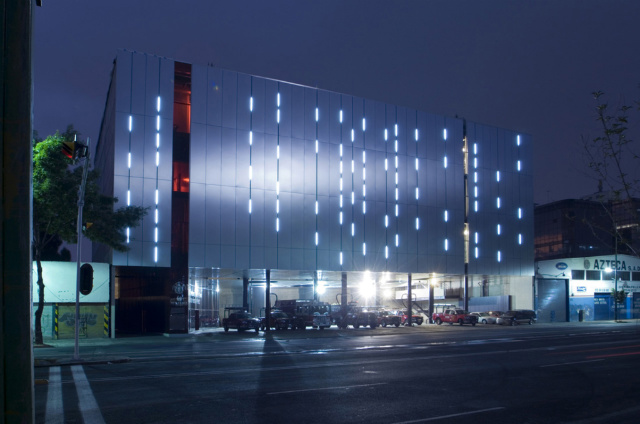

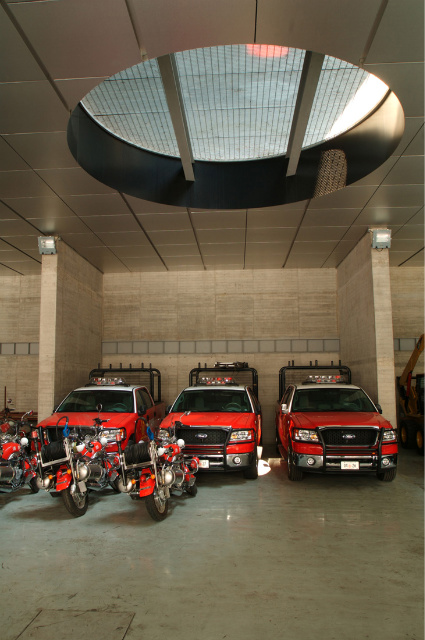

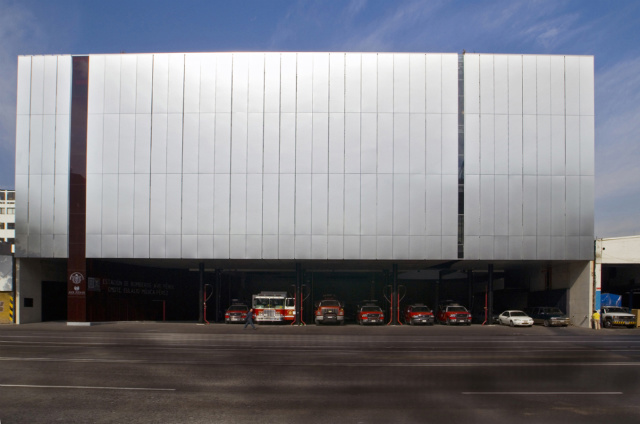

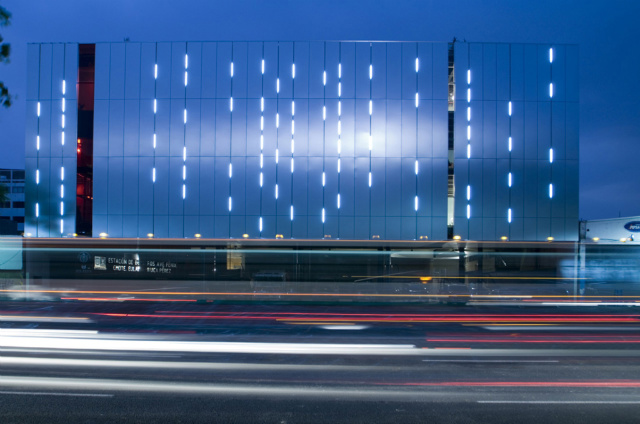

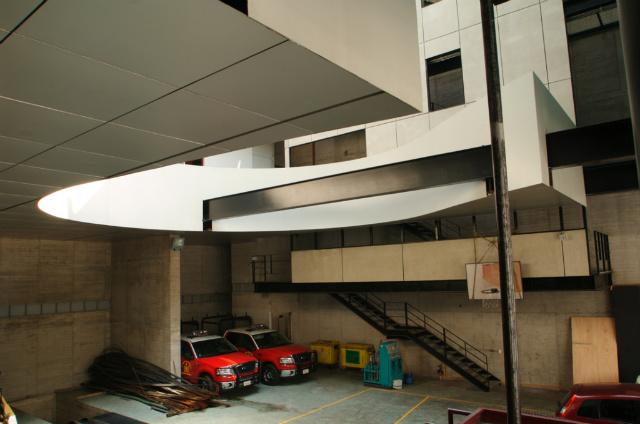

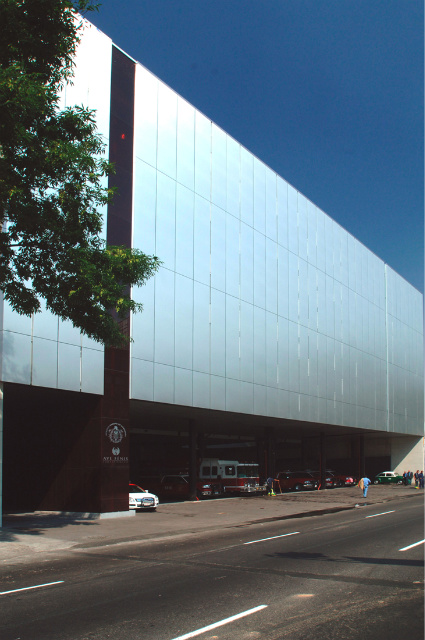

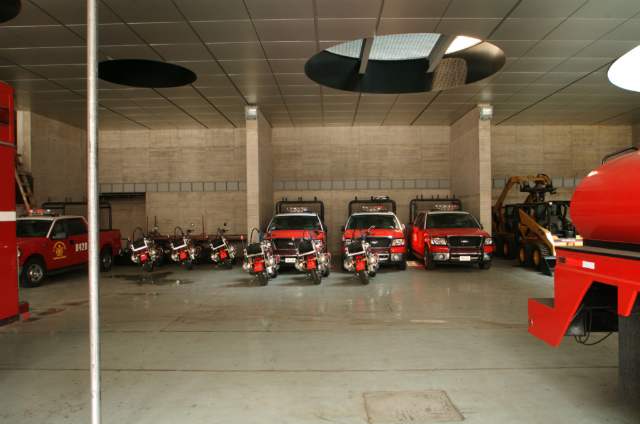

The design chosen for the station appears towards the outside like a simple high box that it almost disappears after a facade that plays with the context in a game of reflections, floating on the patio of maneuvers and the pump cars parking area; this space extends towards the street or, in inverse reading, incorporates the urban space.

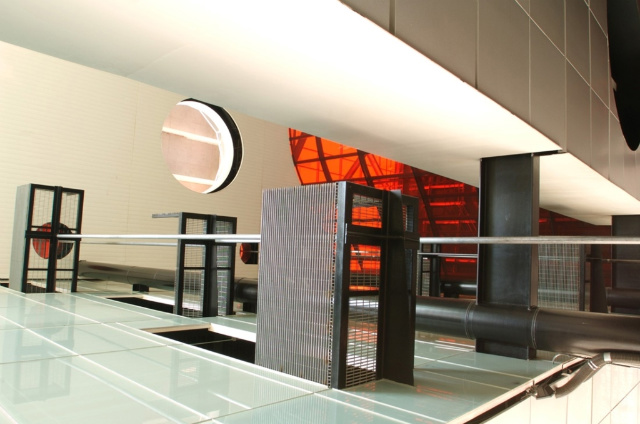

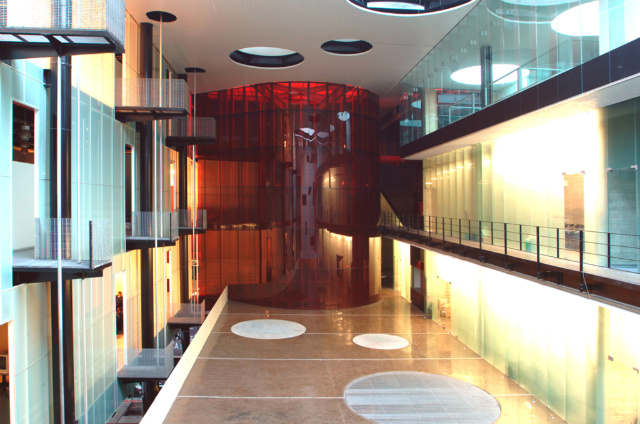

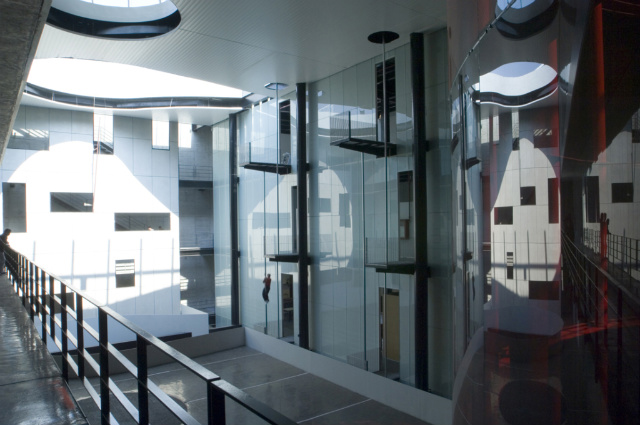

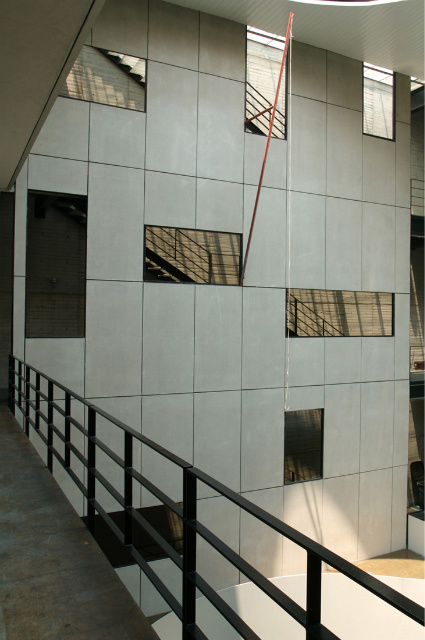

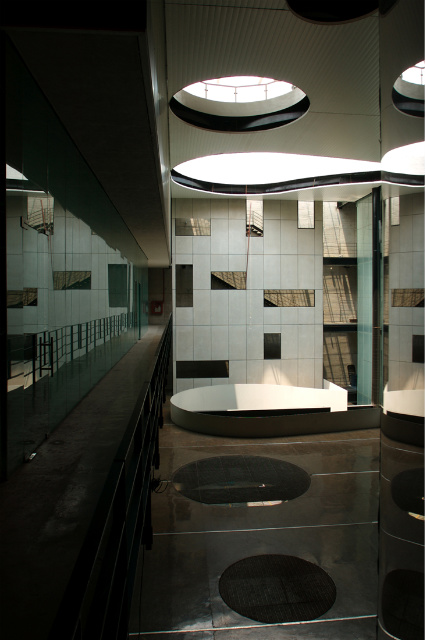

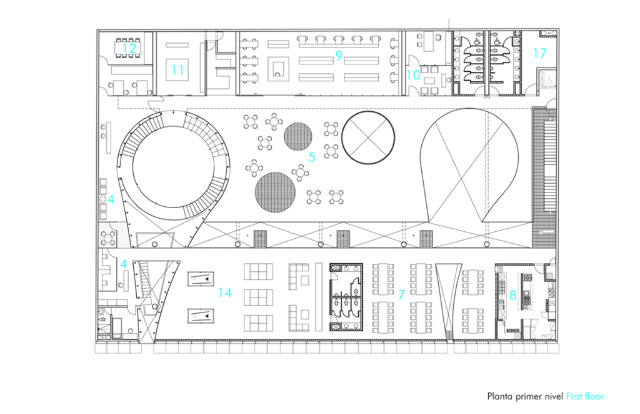

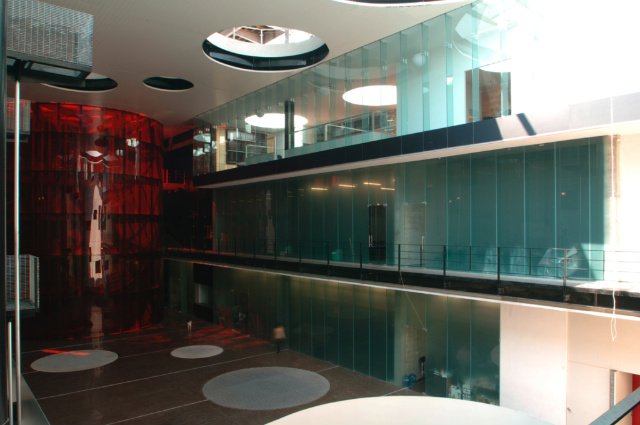

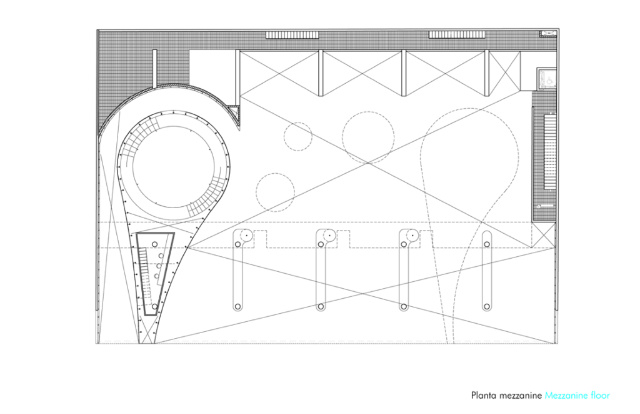

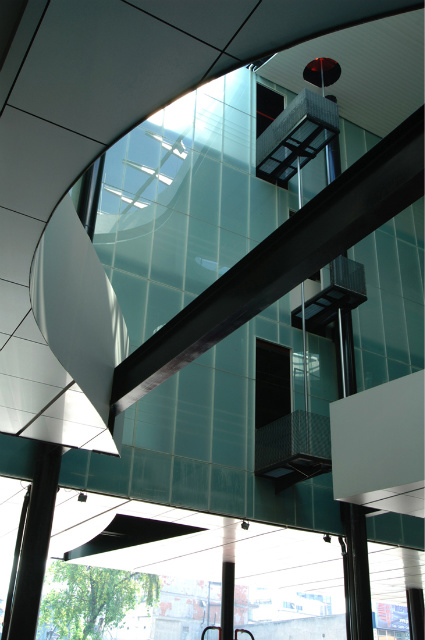

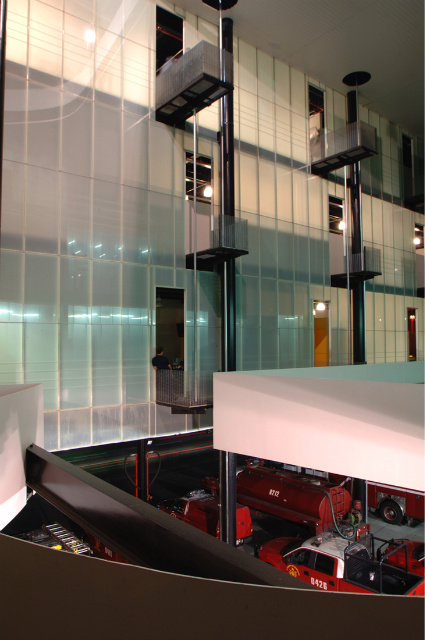

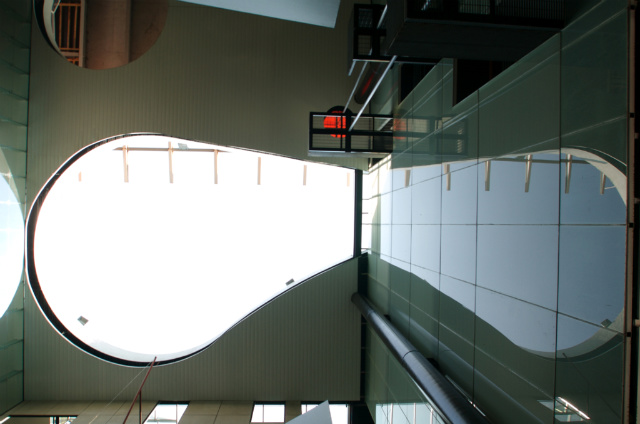

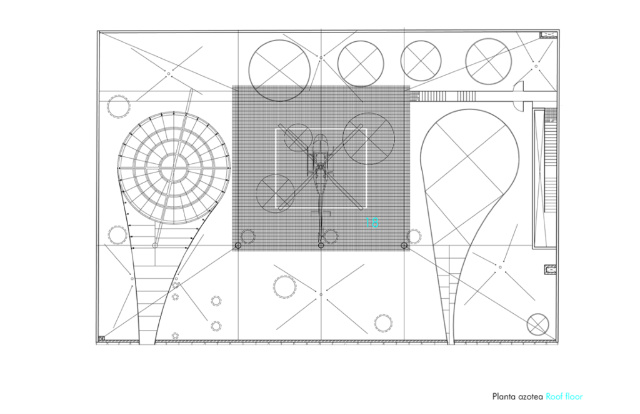

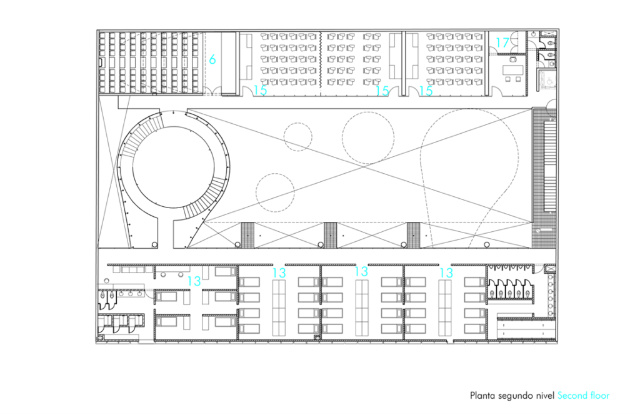

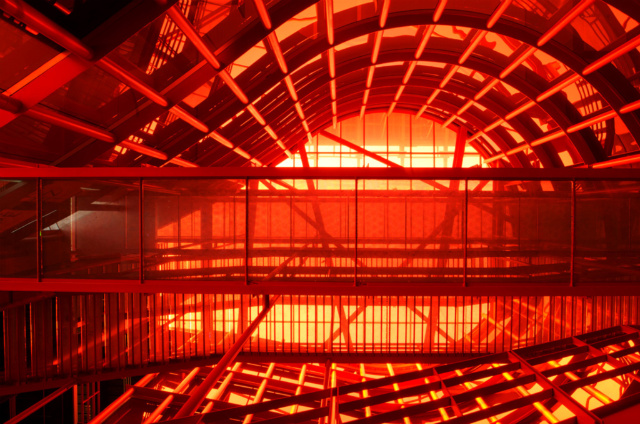

Within the chromed box, both uses are alternated and complemented, organized by planes with holes in different sizes and shapes that allows natural lighting and communicates the different levels. In the case of the main access, the double stair proposed, separated the flow of the employers and the visitors and goes from the level of visitor access to a heliport in the roof. This vertical circulation was complemented by the classic tubes where the firemen descend faster. Thus, making them coexist thanks to the views crossed in the main patio, but without mixing them, the proposed solution is able to resolve both uses - the station requirements and the public areas -
