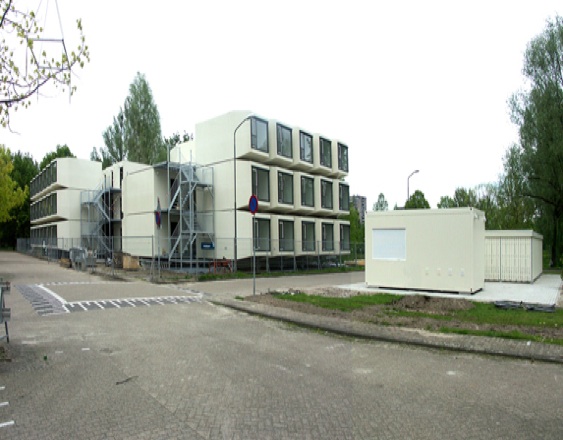

[ Spacebox ] Spacebox Eindhoven 2005 TUe

Designer: Spacebox
Location: Eindhoven, Netherlands
Spacebox® is a new and innovative building system. Spacebox® is a registered trademark for a light weight prefab building system for semi-permanent and permanent solutions.

What is Spacebox^® ?
Spacebox^® is a new and innovative building system.
Spacebox^® is a registered trademark for a light weight prefab building system
for semi-permanent and permanent solutions.

Panel specifications
Each unit is built up with 5 composite panels. Each panel consists of a fire resistant material, a Resol^® foam core and a very smooth polyester exterior finish. Total panel thickness is 88mm for walls and total panel thickness for floor and ceiling is 110mm.
Both panels and the total building system have been tested thoroughly according to the building regulations (Bouwbesluit) of The Netherlands.

Fire specifications
For our panels we use the safest possible materials. The panels have been thoroughly tested and meet the building regulations of the Bouwbesluit of The Netherlands.

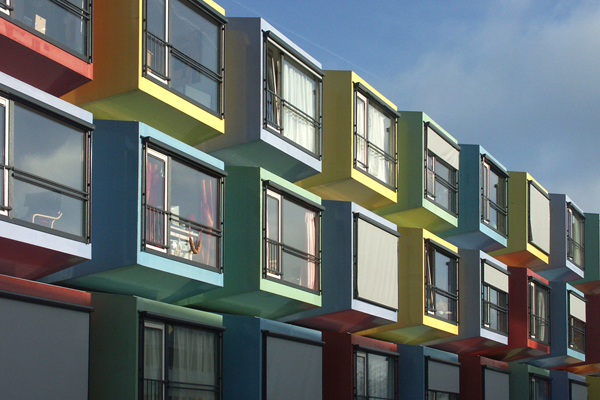

Colours
We are able to produce Spacebox^® in any desired colour.
However, for projects in sunny climate we advise to use very light colours because of the risk of UV fade.

Flexibility
The production method of the Spacebox^® system offers us much freedom of design.
In principle it is possible to realise a custom-made according to the wishes of the principal. Apart from this, it is possible to connect the units horizontally or vertically in any desired combination.
Also all internal build out elements such as kitchens and bathrooms can be designed according to the wishes of the principal.

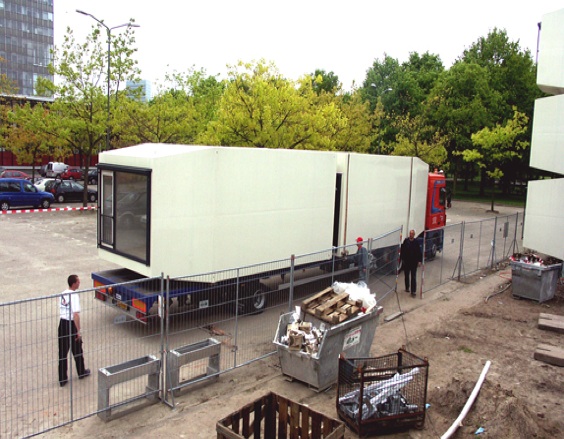

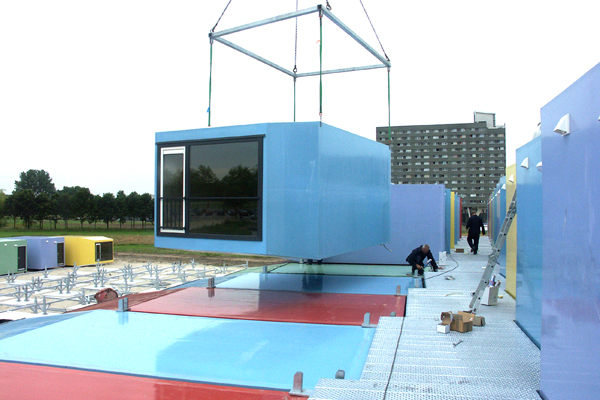

Fast production

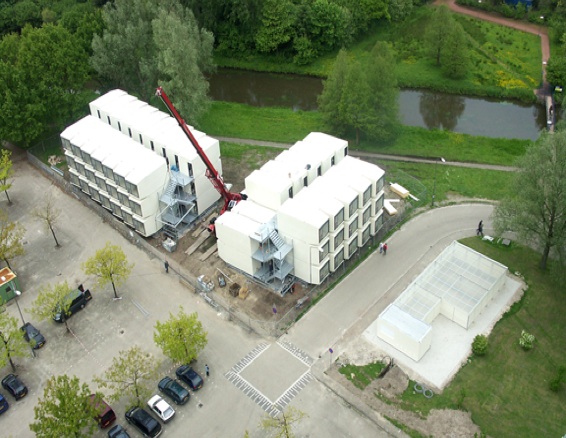

Spacebox^® units are produced completely turn key in a factory and assembled on site to form complete buildings. If neccesary we are able to deliver and erect up to 10 units per day.

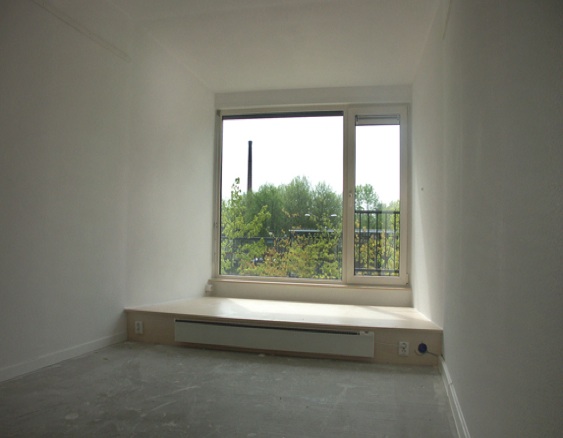

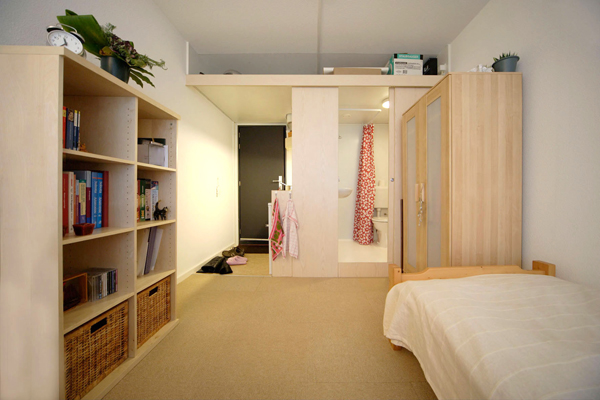

Interior
The production method of the Spacebox^® system offers us much freedom of design.
In principle it is possible to realise a custom-made design according to the wishes of the principal. Apart from this, it is possible to connect the units horizontally or vertically in any desired combination.
Also all internal build out elements such as kitchens and bathrooms can be designed according to the wishes of the principal.

Sustainibility
With a minimum insulation rate of Rc = 3,5, up to Rc 4,2 Spacebox^® has an
excellent insulation rate.
These values implicate a remarkable lower energy waste than comparable unit building concepts.

Life expectation of units
30-60 years, depending on specification.
