Studiolada-Wooden Hall in Ancy-Dornot
다양한 지역문화활동을 지원하기 위한 파빌리온이 제안된다. 배구, 농구, 핸드볼, 스케이트보드 또는 바이크로스와 같은 각종 스포츠활동을 지원하는 동시에 뮤지컬, 연극, 댄스공연 등을 지원한다.
4미터 간격으로 설계된 9개의 모듈로 이루어져 있으며, 1.5M 매트기초로와 연결되어 있다.

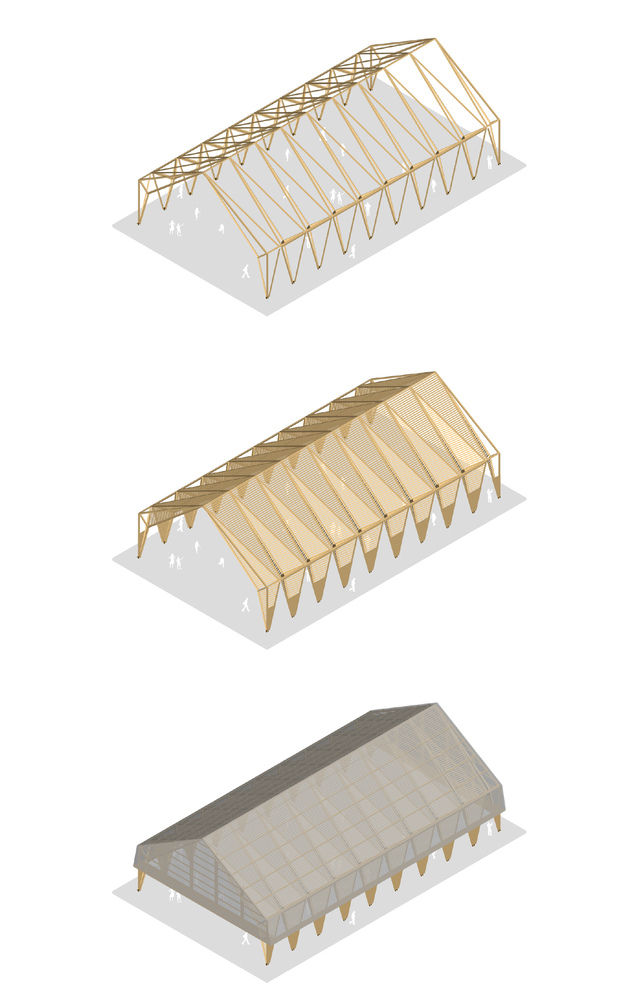

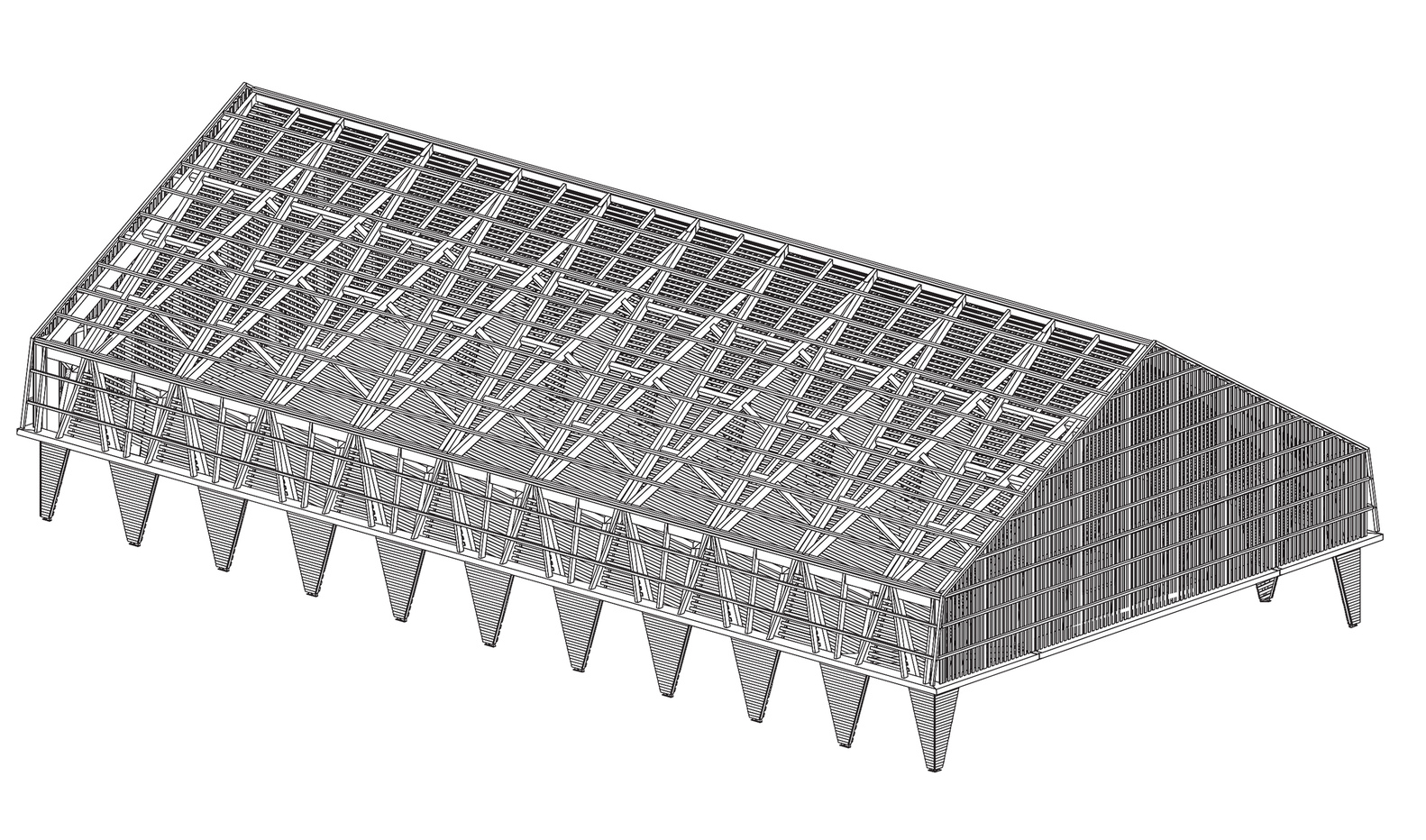

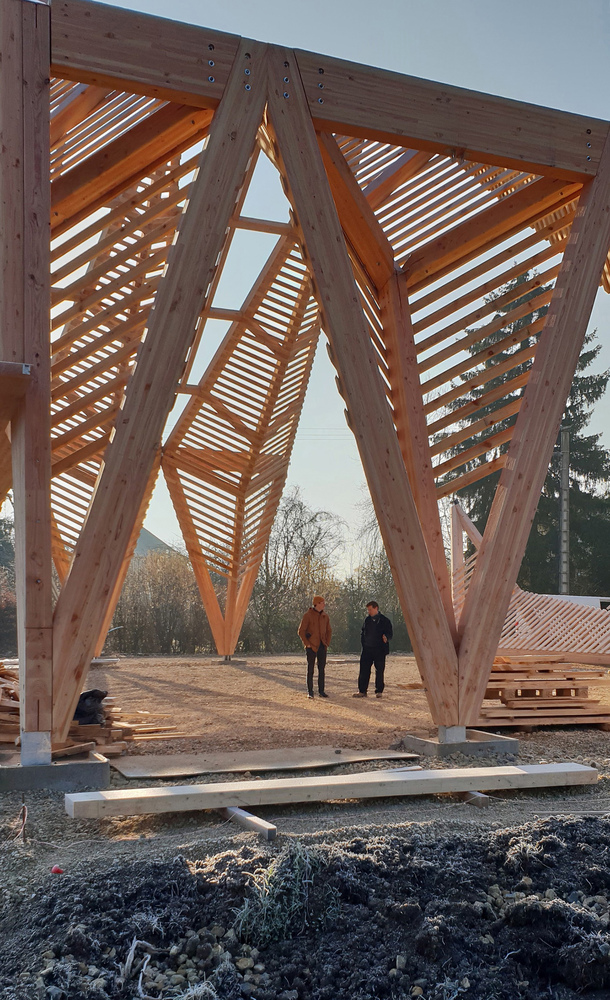

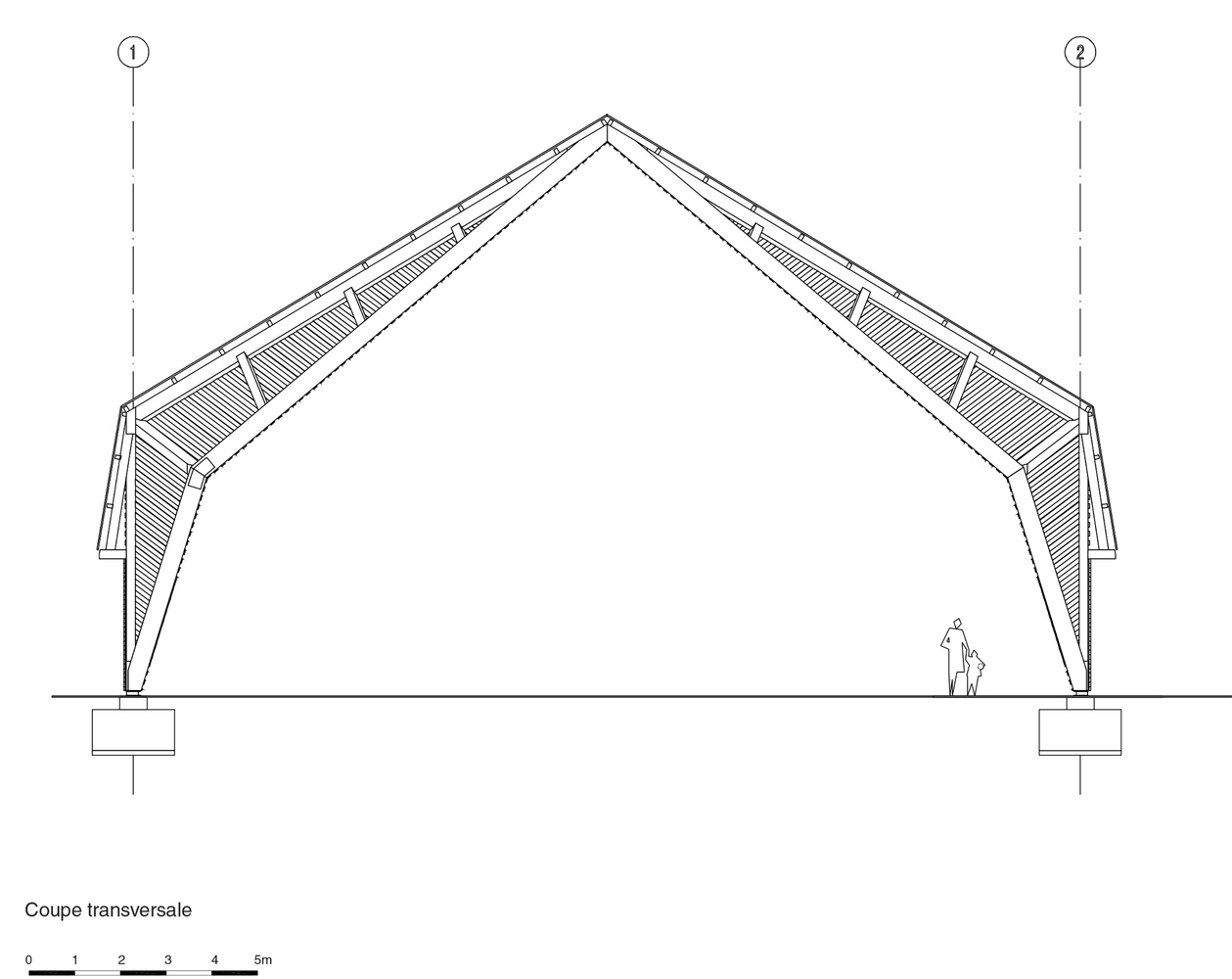

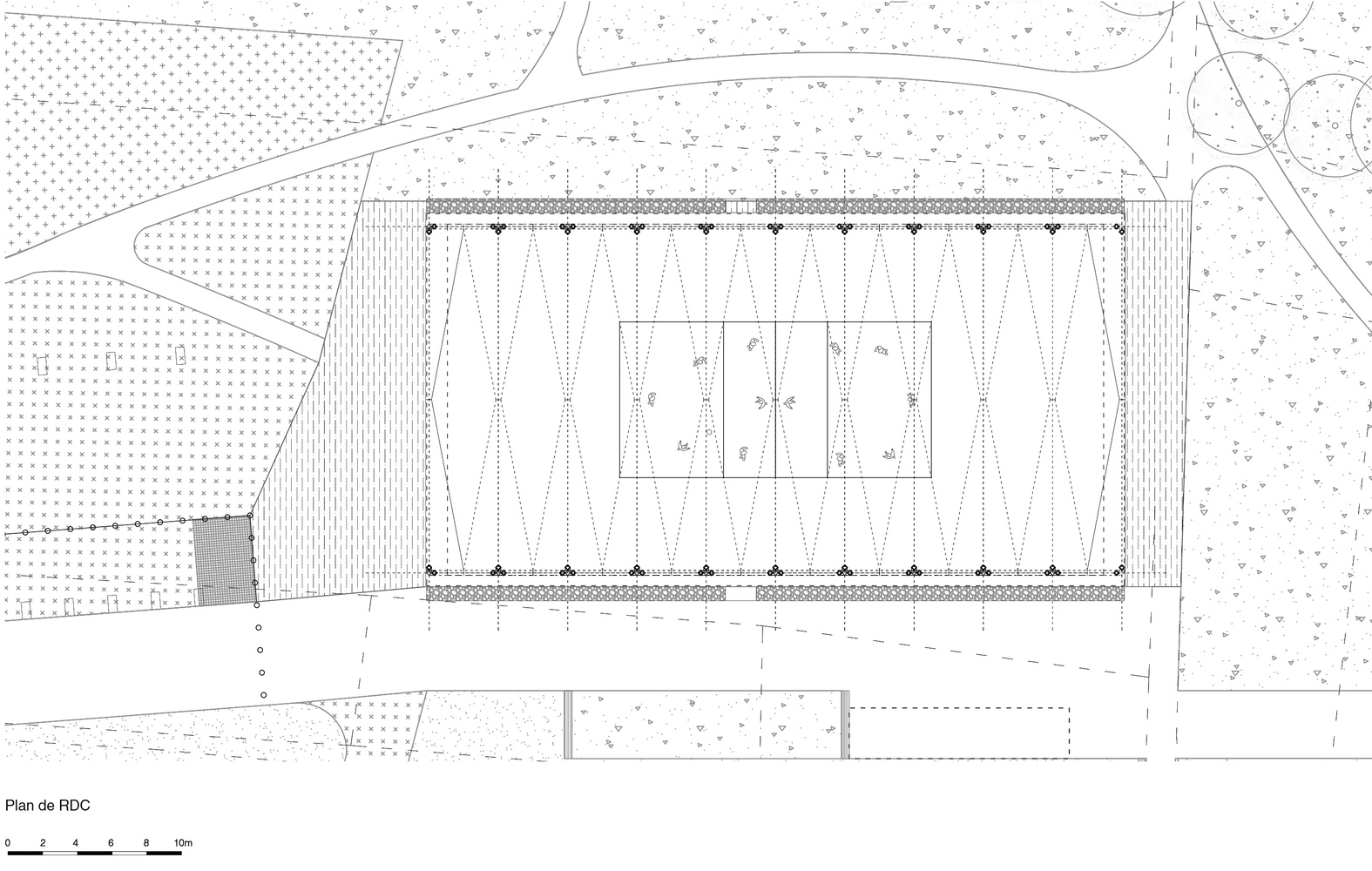

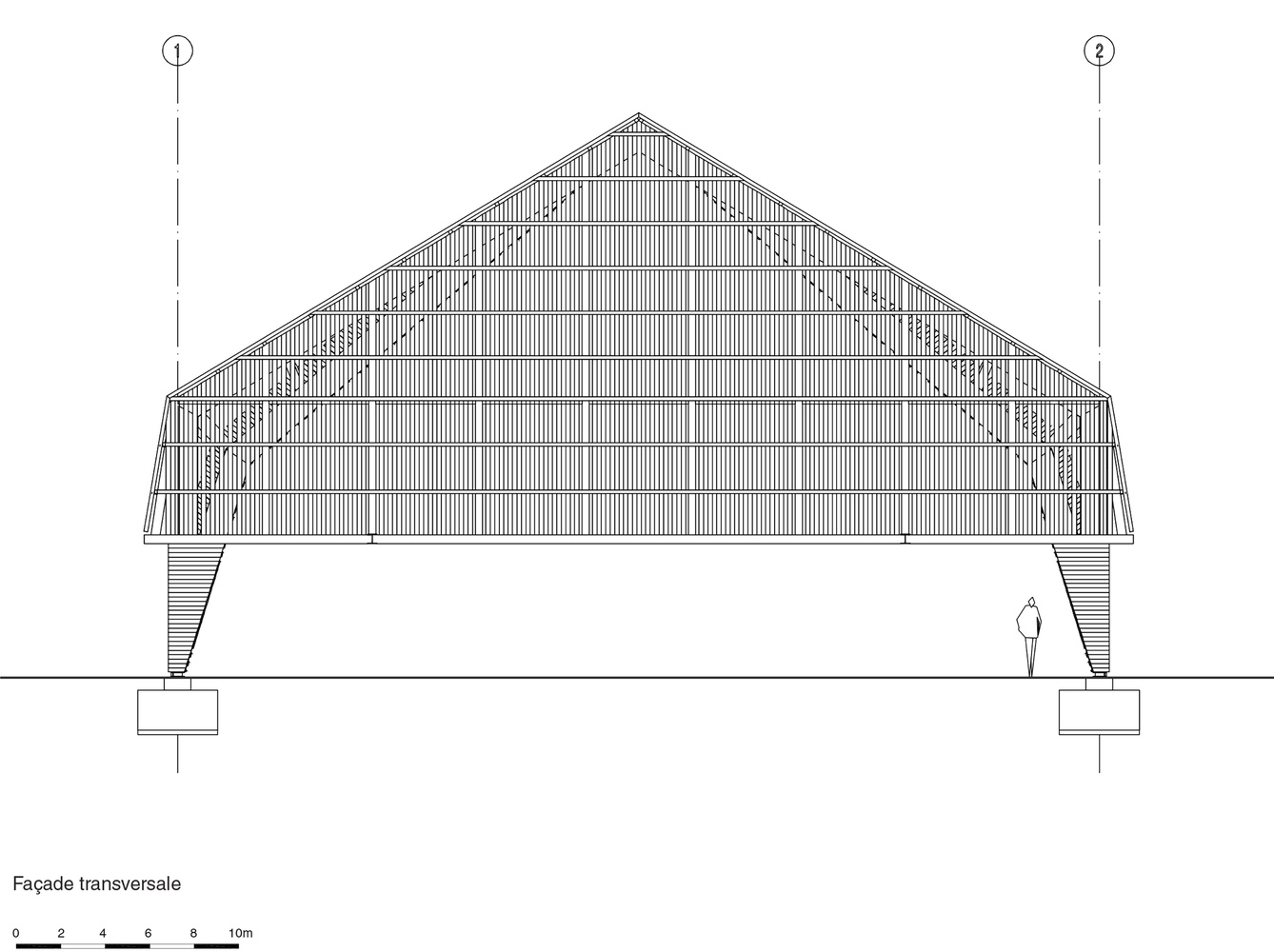

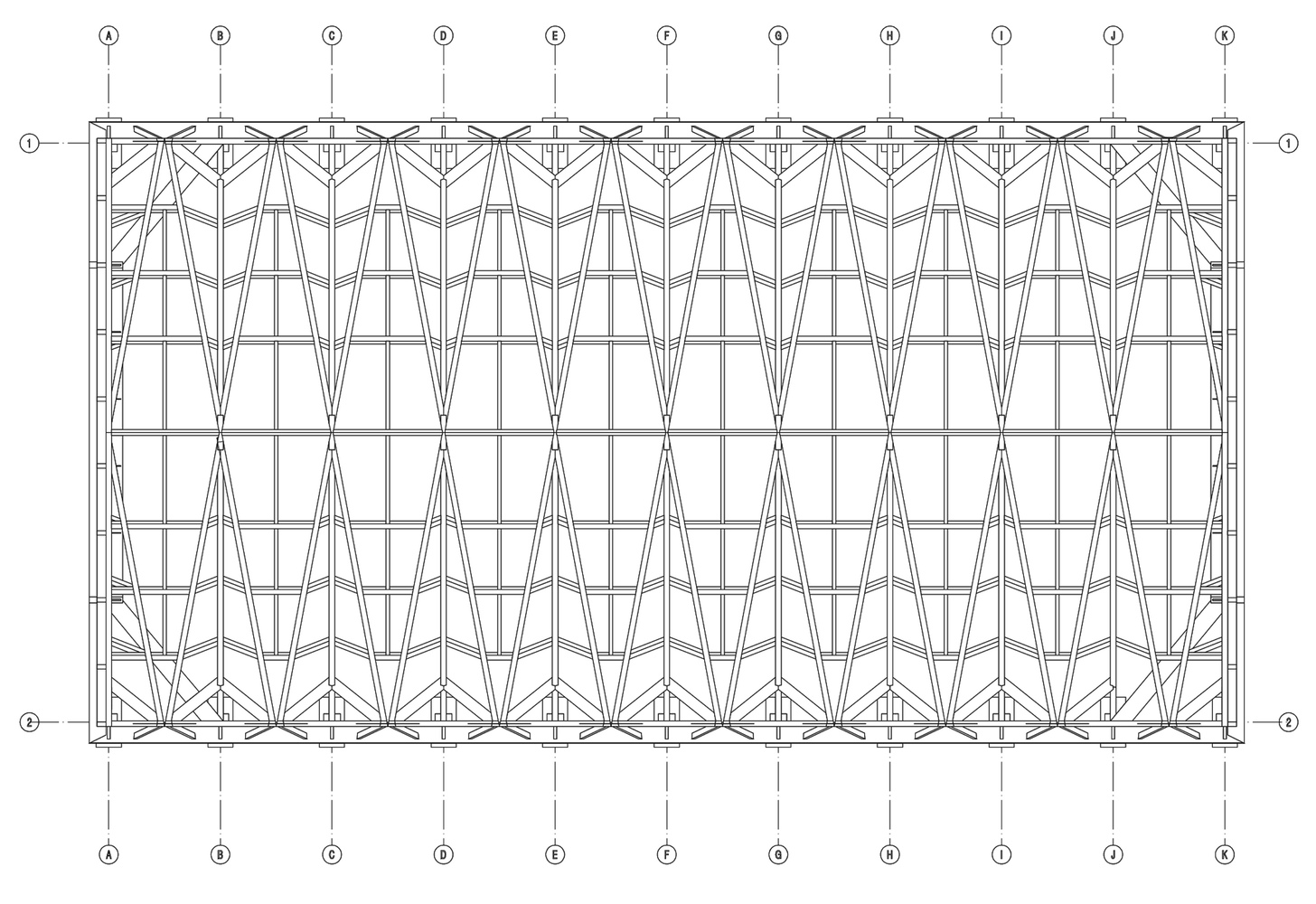

The structure of the building is composed of 9 spans placed every 4 meters and they are based on 20 concrete bases that are buried 1.5m into the ground. The floor is a huge concrete slab that gives flexibility to multiple activities.
The sports activities can be volleyball, basketball, handball, skateboarding or bi cross; the cultural activities can be musical, theater, dance performances and especially in this village the tradition of an annual “duck fair”; the commercial activities like markets of organic, wine products or even garage sale.

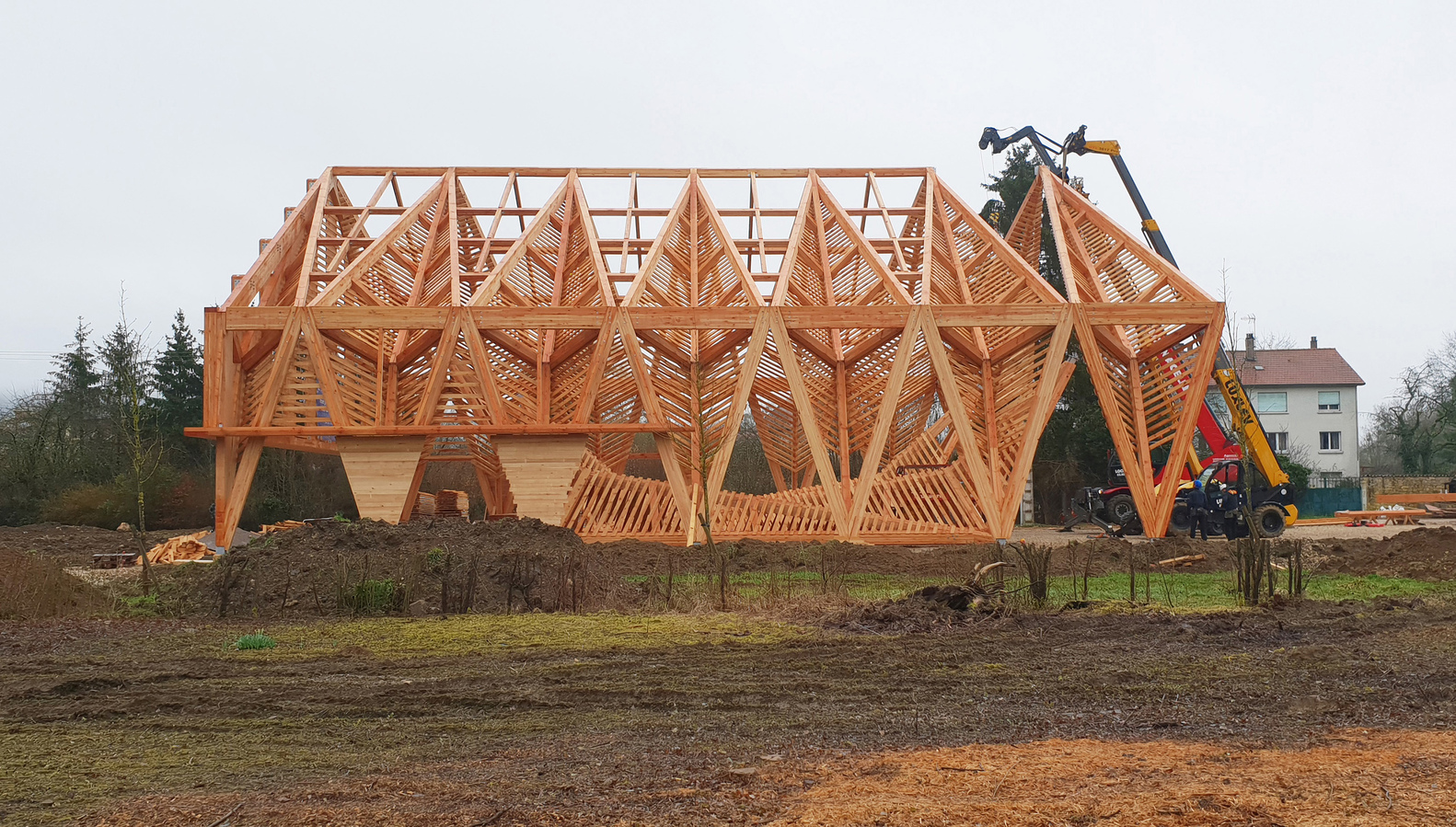

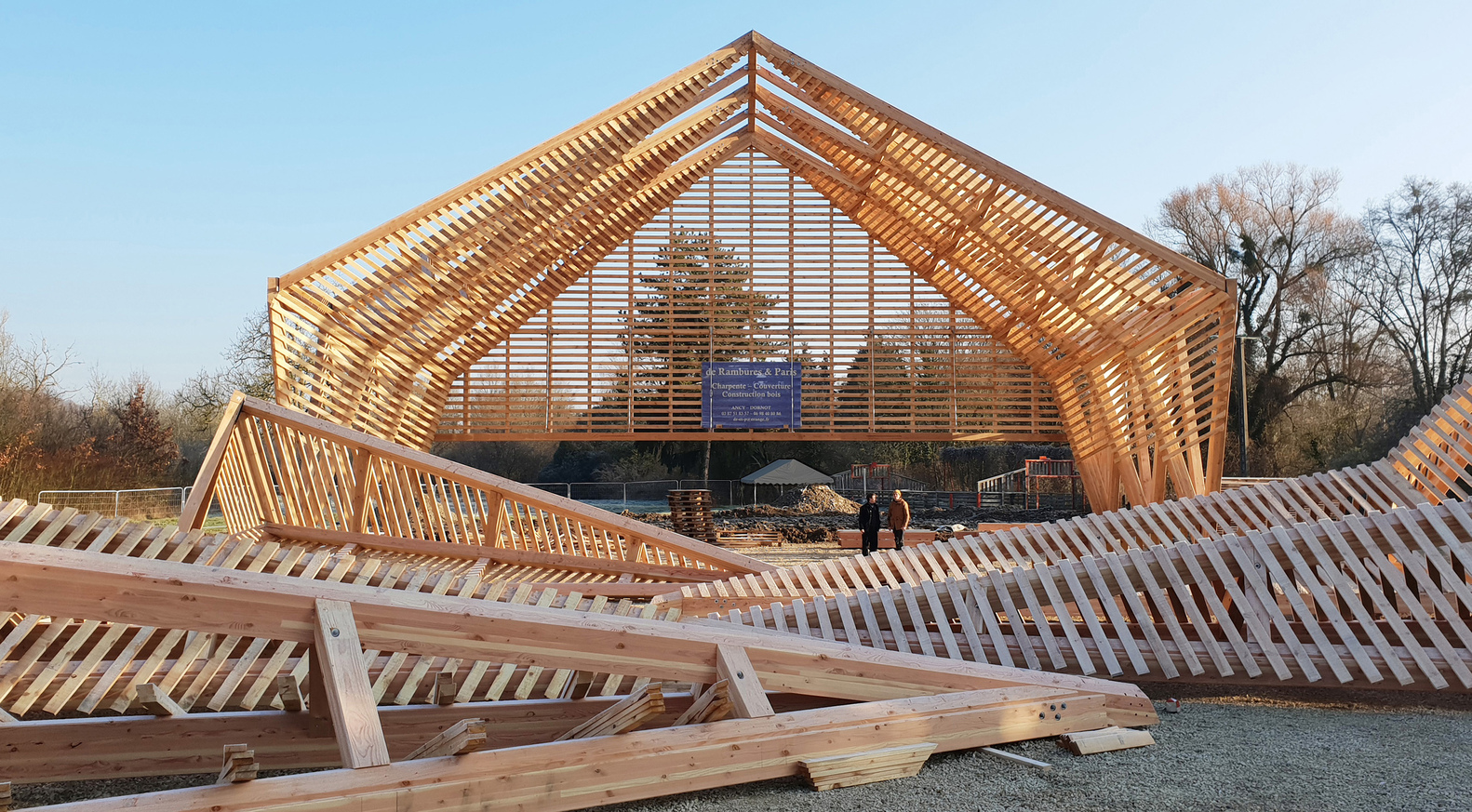

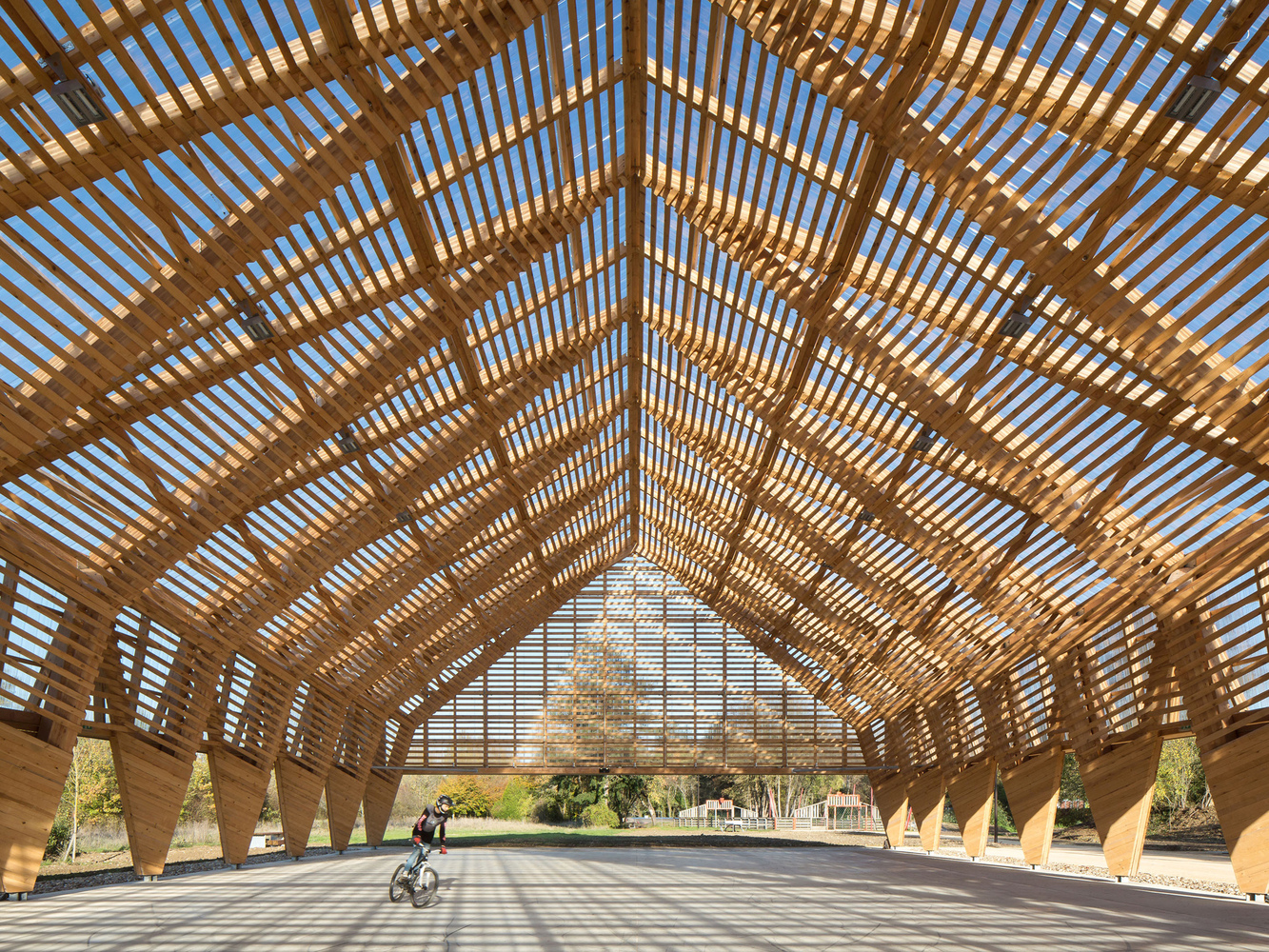

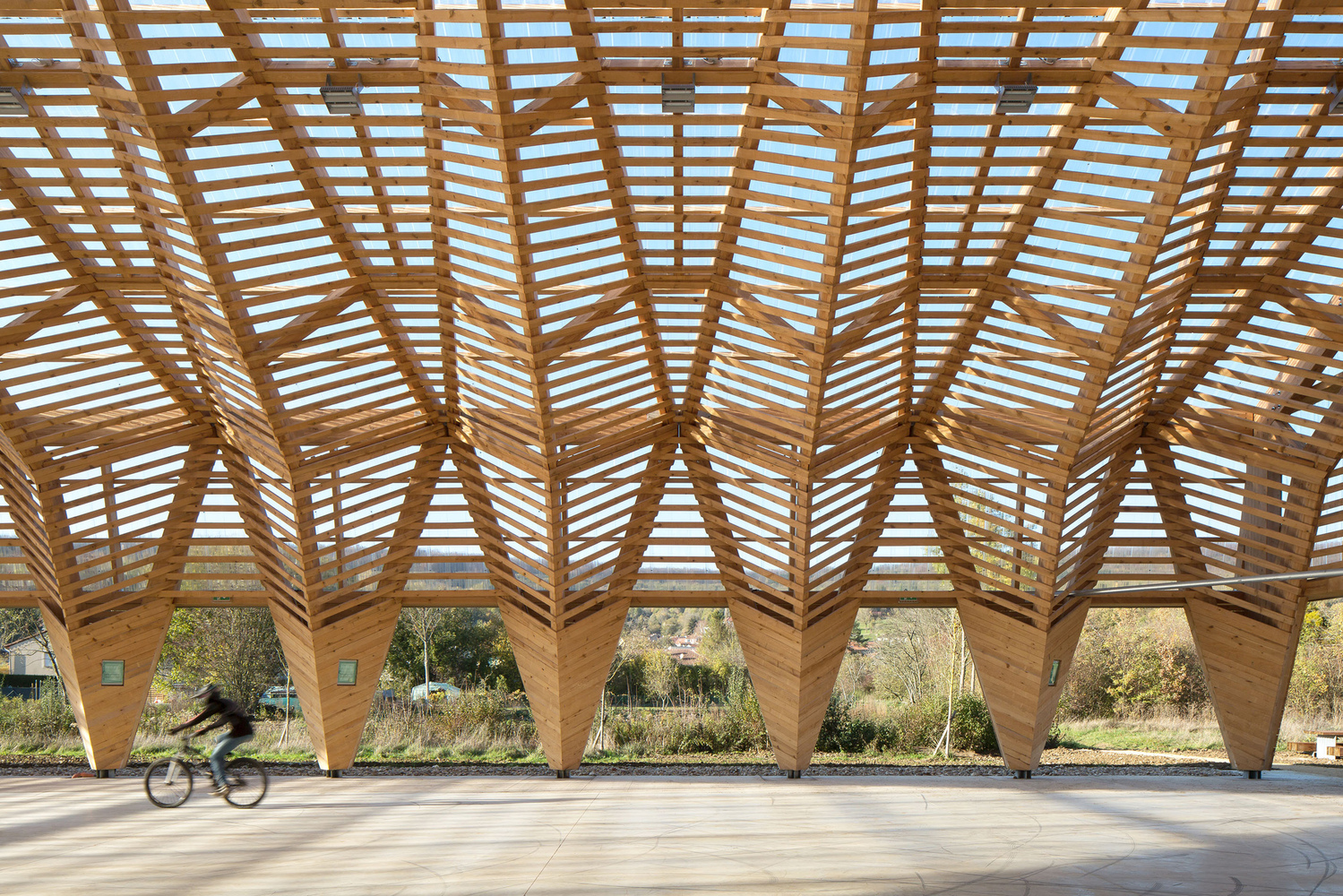

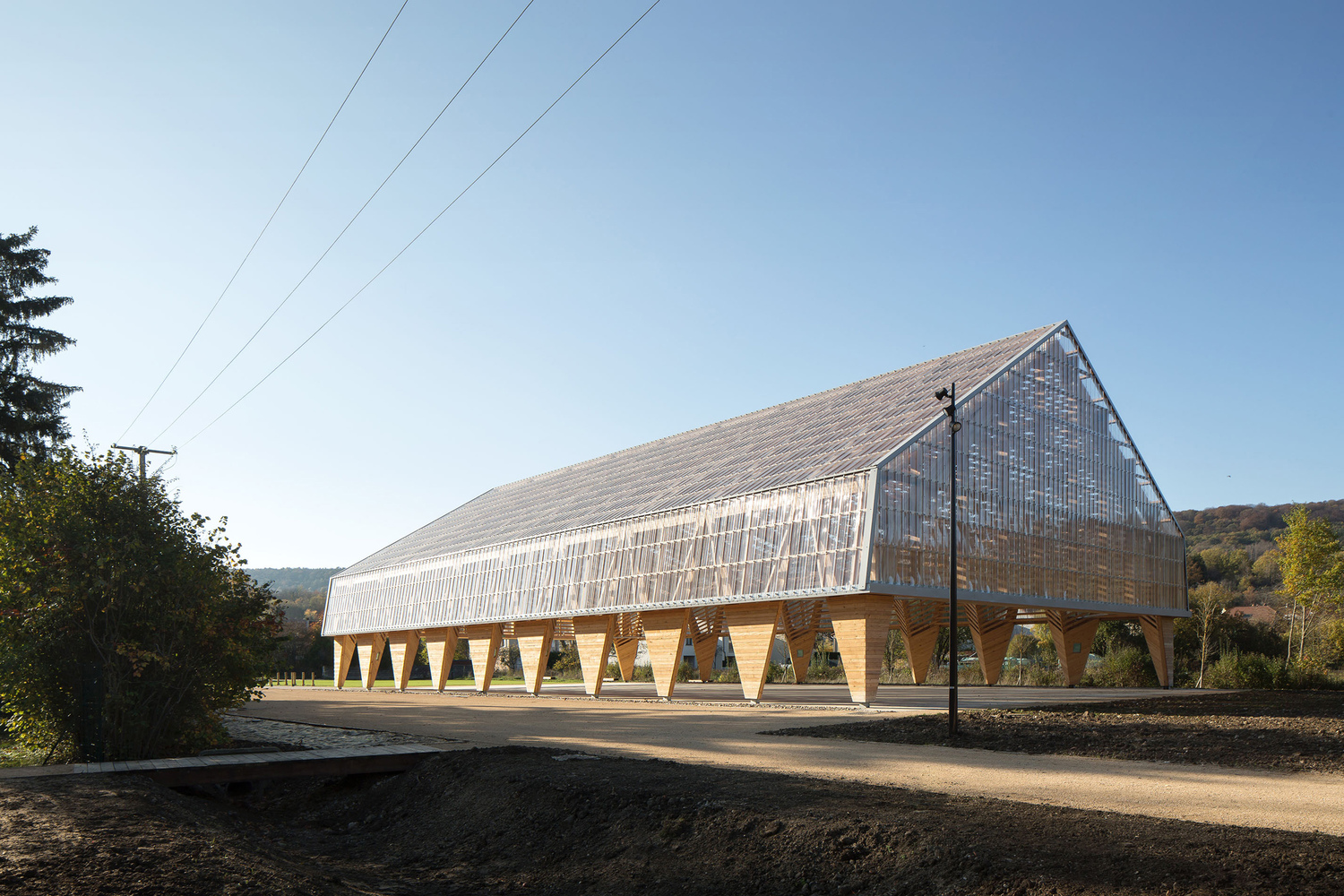

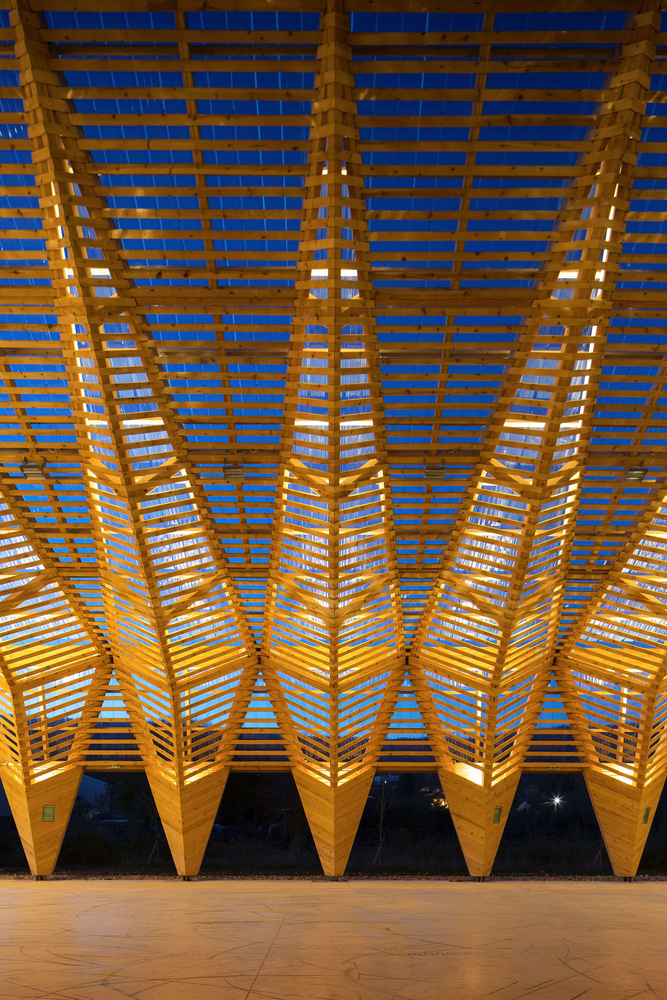

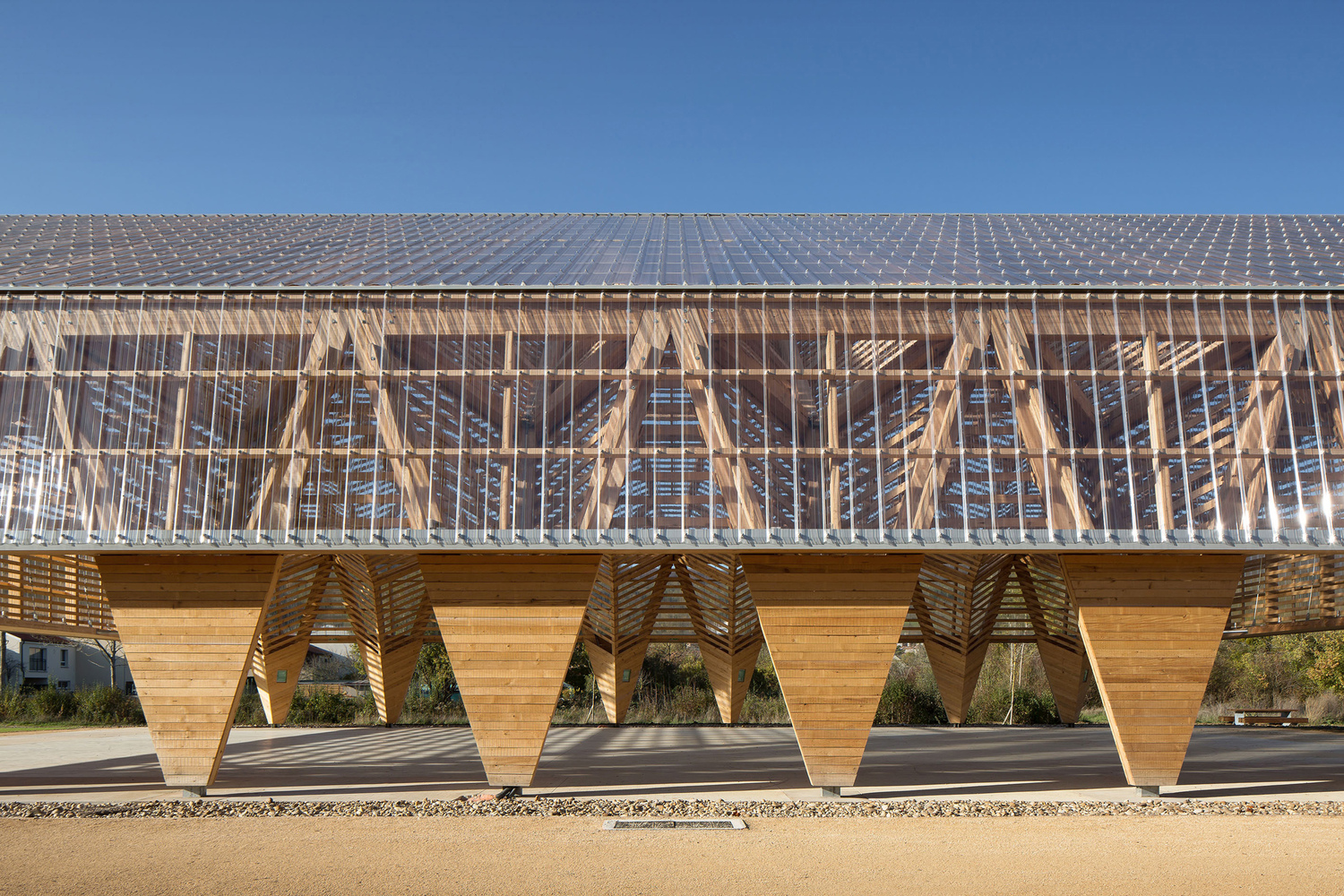

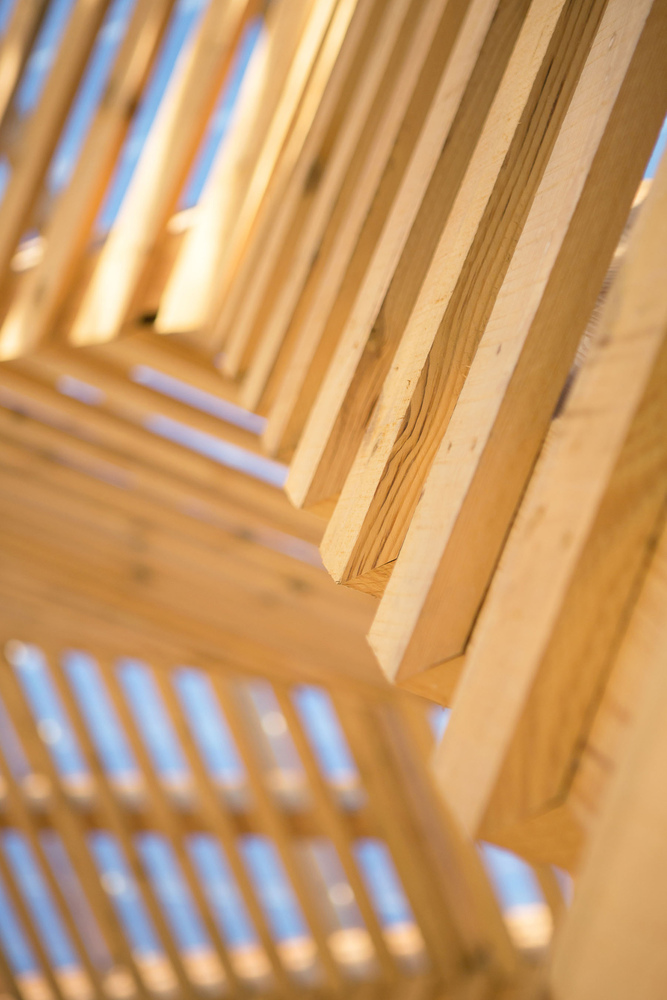

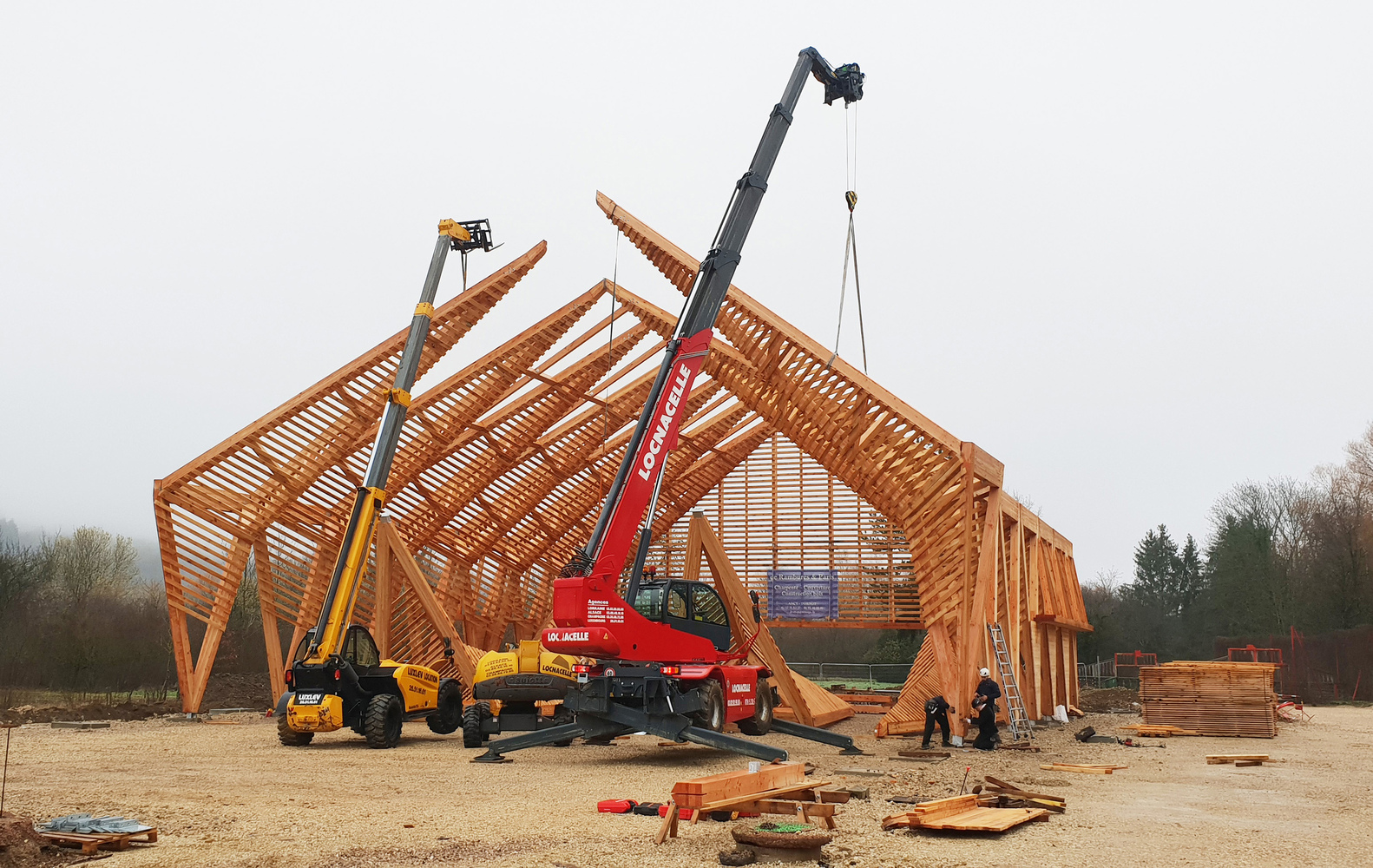

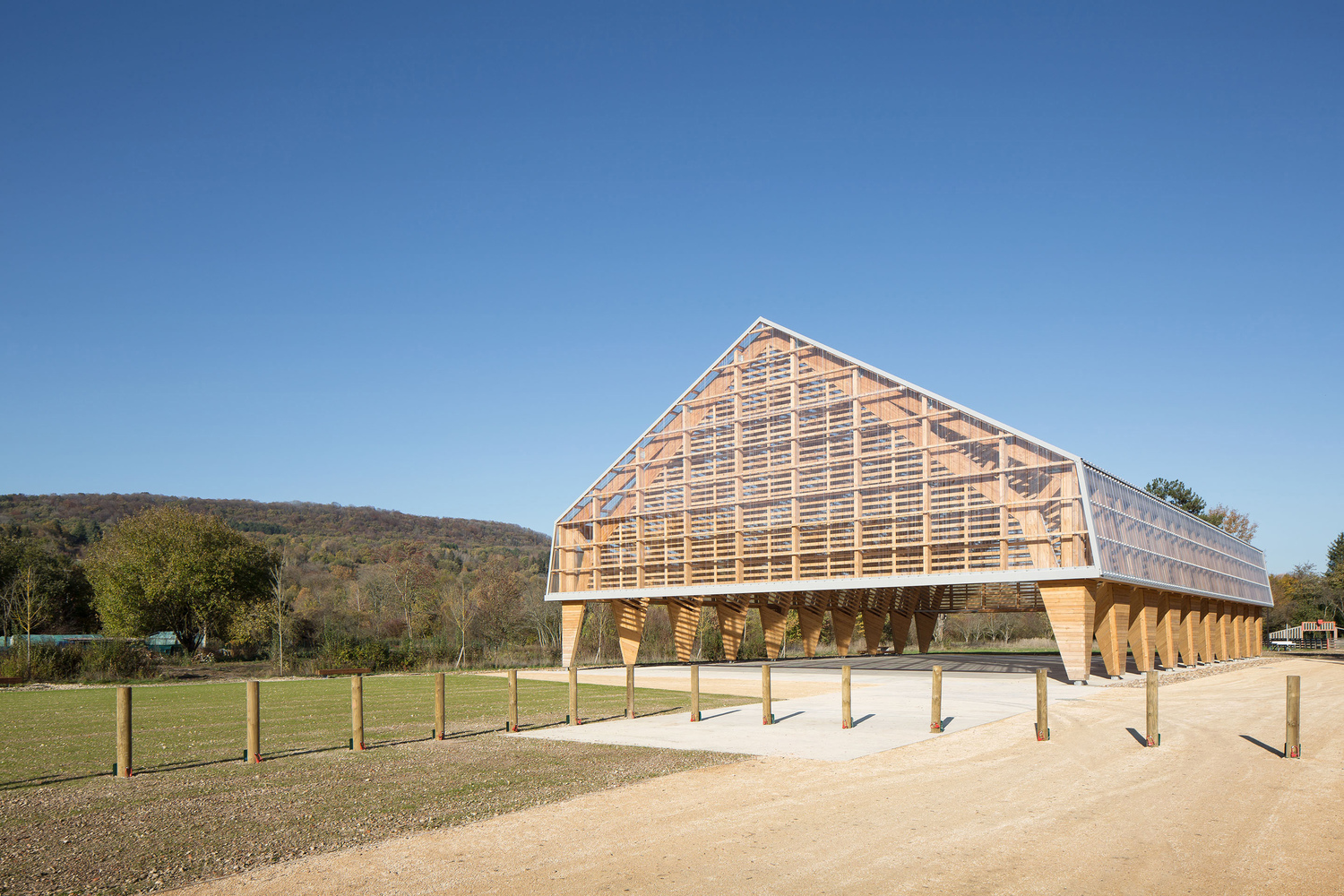

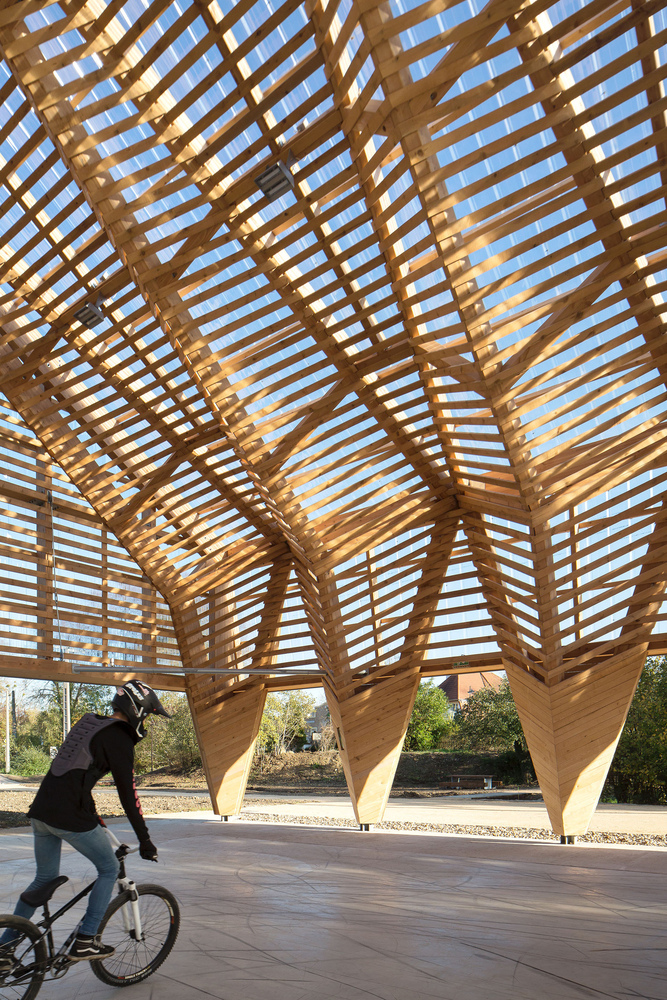

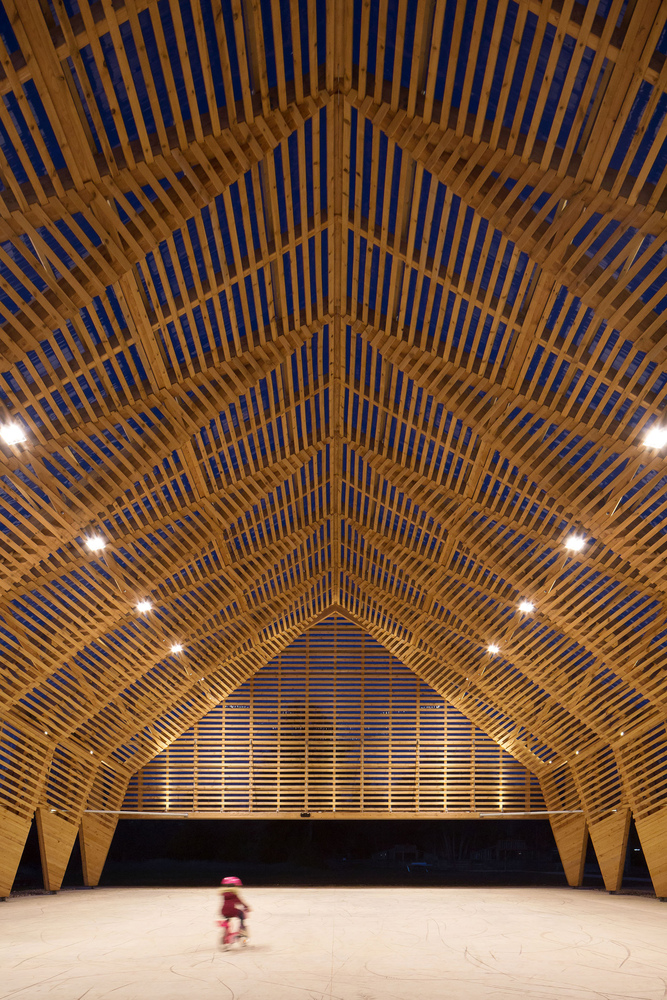

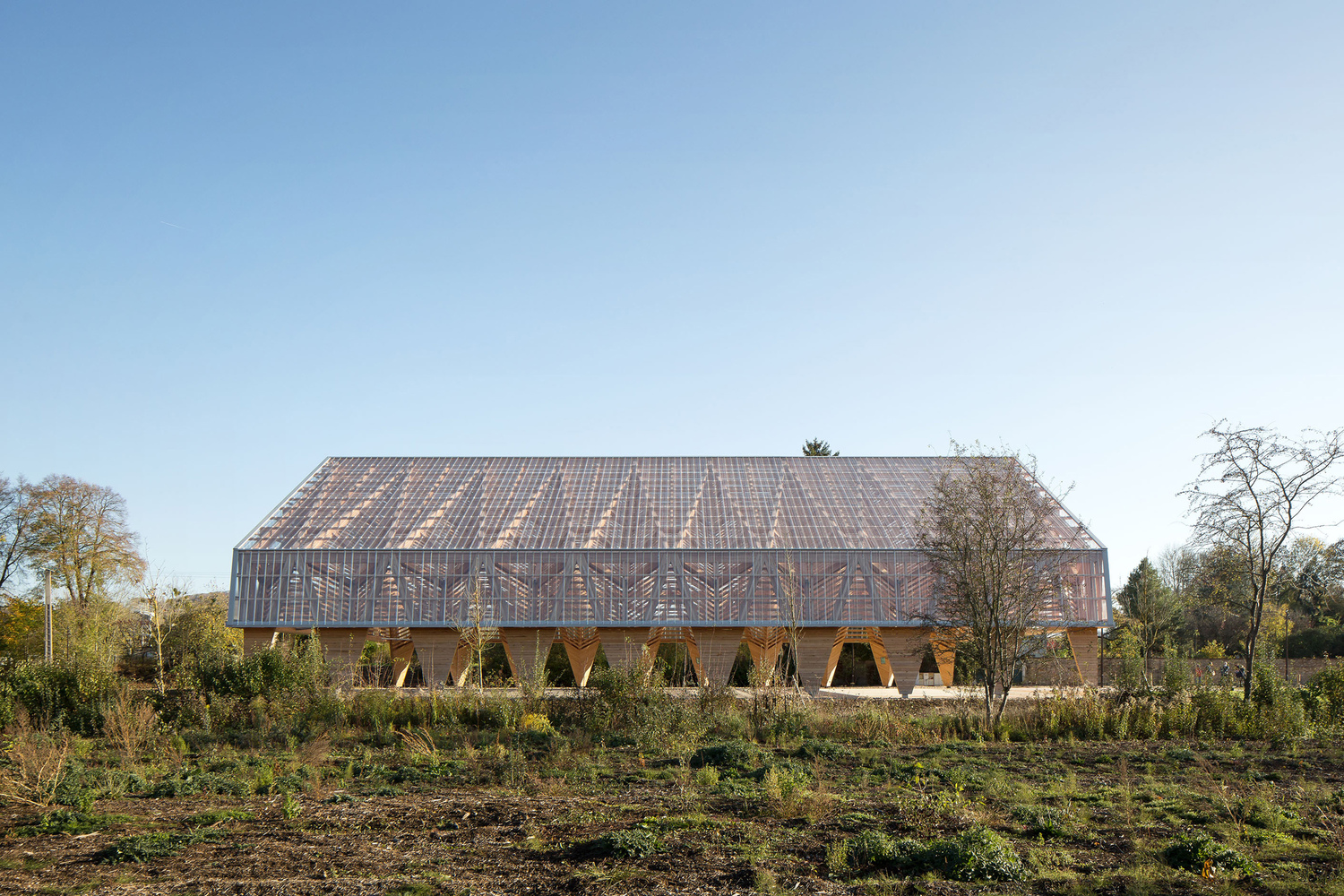

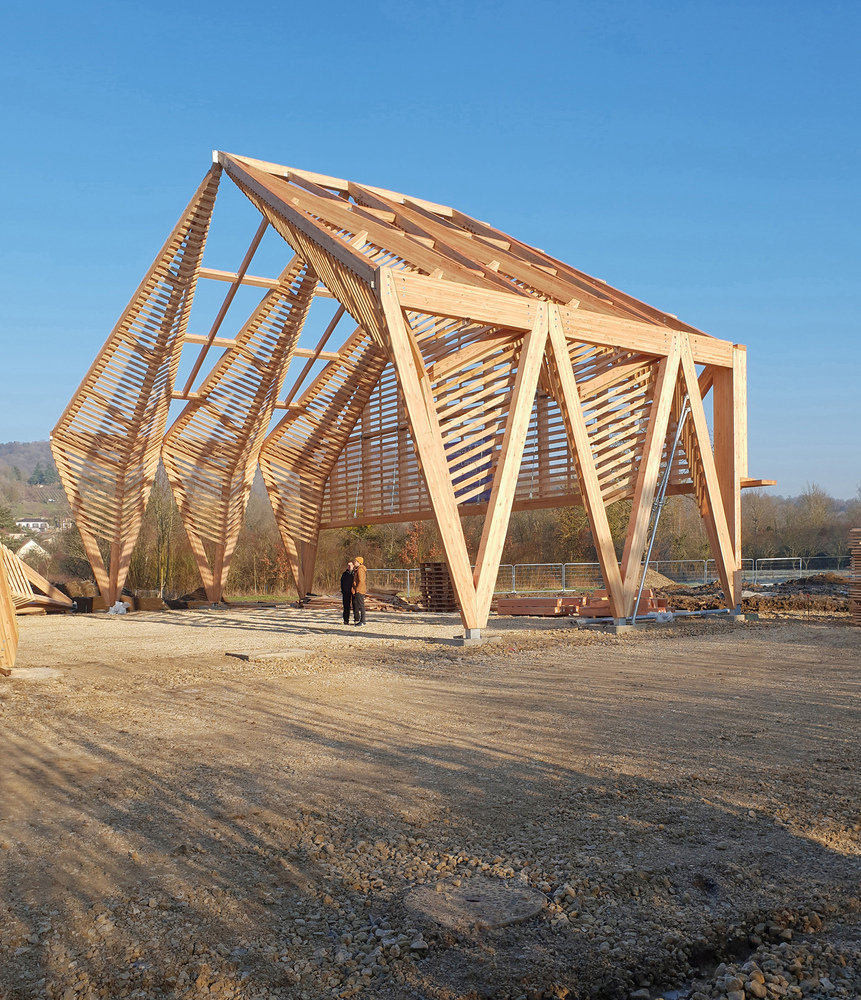

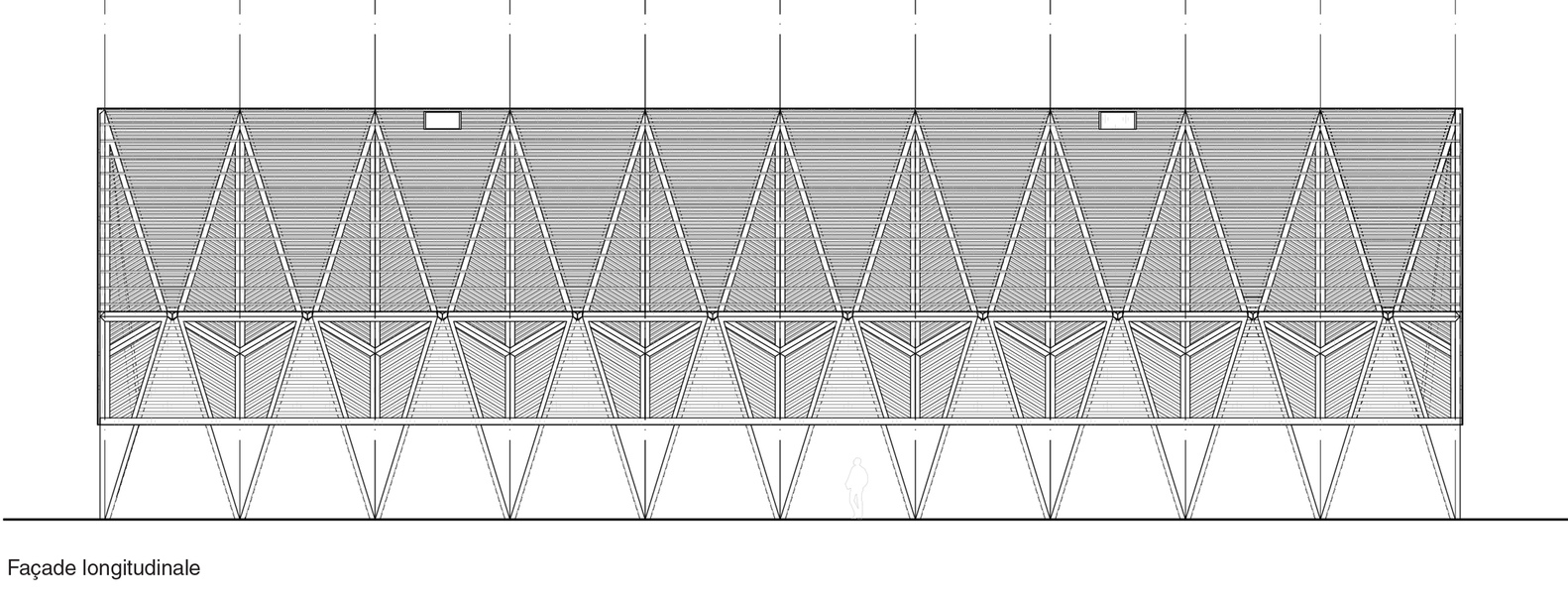

The main structure is made of glue laminated Douglas fir. The cladding and timber shell are in black pine coming from a communal forest. Finally, the roof is covered in transparent polycarbonate boards. And it extends vertically to cover the facade until 3 meters high.

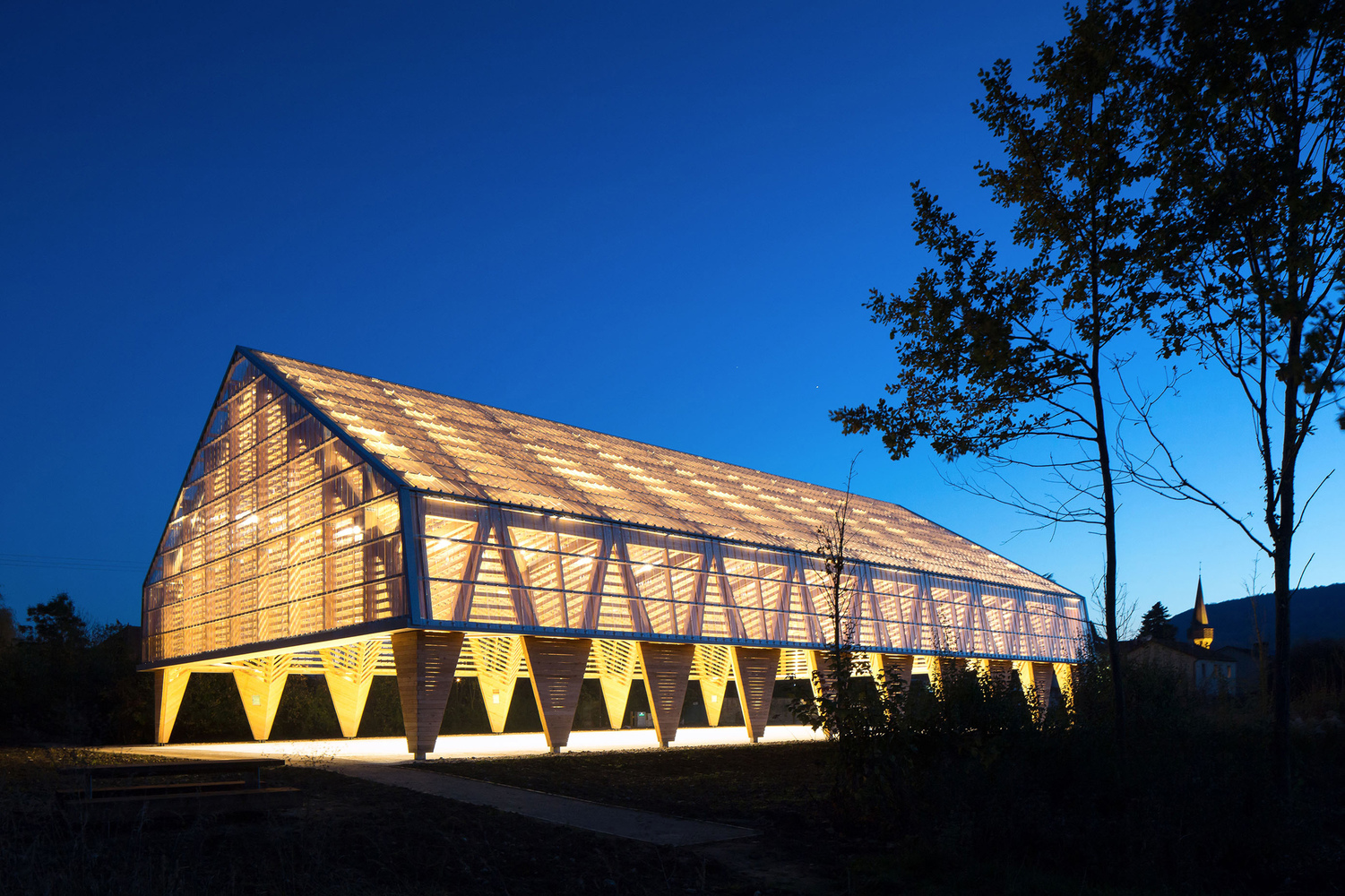

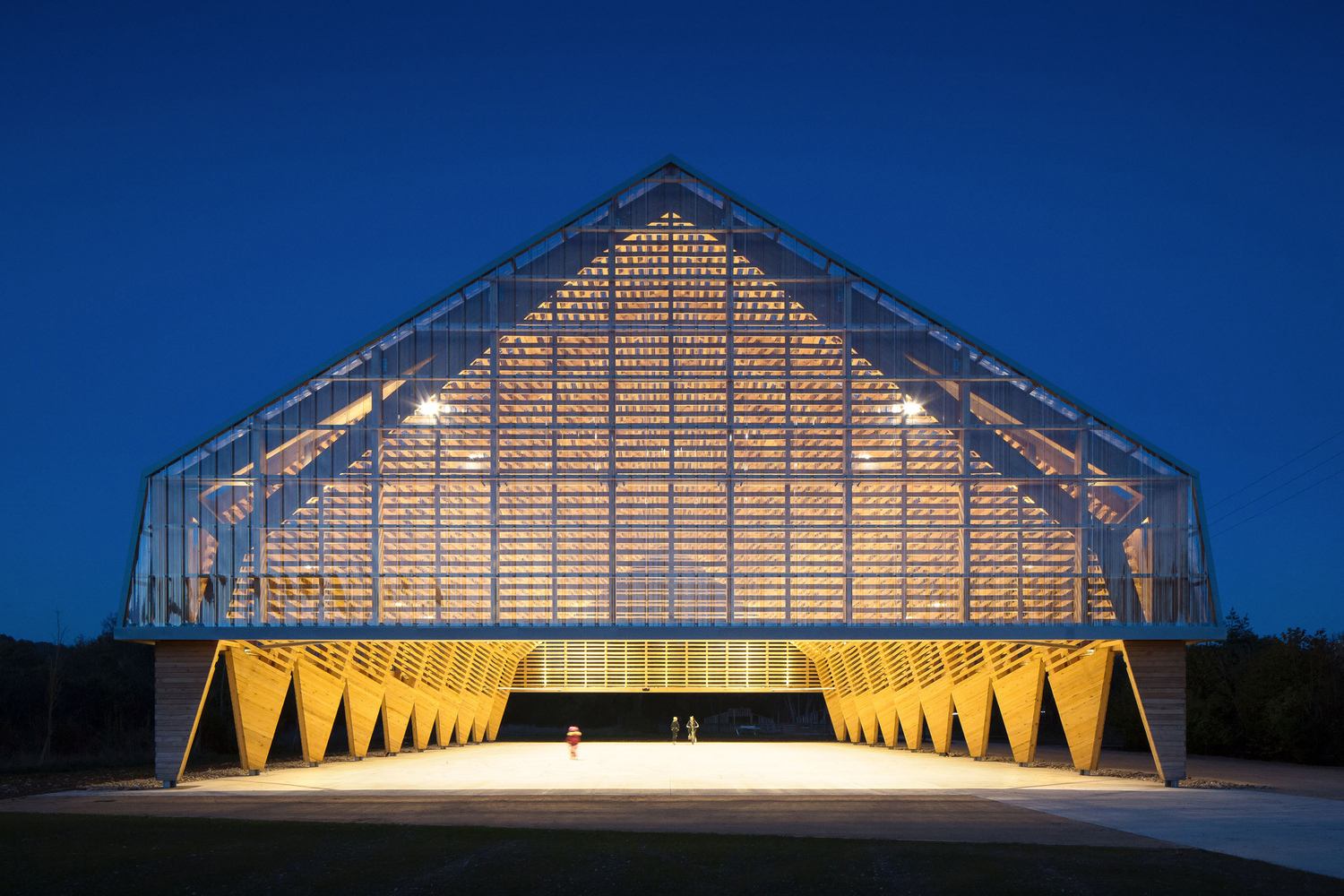

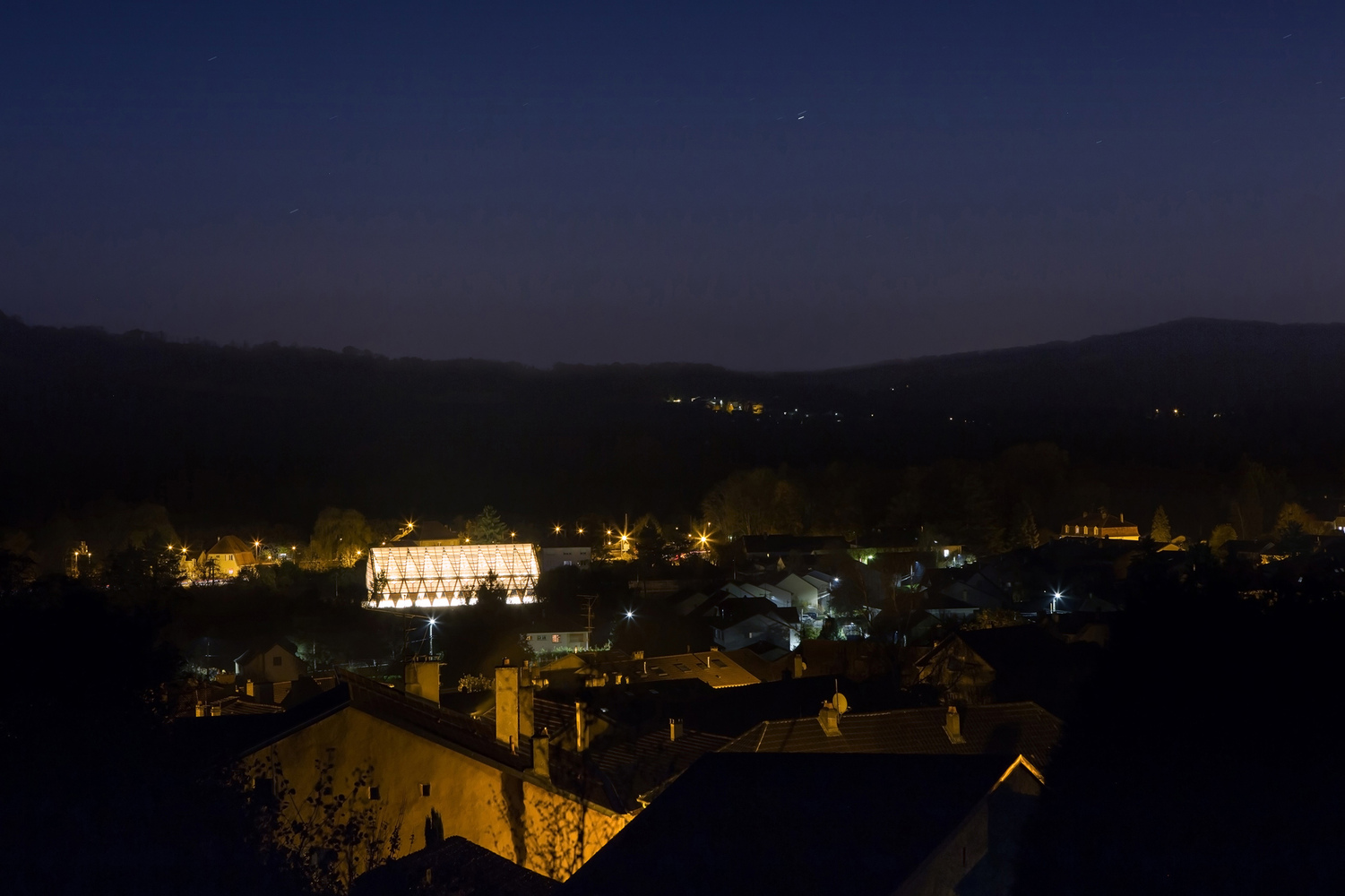

Removable custom sized tarps can close the facade to 3 meters high. In this way, the open wooden hall becomes a marquee. Extraction windows and security lighting enables this building to become a closed performance hall.
