*프리캐스트 콘크리트 사각터널로 만든 집 [ nendo ] Culvert Guesthouse

 nendo-Culvert Guesthouse
건축가의 실험은 프리캐스트 공법을 이용한 최소건축으로 완벽한 구조물을 구현하는데 있다. 매우 긴 형태의 콘크리트 구조물로 4개의 선을 이루며 거대한 사각공간을 구축한다. 이렇게 구축된  내부는 공간의 공용공간으로 폐쇠적인 터널을 연결하는 구심점 역활을 수행한다.

반응형

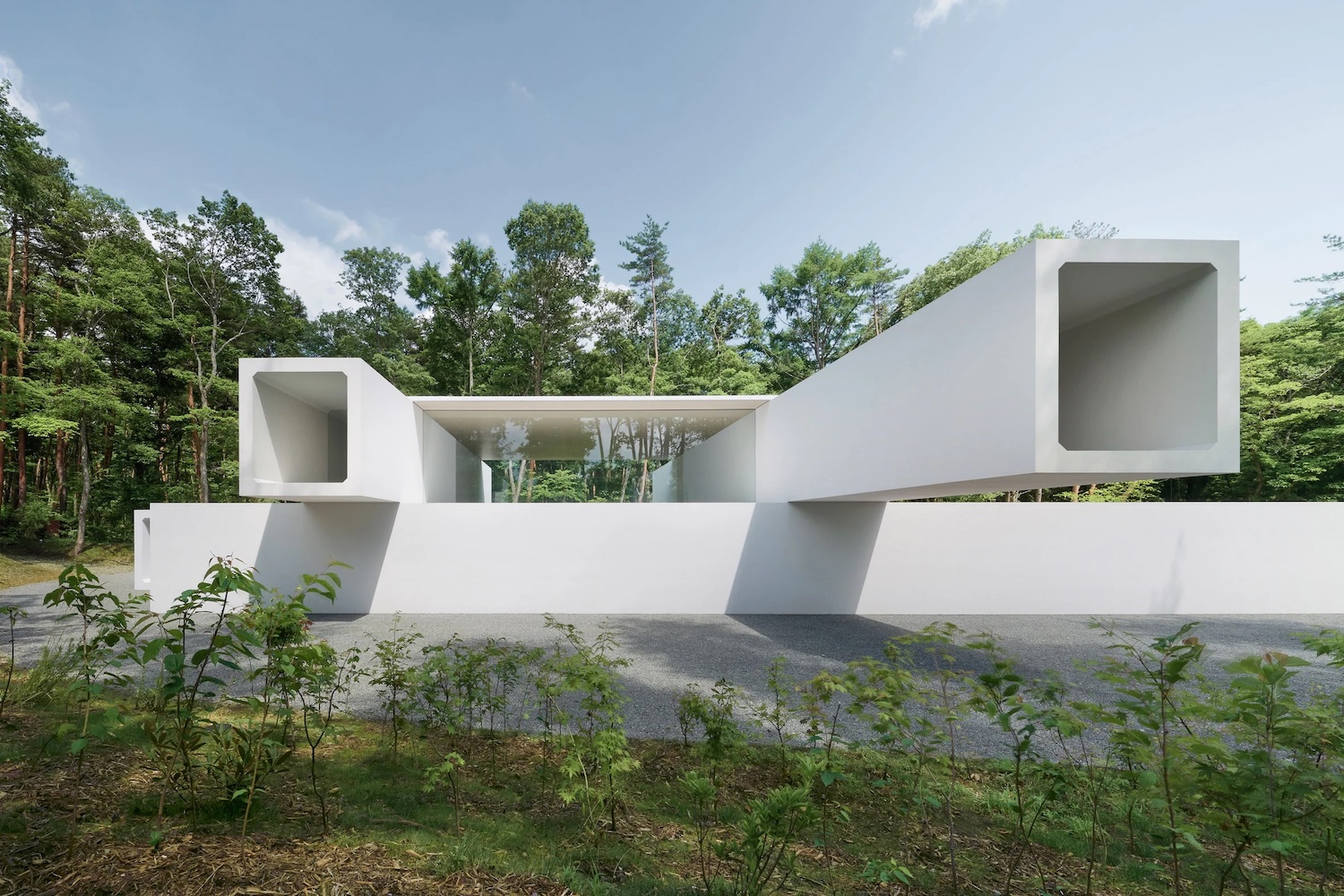

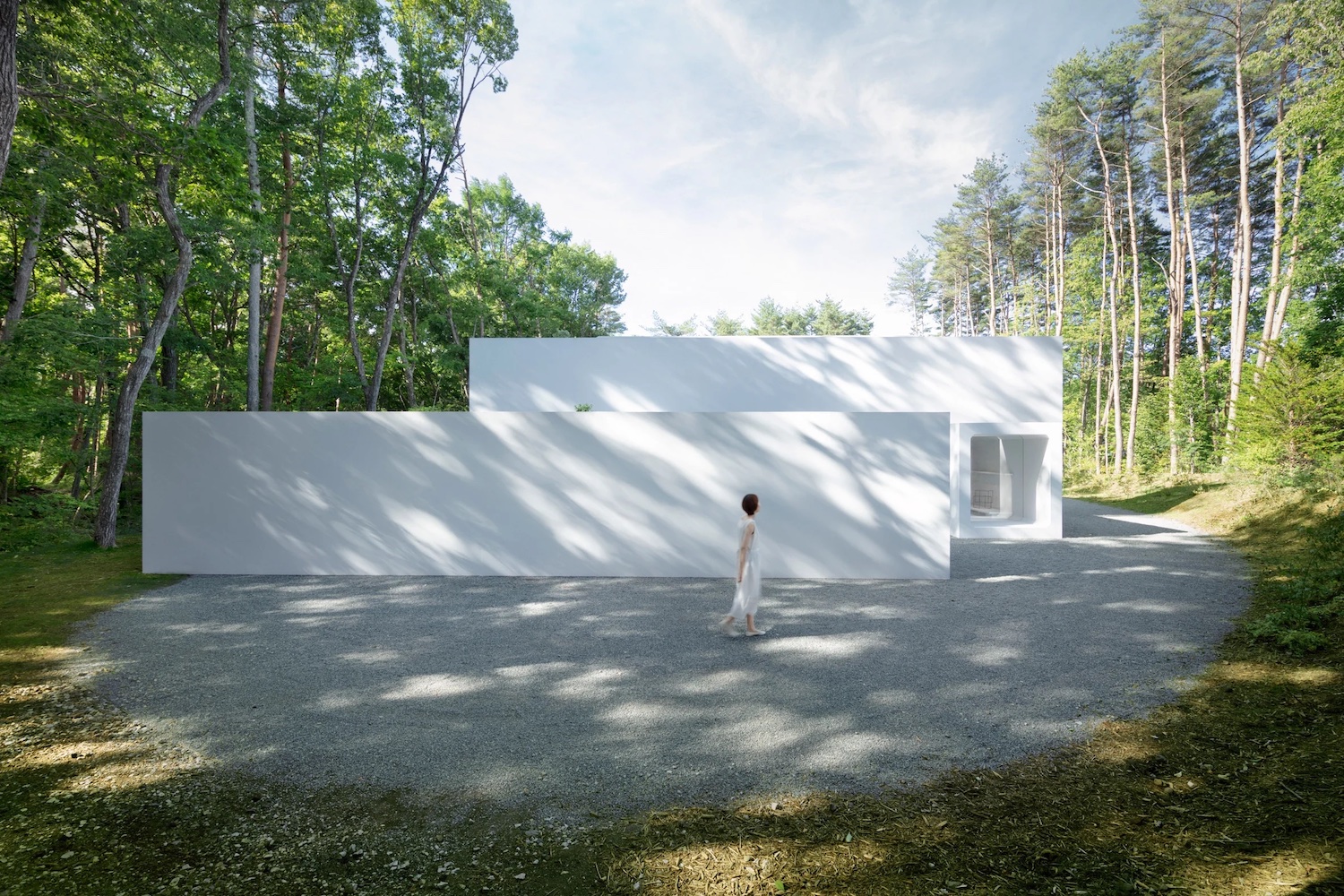

Culvert Guesthouse is a minimal guesthouse located in Nagano, Japan, designed by nendo. Located in a quiet and nature-rich environment where streams weave through a thick forest of red pine, the tunnel like architecture took shape through a combination of precast and prestressed construction methods. For precast construction, common parts are molded in a factory and assembled on site. An example of its applications in infrastructure projects is the box culvert (box-shaped concrete structures), used to store waterways, pathways, power lines, and communication lines buried underground. However, since the method itself does not provide a leak-free composition nor does it allow for stacking, both necessary for this architecture, prestressing was also used to connect the parts together.

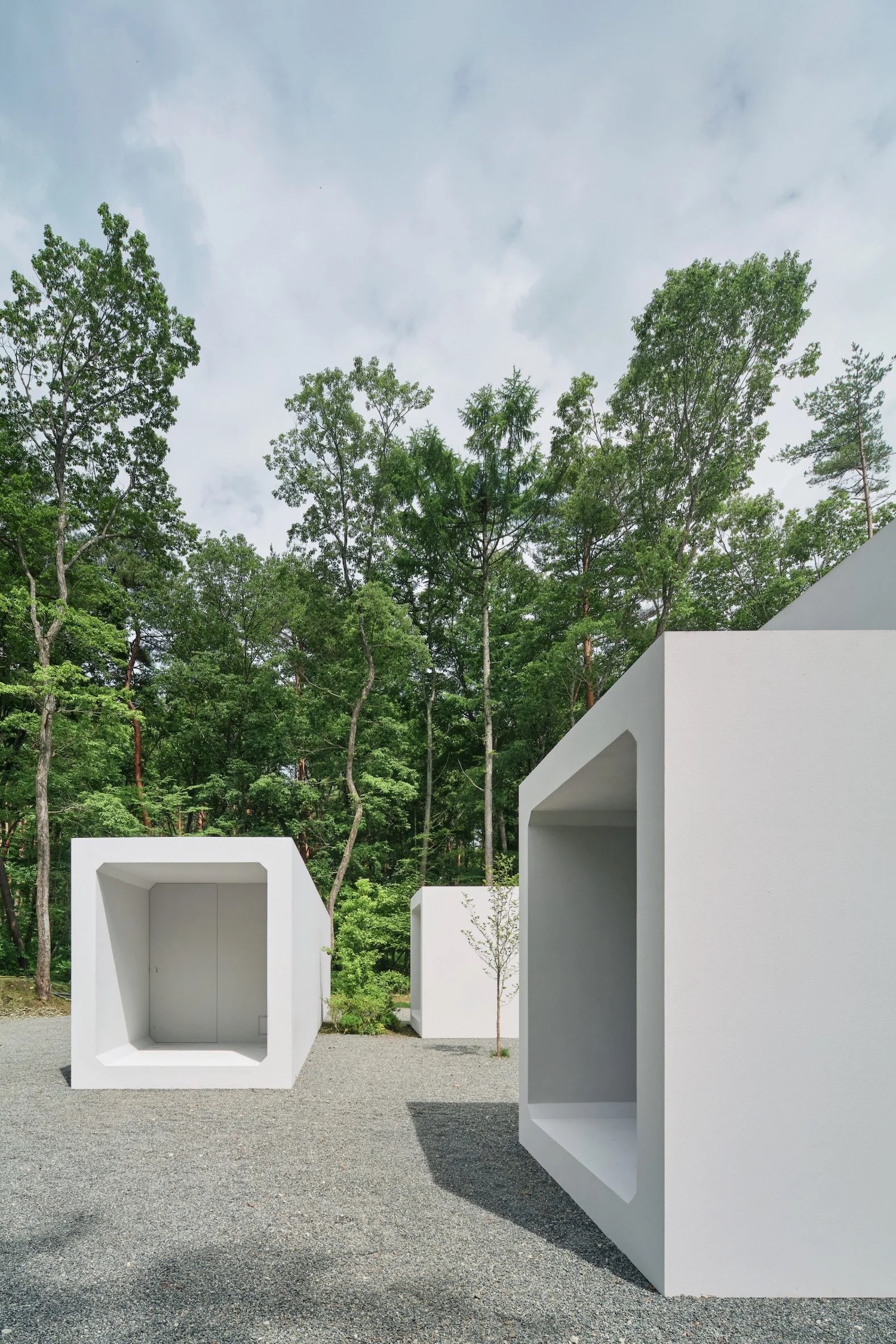

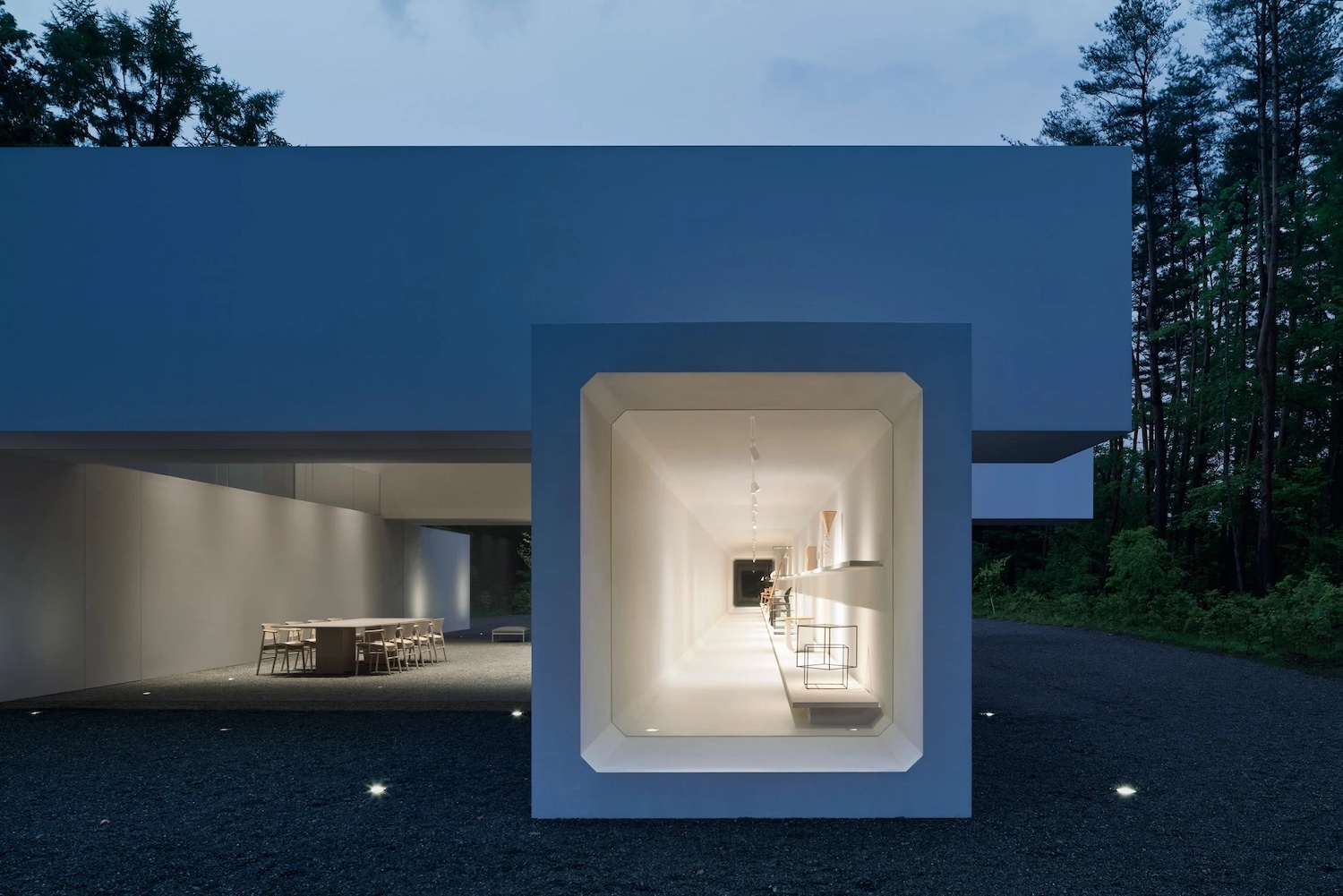

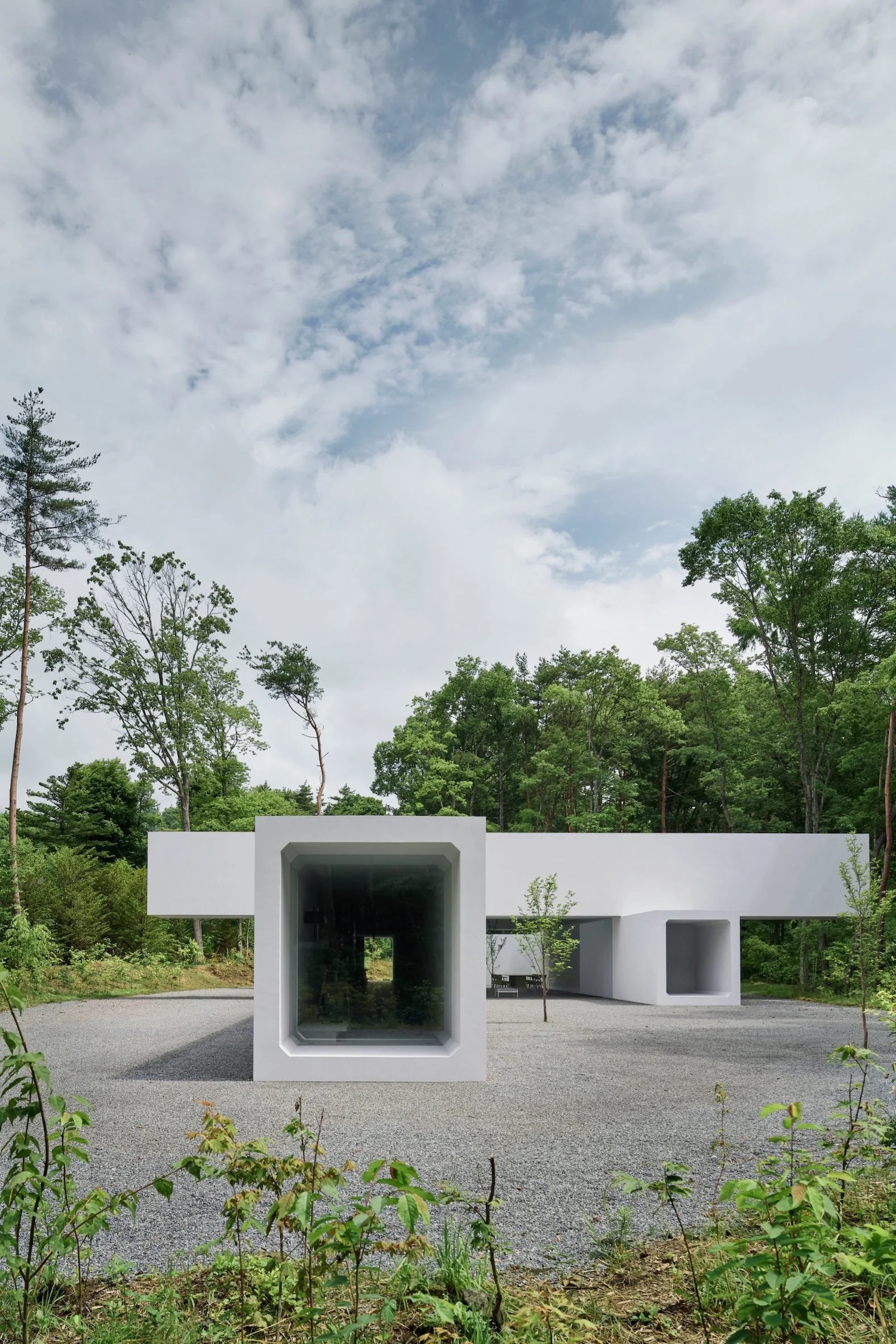

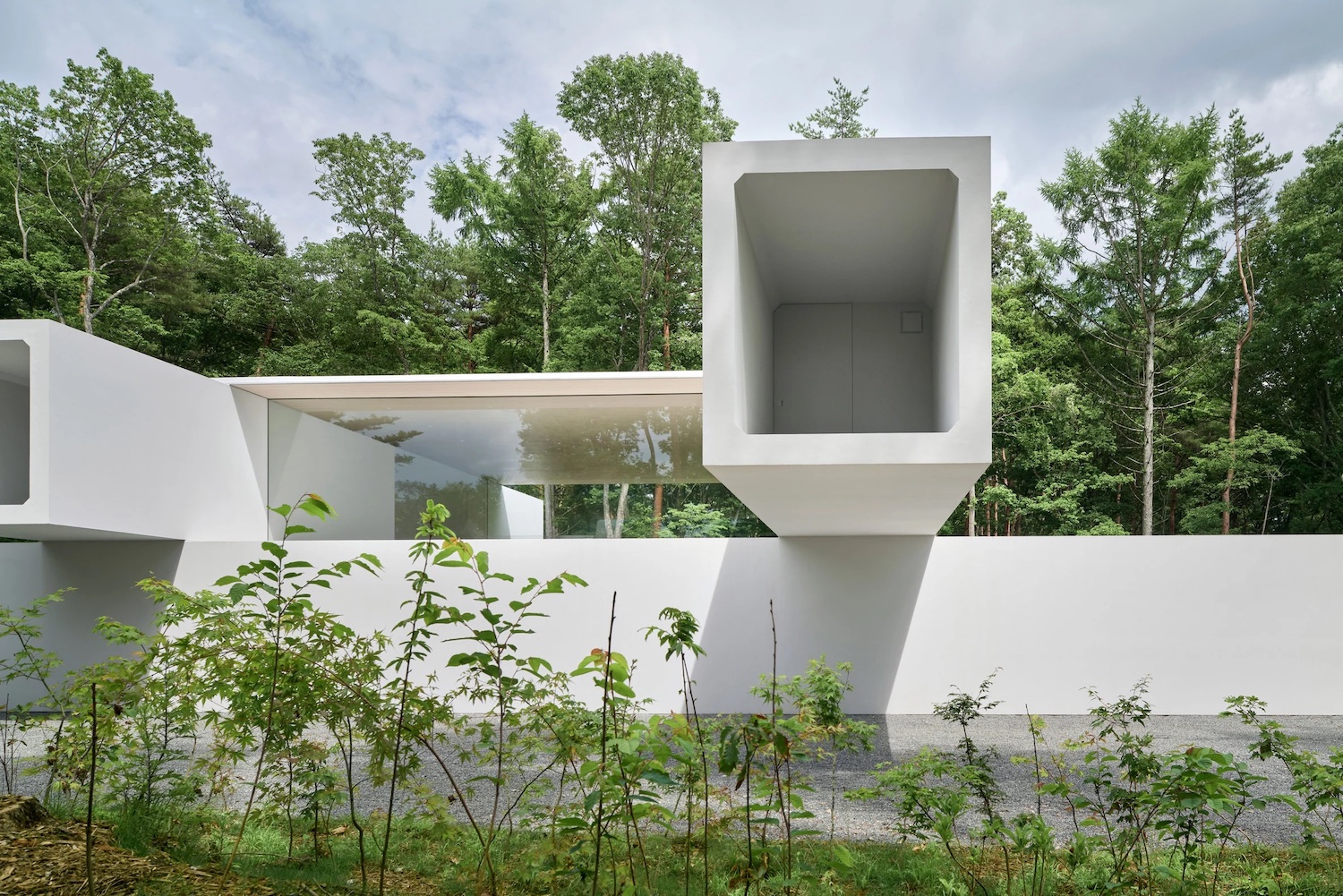

The prestressing method is a technique used in civil engineering structures such as bridges, in which the parts are aligned and then tightened with wires to connect them. This results in a seamless and smooth surface finish, obtaining a tight seal, and durability. The common square shaped parts weigh approximately 12 tons each, and a total of 63 of these parts were used. The size of the parts was derived from the loading size of the delivery truck and the weight that could be lifted by a crane. The 45-degree reinforcement at the entry corner, which is also found in general box culverts, serves as a brace and enhances earthquake resistance. By connecting these parts, a slender, tunnel-shaped space with an internal dimension of approximately 2 x 2.3 m was created. Fourteen wires were used to connect each “tunnel” and care was taken to apply uniform tension to each wire at all times.

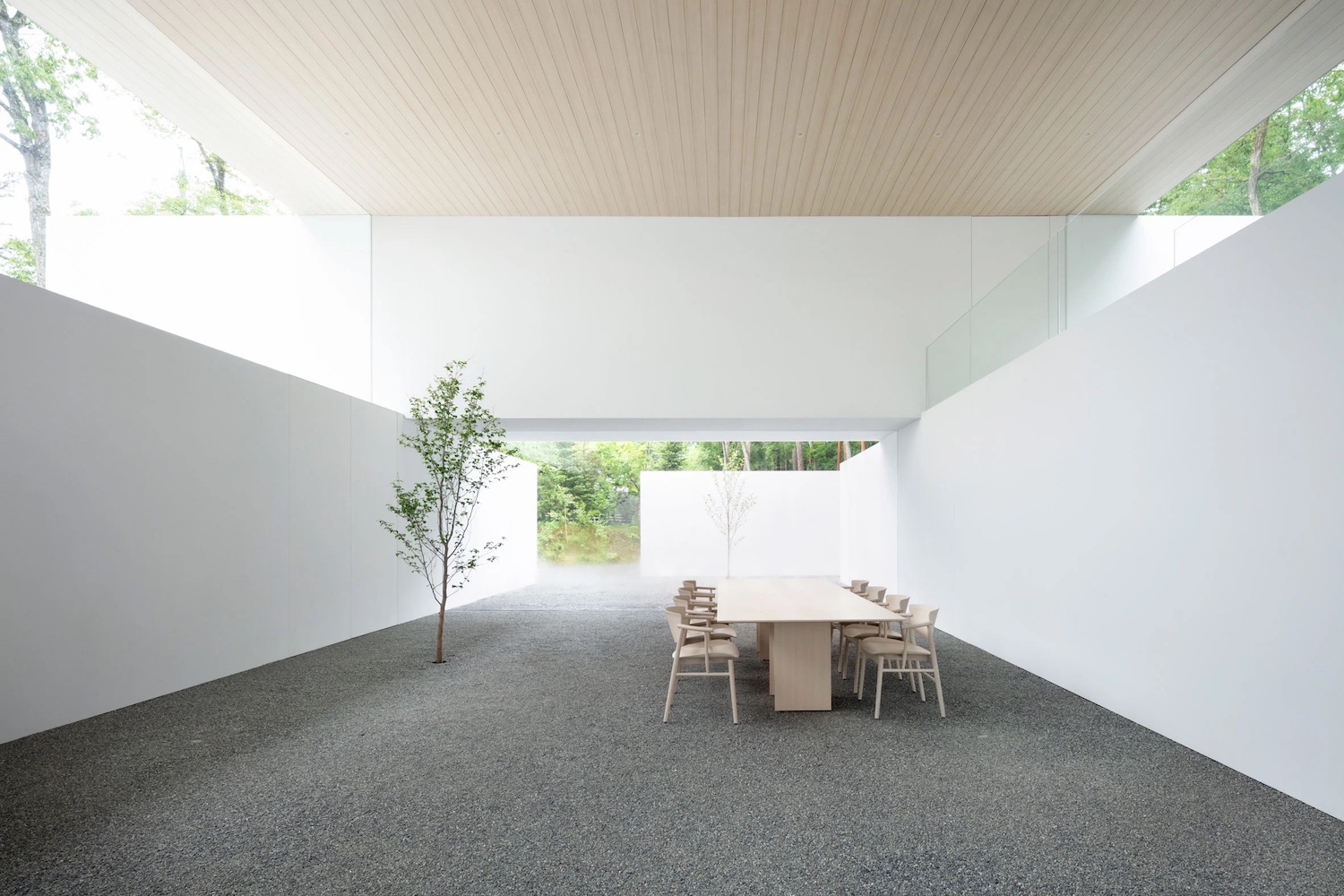

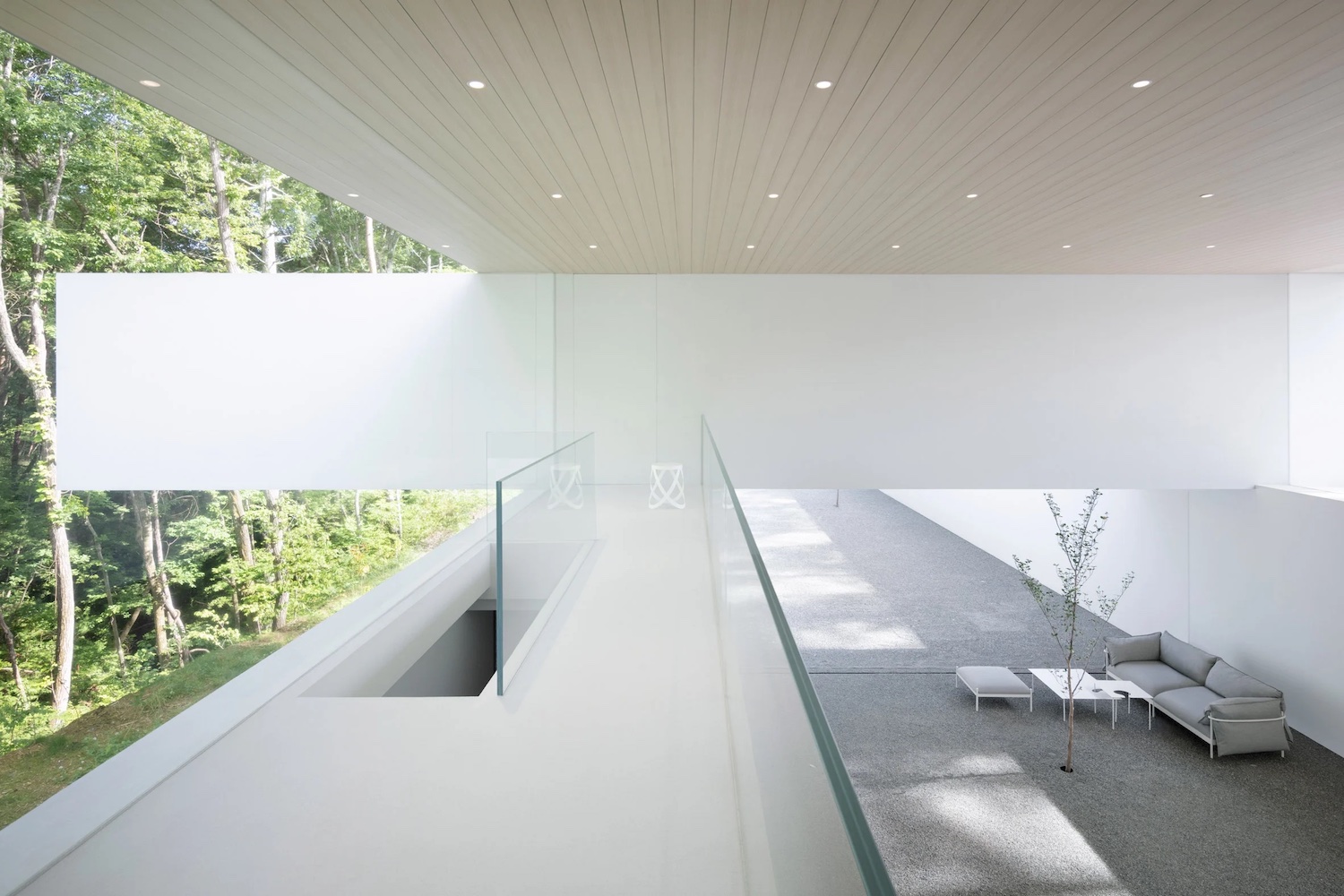

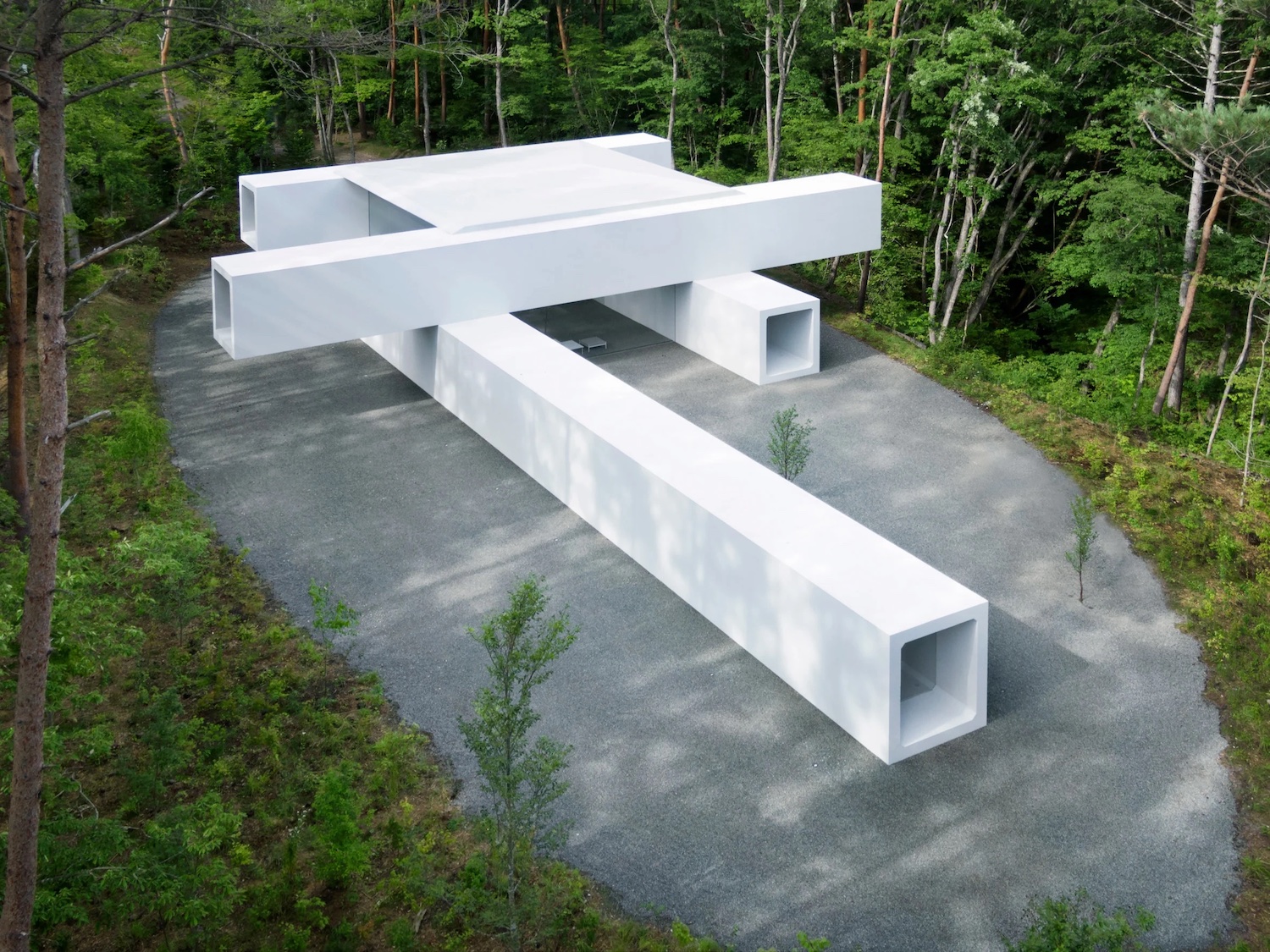

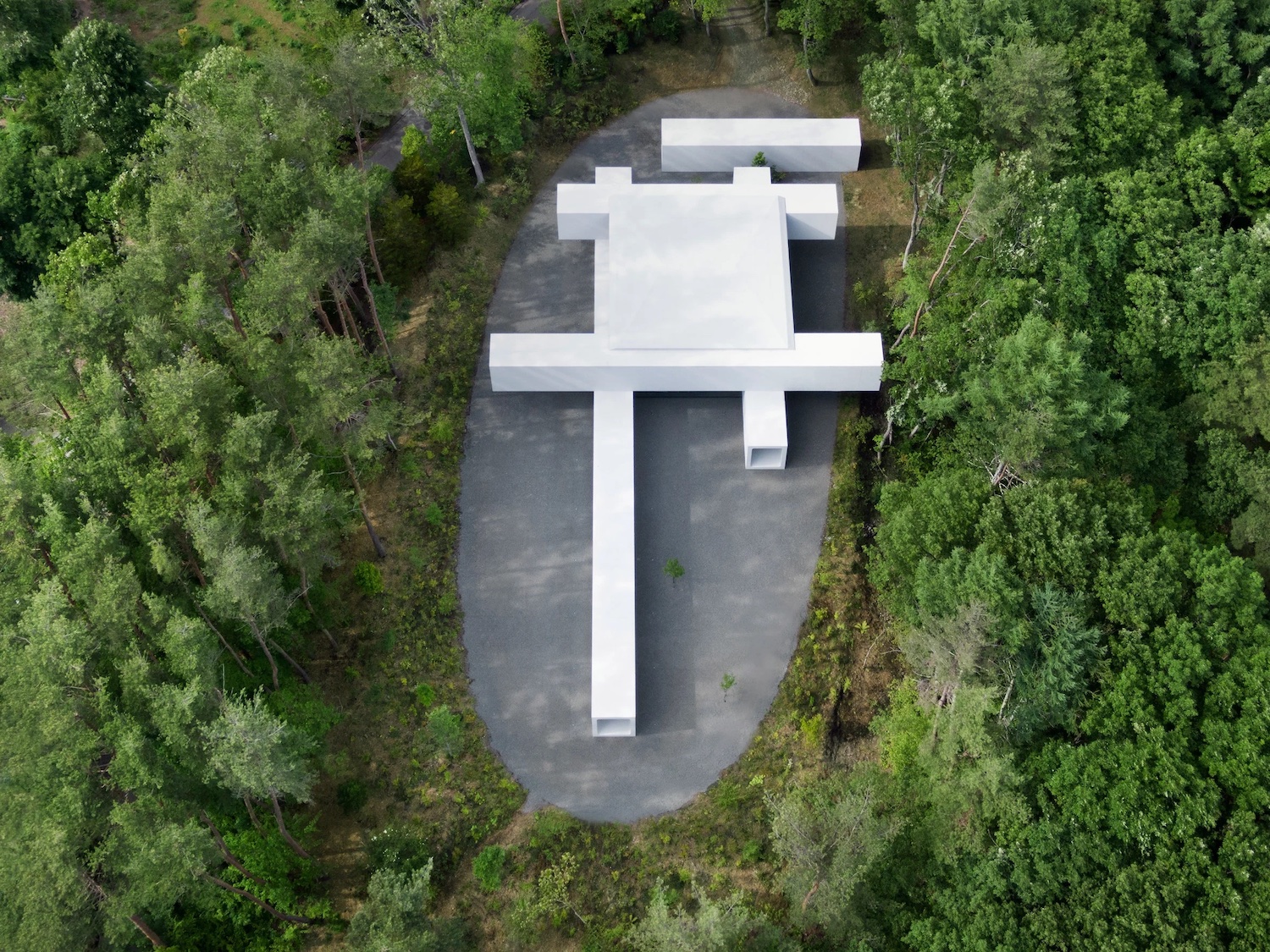

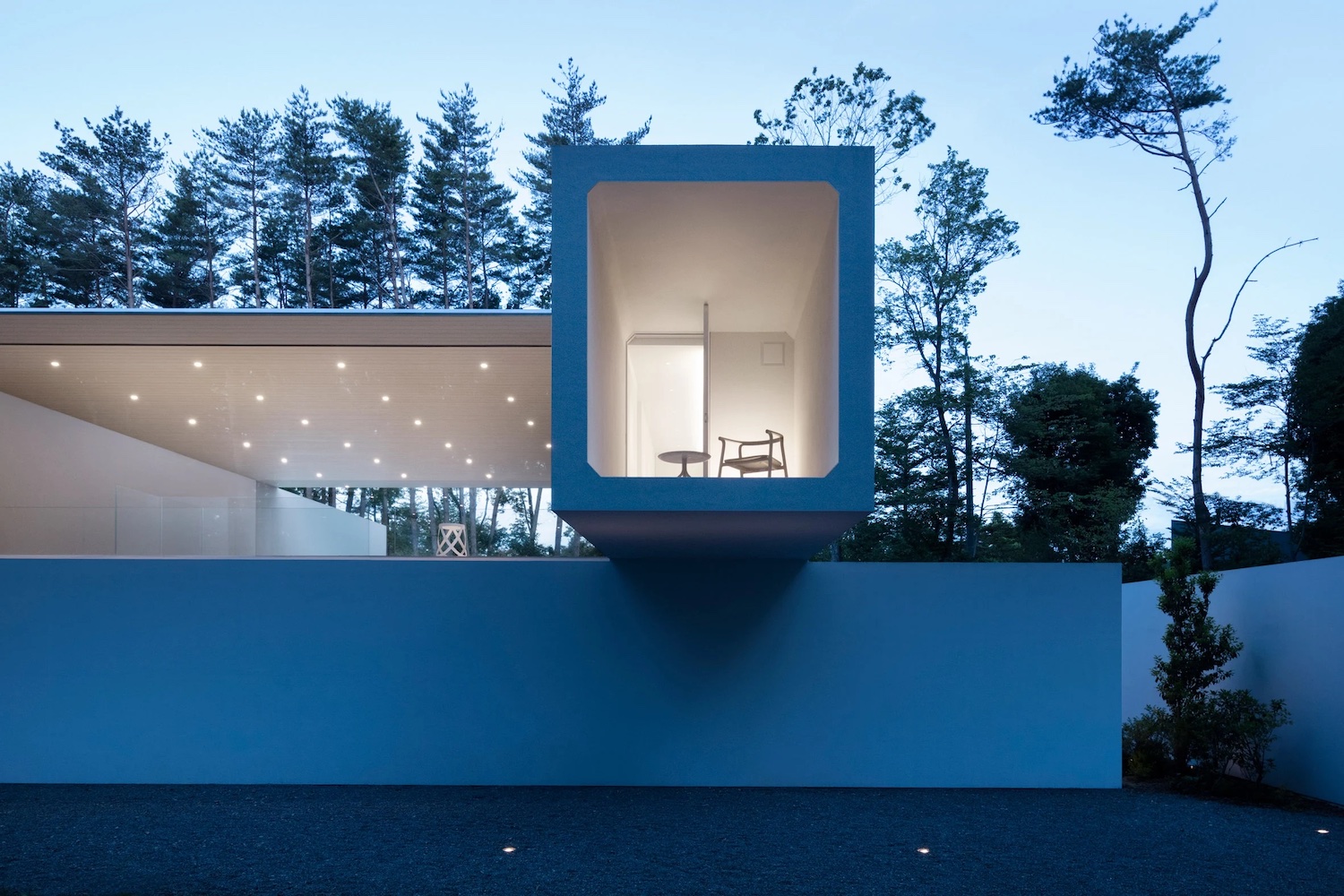

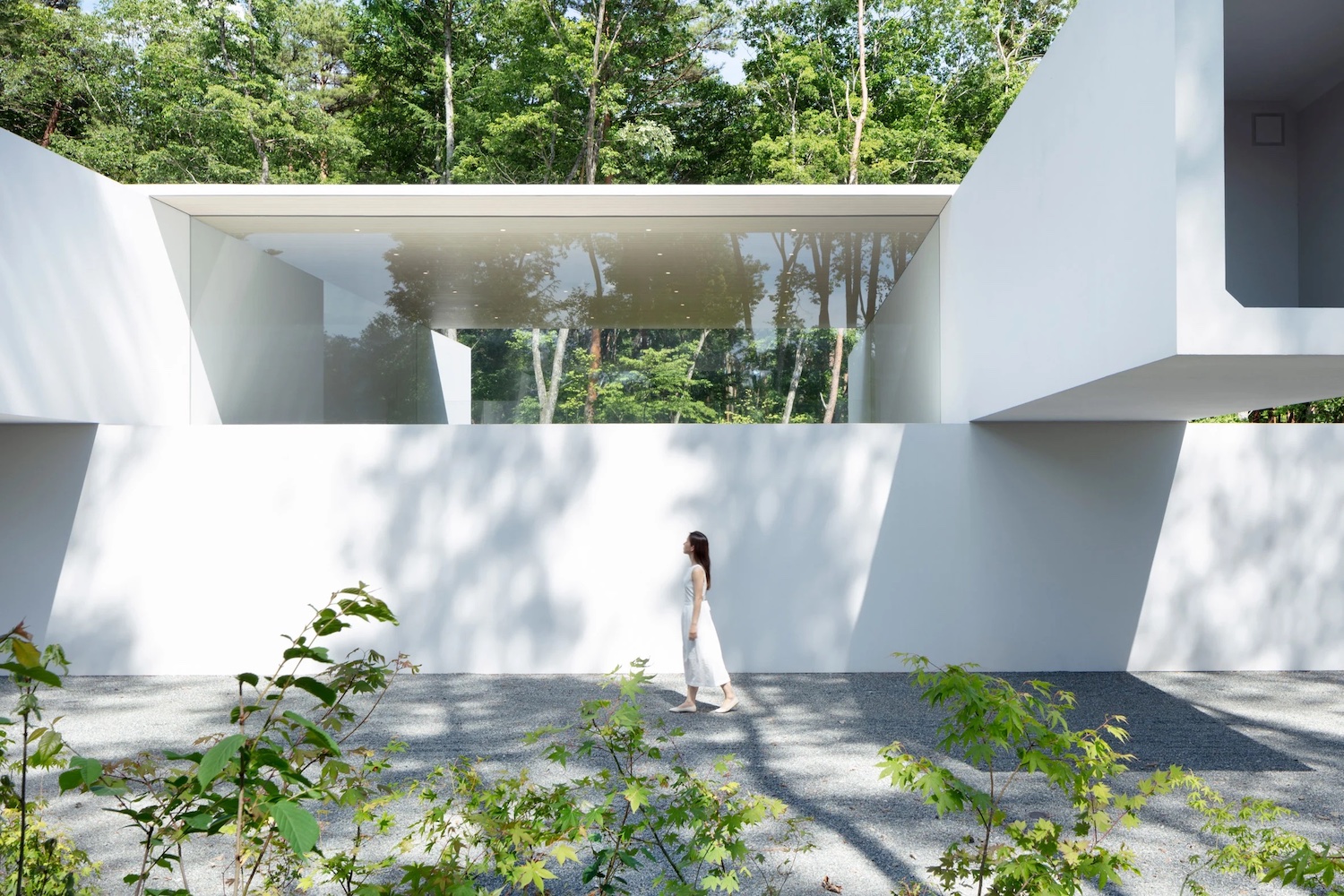

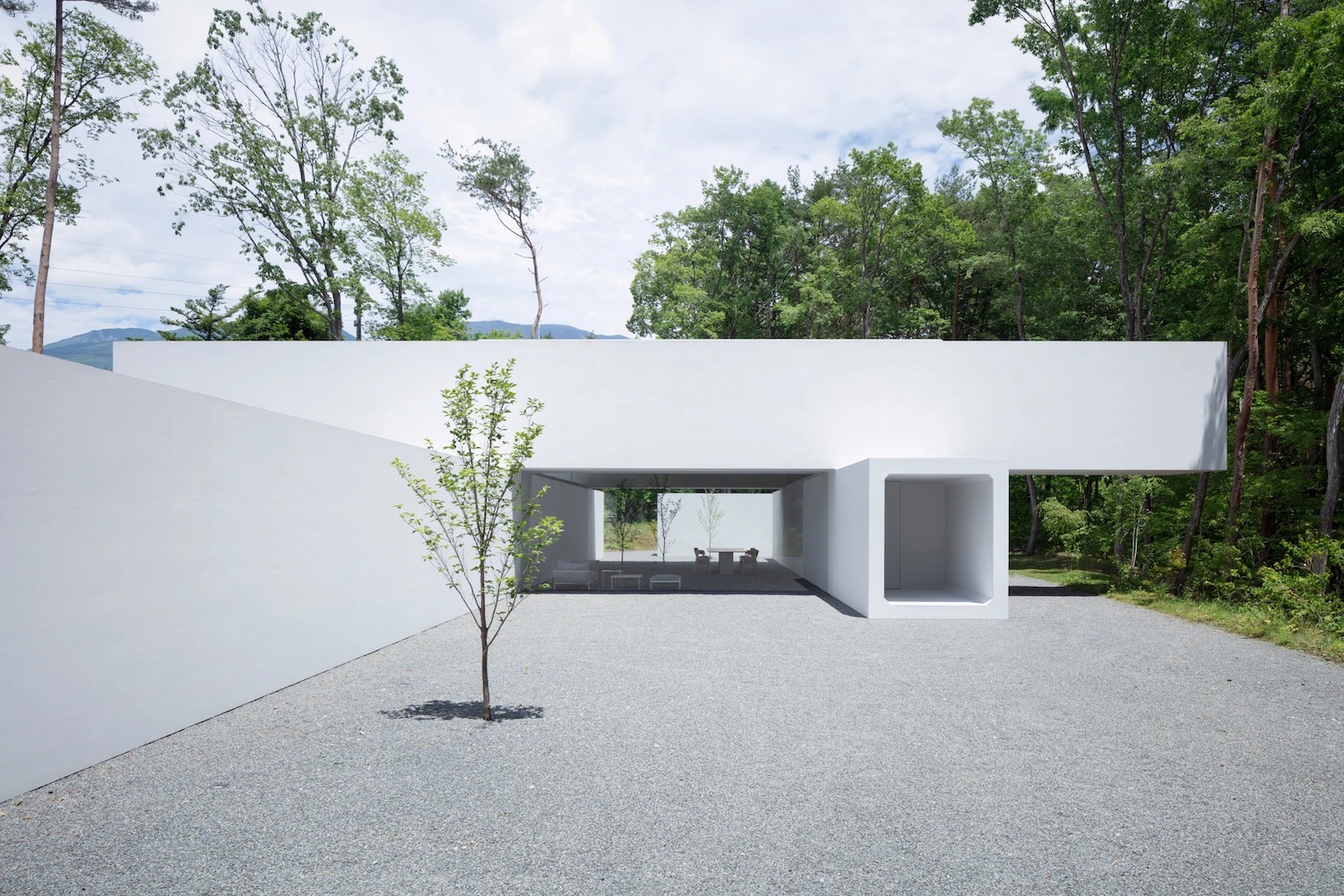

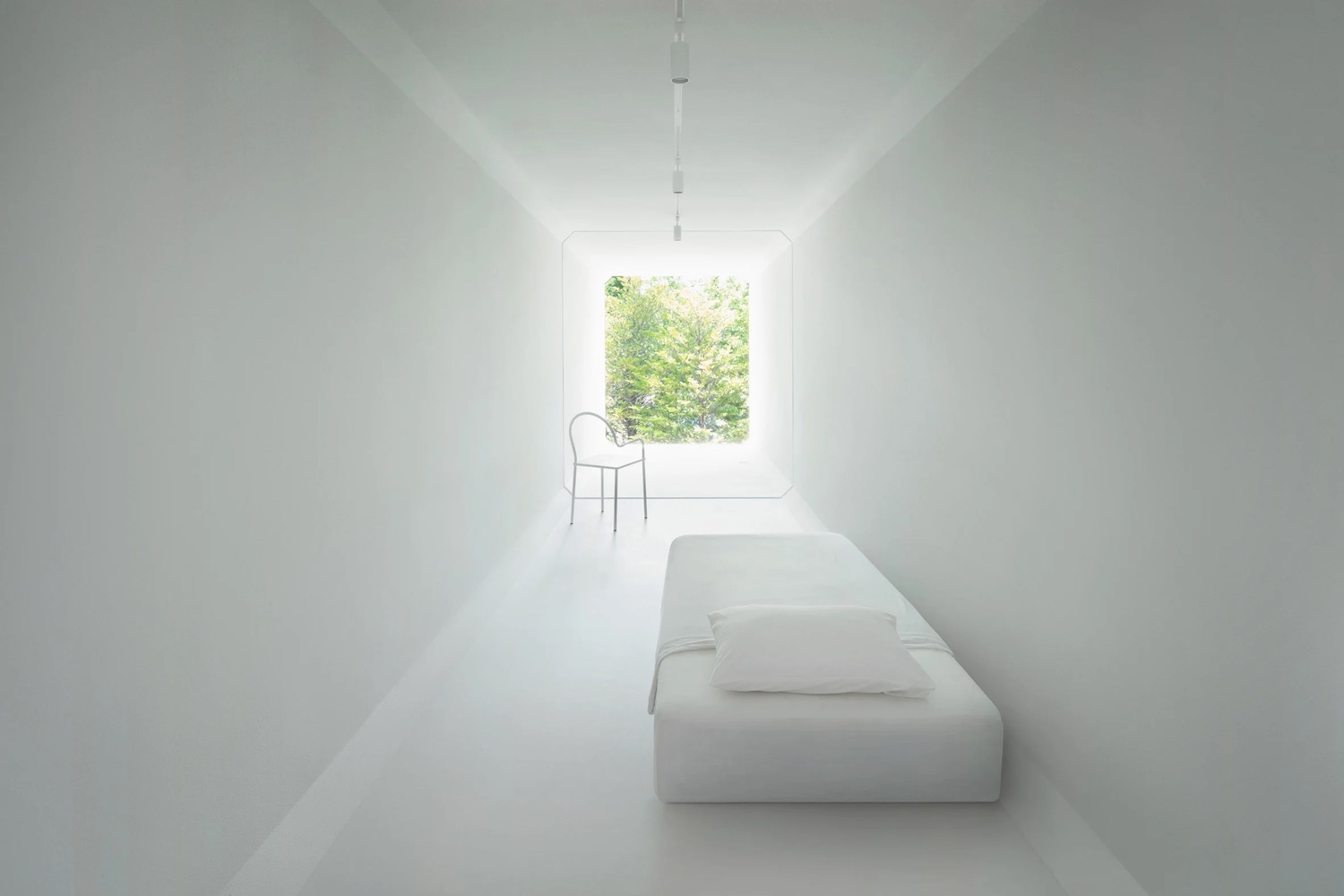

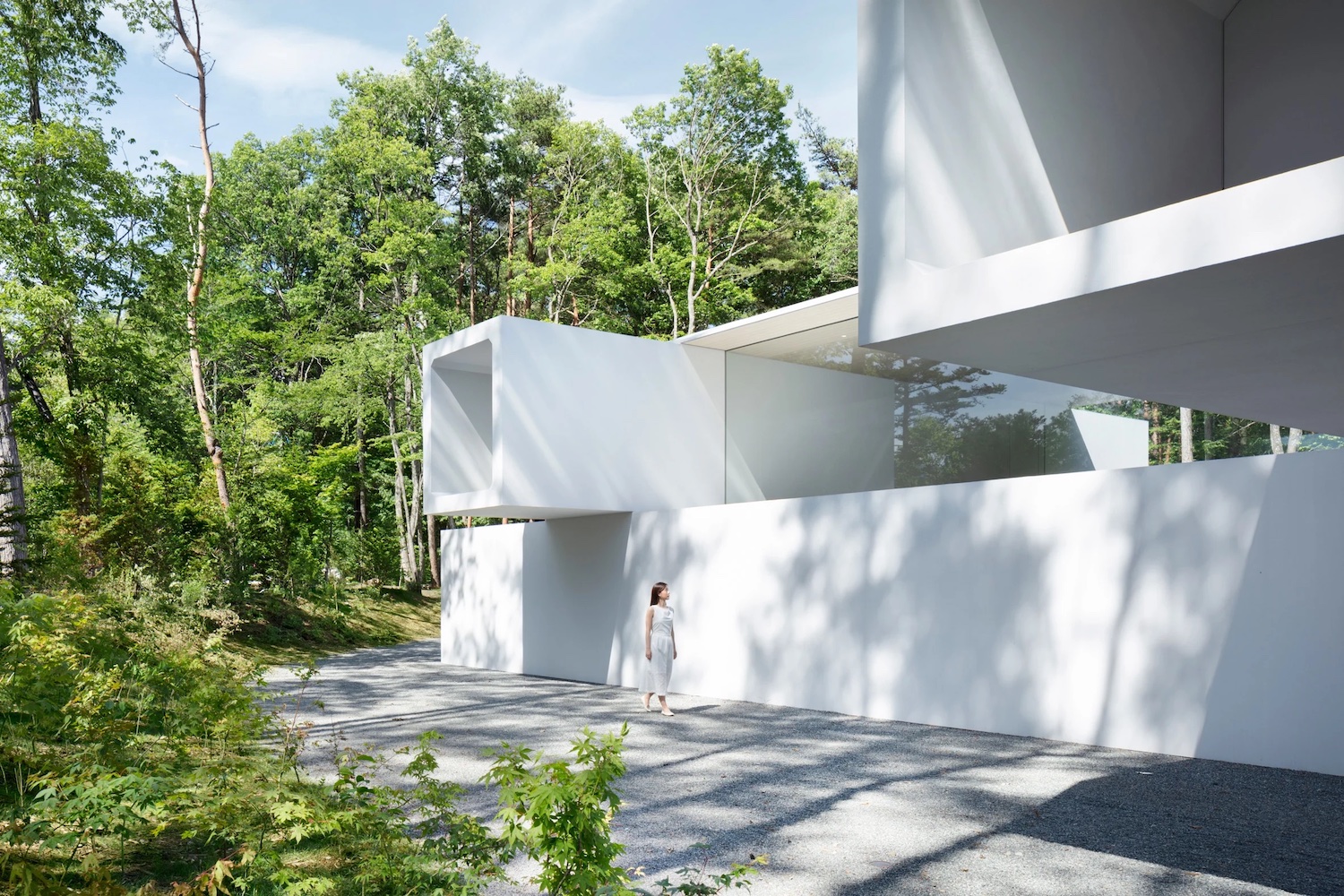

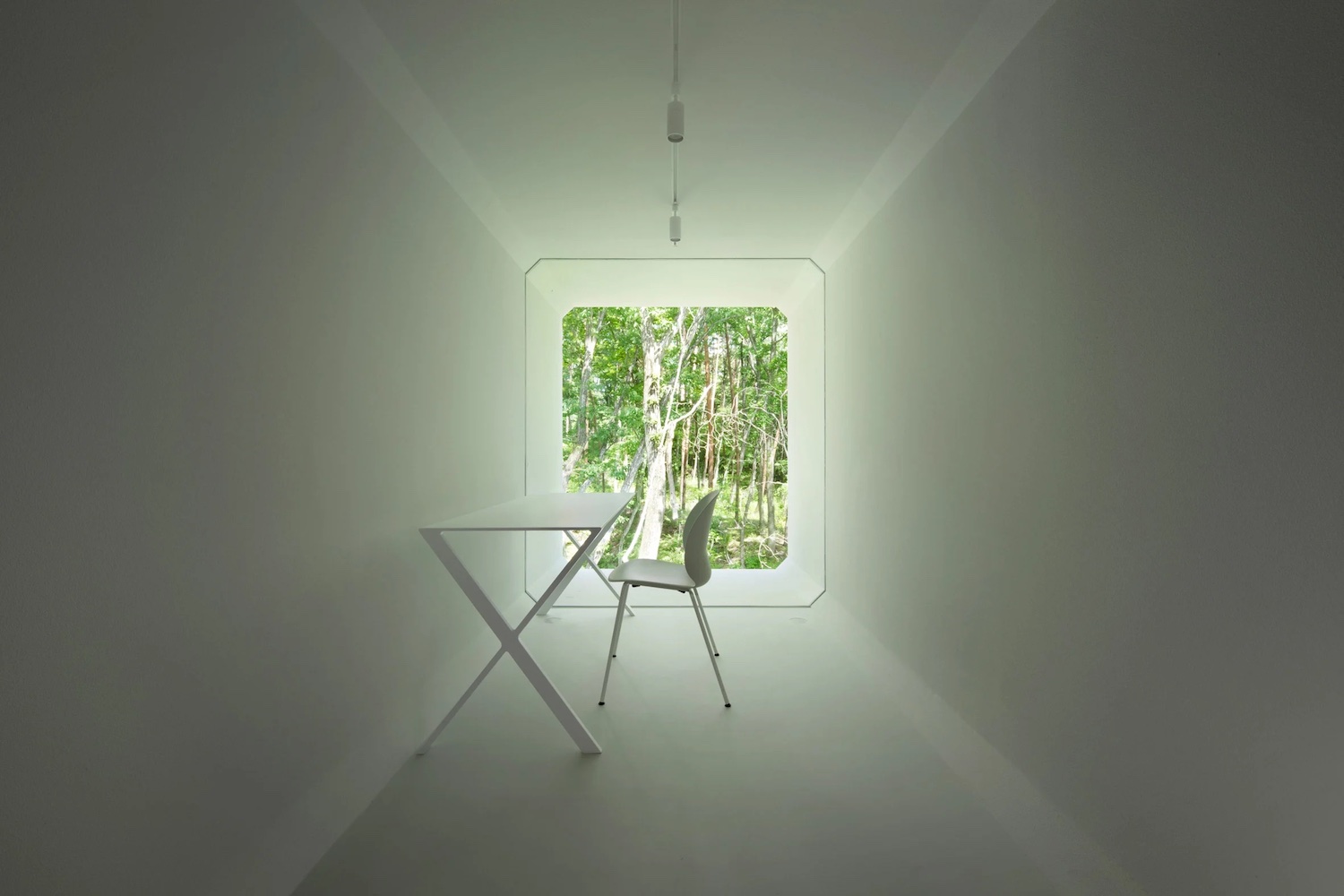

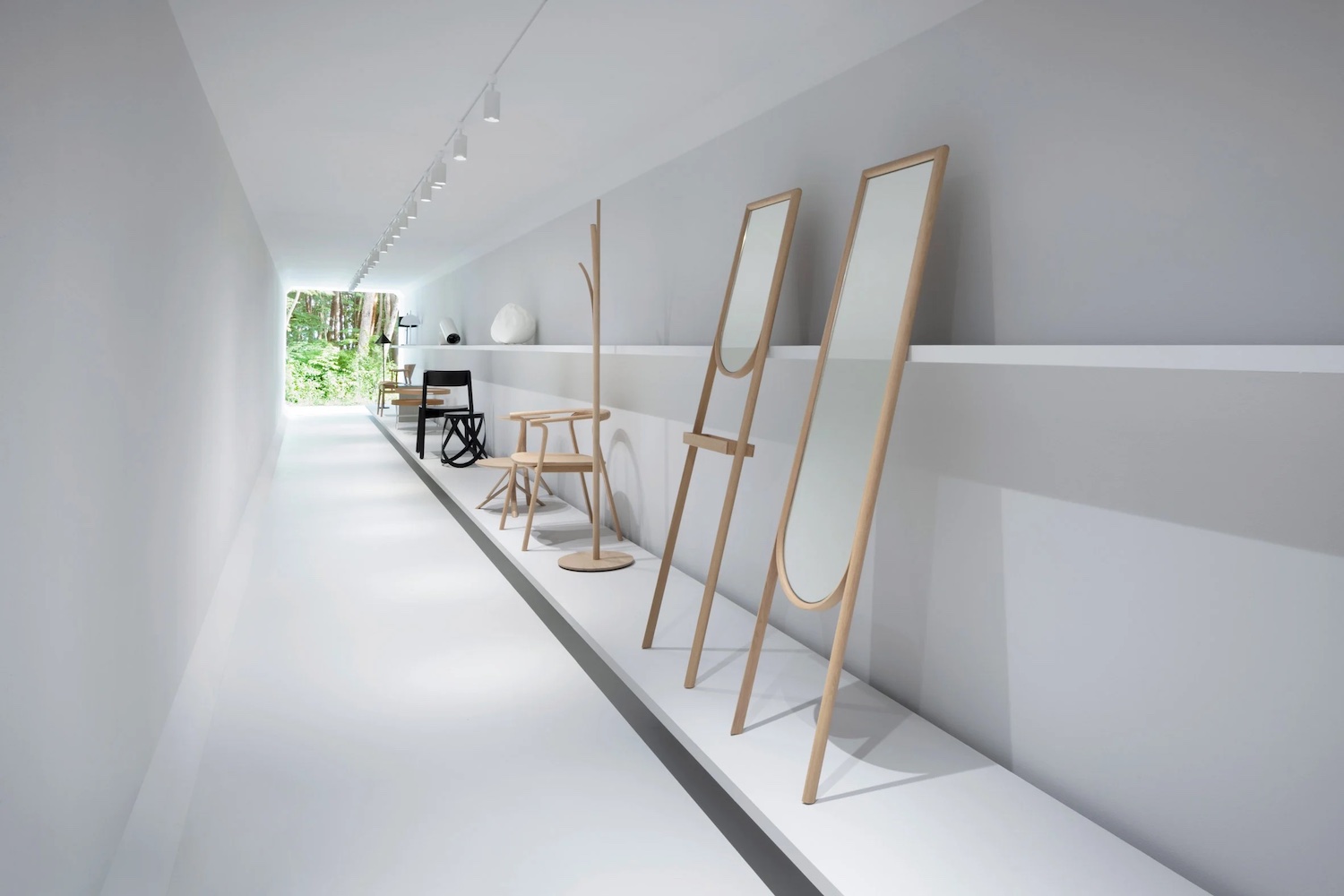

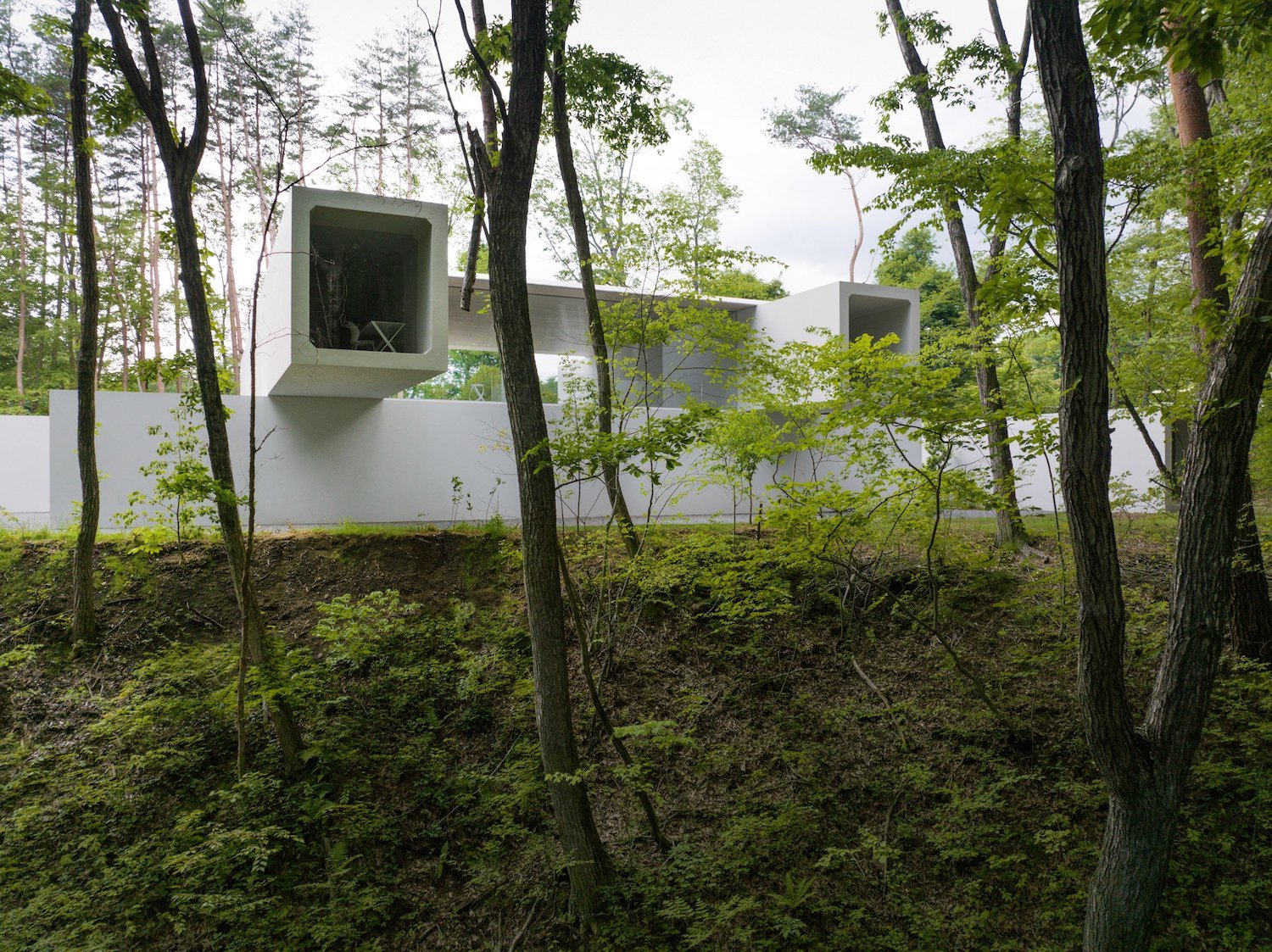

The work involved gradually tightening the wires over time until a tension of 46 tons was finally applied to each. The building is composed of four stacked “tunnels” covered with a roof in the center. In addition to a long, narrow storage room with a depth of approximately 40 meters, there are two smaller storage rooms, but it is envisioned that more will be added to the site in the future as the collection grows. The kitchen, bathroom, toilet, and other water facilities are concentrated on the first floor, and a compact bedroom and a study are located on the second floor. The windows were made without metal frames as much as possible, and high transparency glass measuring up to 10 meters in length was fixed into the grooves in the same manner as shoji screens. The gravel and plantings used in the exterior were also arranged in the interior to draw the outside environment into the interior.

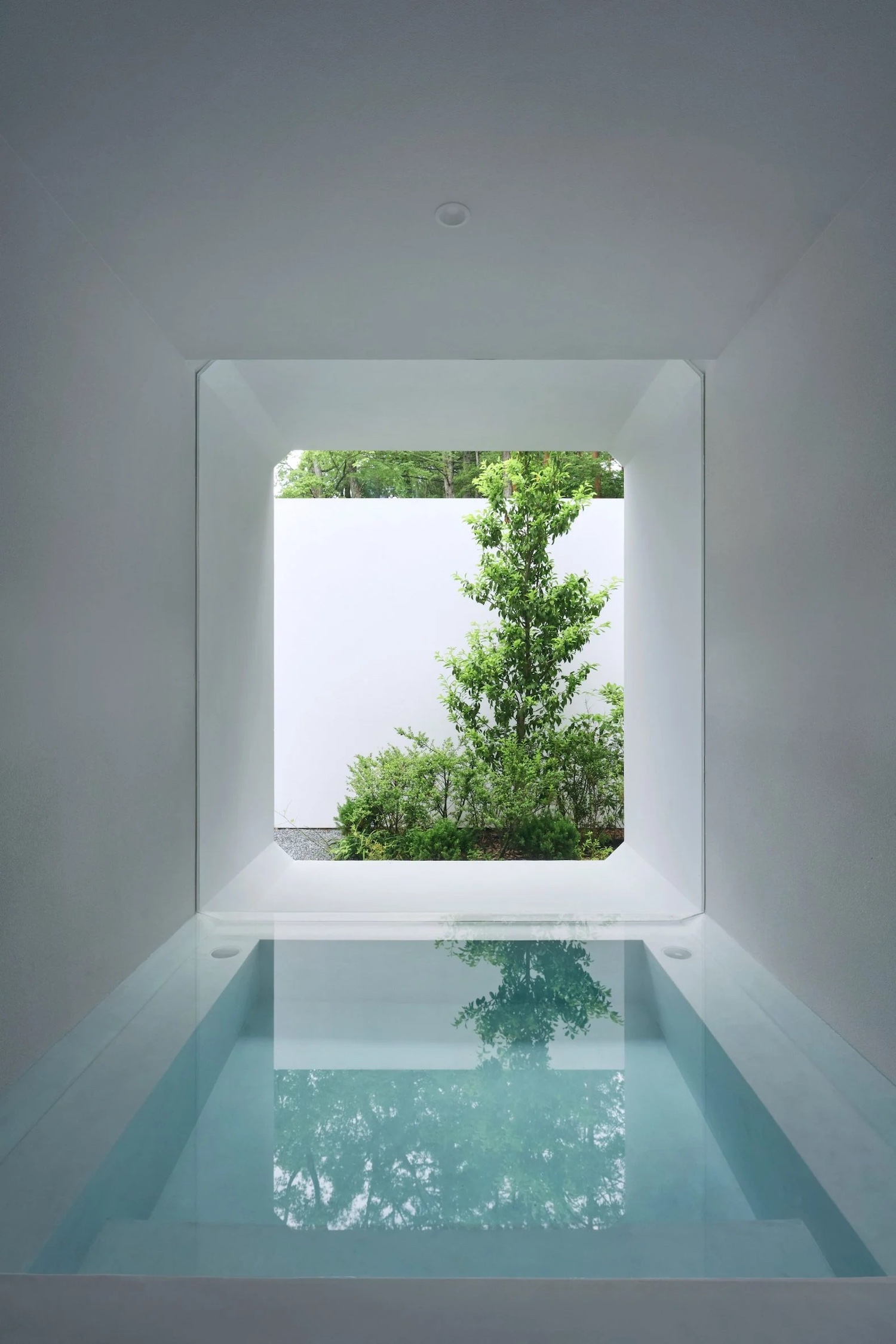

To make it easier to walk on, the gravel was partially hardened with resin. Instead of just pouring resin over the gravel, which is usually the case, the resin was applied to the base first and then gravel was laid on it so that the surface wouldn’t become glossy. In addition, the door handles would have looked abrupt if installed as is, so an original handle was designed, which hides in the small gap between the door and the wall. The bathtub is carved into the floor, such that the water surface aligns with the floor, creating the appearance that the tunnel shape is continuous. The resulting space is less architectural, but rather a project that combines civil engineering concepts with product design details.

Photography by Daici Ano, Takumi Ota
